The crossbeam assembly of the car water tank - what is electrophoretic coating?

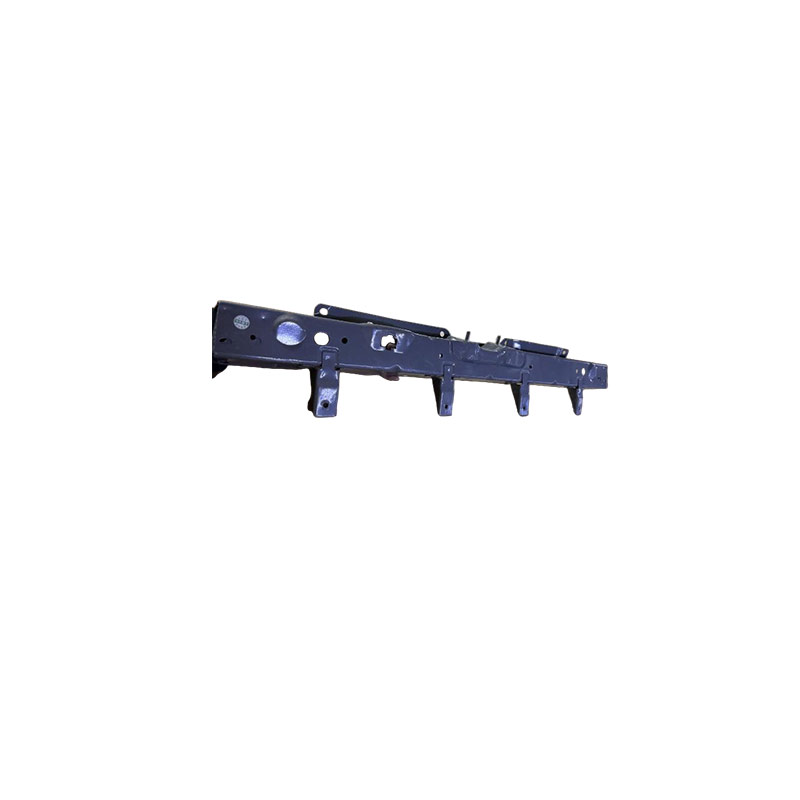

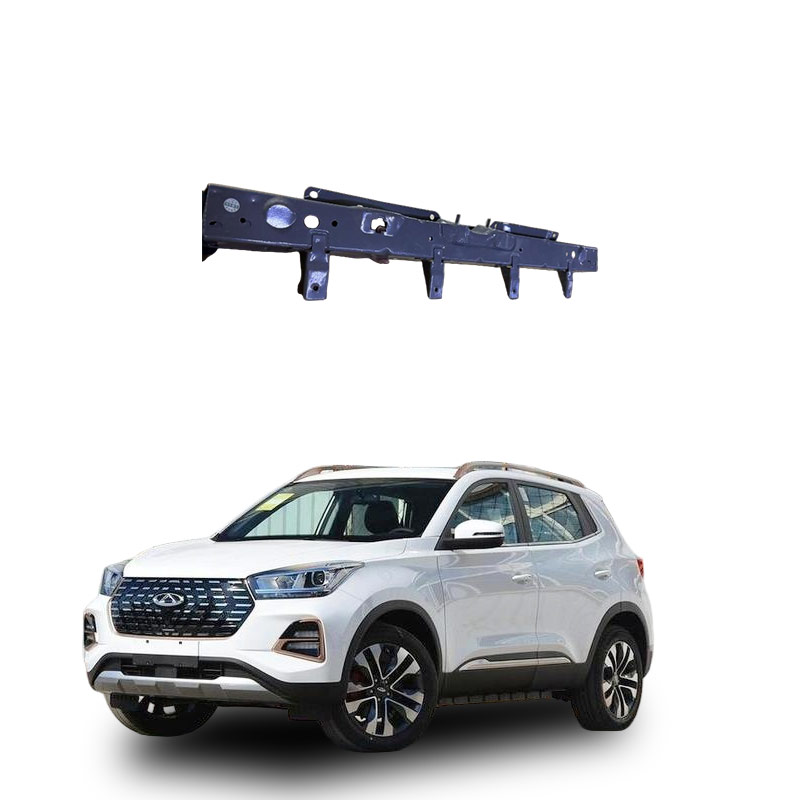

The "Water Box Crossbeam Assembly - Electrocoating" refers to the horizontal load-bearing component (i.e., "Water Box Crossbeam Assembly") used in the front compartment structure of a vehicle to support and fix key components such as the water tank (cooling radiator). This assembly has undergone electrocoating treatment on its surface.
Core Concept Explanation
"Water Box Crossbeam Assembly"
is an important structural component of the front compartment of a vehicle, usually located above the radiator, and horizontally connected to the left and right longitudinal beams or wheel housings. Its main functions include:
Supporting components such as condensers, grilles, headlights, etc. in the front section;
Participating in the transmission of energy during frontal collisions;
Maintaining the geometric accuracy of the front compartment and improving assembly stability and NVH performance.
"Electrocoating (Electrolytic Coating)"
is a metal surface coating process that deposits coating particles on the surface of the workpiece through applying voltage between the workpiece and an electrode. This process has the following characteristics:
Excellent corrosion resistance, especially suitable for areas prone to rusting such as the chassis and structural components of the vehicle;
The coating color is usually black or gray;
The coating layer is uniform, has strong adhesion, and is suitable for complex structural components.
"The meaning of 'Water Box Crossbeam Assembly - Electrocoating'"
refers to the assembly being processed in the electrocoating line for anti-corrosion primer treatment during the welding completion stage of the white body or before final assembly. This ensures:
Good anti-corrosion protection for concealed parts such as internal weld seams and bolt holes;
Avoiding structural strength reduction or abnormal sounds due to rusting in the later stage.
Actual Application Example
The Dongfeng Xiaokang model uses the middle section assembly of the water box crossbeam with the number "5301500-FK01D", clearly marked as "Electrocoating";
The auto parts supplier 110 has for sale the "Water Box Crossbeam Assembly - Electrocoating" for the B11 model, with the code "B11-5300600-DY";
The electrocoating process is usually arranged after welding completion and in the coating workshop to ensure the uniform anti-corrosion of the entire white body (including the water tank frame).
Additional Explanation
If it involves after-sales replacement or repair, it is recommended to choose "original factory specifications or equivalent electrocoating treatment parts" to ensure the anti-corrosion life and structural reliability. Ordinary sprayed parts are prone to rusting in humid, salt spray, or stone impact environments, affecting the safety of the front compartment structure.
Regarding "Faults of Water Box Crossbeam Assembly - Electrocoating", currently, there is no direct mention of the specific term "Electrocoating Fault" in the public information. However, based on common knowledge in the automotive manufacturing and maintenance field, it can be reasonably inferred that its meaning is as follows:
What is "Electrocoating Fault"?
In automotive manufacturing, "Electrocoating" usually refers to "E-coat", a corrosion-resistant process that immerses the vehicle or component in a coating tank and allows the coating to adhere evenly to the metal surface through the action of an electric field. The electrocoating layer has excellent anti-rust and corrosion resistance properties.
Therefore, "Electrocoating Fault" generally refers to:
Incomplete, damaged, bubbling, or peeling of the electrocoating layer;
Or failure of the anti-corrosion layer due to improper pre-treatment, abnormal voltage, or contamination of the coating solution;
In the after-sales scenario, if the water box crossbeam assembly shows abnormal rusting (especially in non-worn areas), it may be attributed by the owner or maintenance personnel as "Electrocoating not done well" or "Electrocoating Fault".
The Relationship between Water Box Crossbeam Assembly and Electrocoating
According to public information:
The water box crossbeam is a key load-bearing structure component of the front compartment, mostly made of high-strength cold-rolled steel sheet, and some original factory parts may undergo "galvanization anti-rust treatment".
If the electrocoating process is not up to standard (such as uneven spraying, insufficient coating thickness, or insufficient baking), this part is prone to rust in humid, salt spray, or stone impact environments.
Some car owners have reported: The replaced water box crossbeam assembly "is rusted inside and out", suspecting that the manufacturer designed it to be easily removable and replaceable for this reason.
Common Manifestations and Impacts If there are any issues related to electrophoretic coating on the crossbeam assembly of the water tank, the following situations may occur:
Local or large-scale rusting, especially in areas with high stress concentration such as bolt holes, bent edges, and weld seams;
Bubble formation and peeling of the coating, exposing the metal substrate;
Potential decrease in structural strength (after long-term rusting);
Affecting appearance, and possibly accelerating the aging of other front cabin components (such as water pipes, wiring harnesses);
Recommendations for handling:
Check the degree of rusting: If it is only a surface coating issue, local sanding and applying anti-rust primer + topcoat can be done;
Confirm if it is within the warranty period: Some brands offer a 6–12-year warranty for vehicle body anti-corrosion (such as Volkswagen, Toyota, etc.), and you can contact the 4S store to assess whether it is a defect in the electrophoretic process;
Replace with original factory parts:优先 choose original factory accessories with complete electrophoretic/dip coating to avoid insufficient corrosion protection of aftermarket parts；
Enhance chassis protection： Regularly apply chassis armor or spray wax for rust prevention， especially in coastal or areas where salt is spread in winter.
If you need to further determine whether it is a manufacturing defect， it is recommended to bring the vehicle to the brand's authorized service center for professional testing. Some manufacturers have specific inspection standards for electrophoretic quality.
