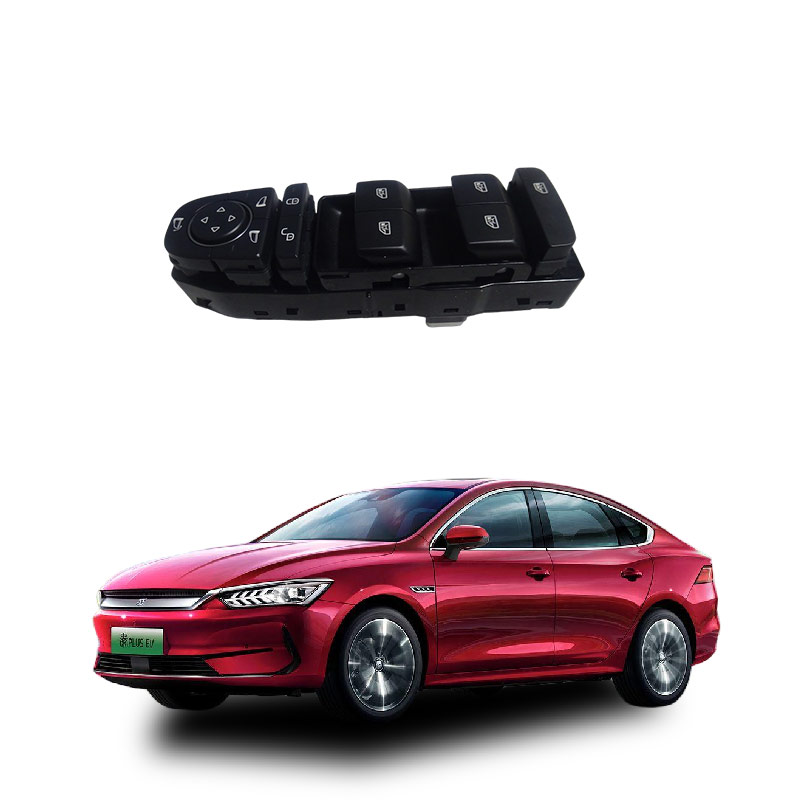

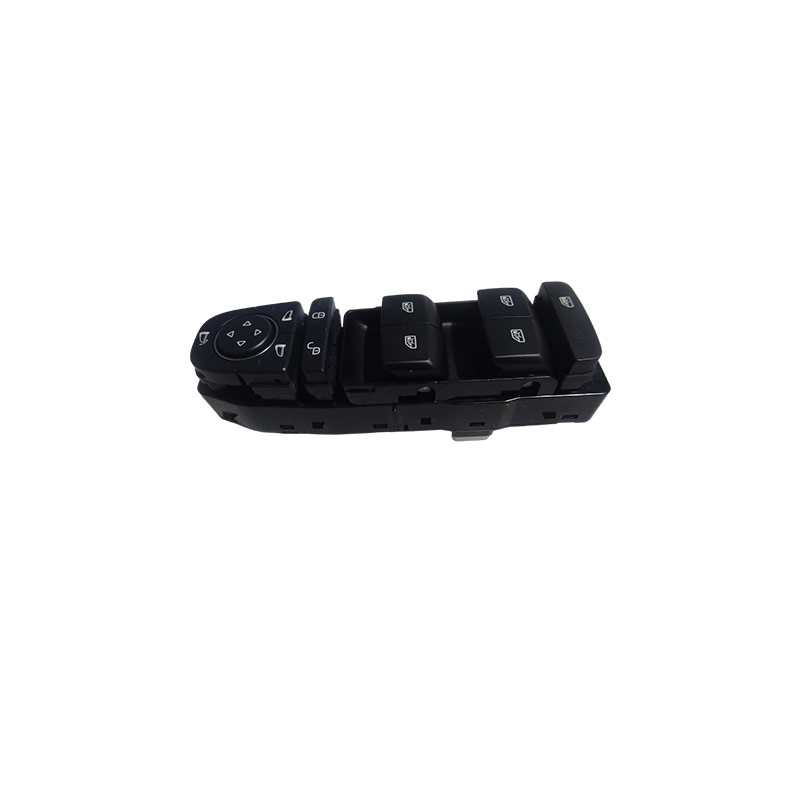

The function of the left front door window adjustment switch assembly in the car
The left front door window adjustment switch assembly is a core input component in the automotive electric window control system. Its main functions are as follows:
Window raising and lowering control: By receiving the driver's pressing command, it transmits the signal to the motor module inside the door, driving the glass lifter to move and achieving the rising or lowering of the window.
Main control function: In most models, the left front door switch assembly not only controls the window on this side but also integrates centralized control for other door windows (such as one-button raising of all windows).
Safety and convenience support: Some models of this switch support advanced functions such as anti-collision function, remote linkage, and automatic window closing after locking.
Environmental adaptability design: The interior usually adopts waterproof and dustproof structures to ensure stable operation in humid and vibrating complex environments. Since the left front door is the position where the driver frequently operates, and it is used frequently, the durability, tactile feedback and response speed of this switch directly affect the driving experience and safety.
The malfunction of the left front door window adjustment switch component is one of the common problems in vehicles. It usually manifests as no response when pressing the switch, inability to raise or lower the window, or malfunction only in a specific direction. According to recent authoritative public information, the possible causes and corresponding solutions are as follows:
Common causes
The copper sheet of the button circuit board loses elasticity: Frequent pressing over a long period leads to deformation or fatigue of the internal conductive copper sheet, preventing normal circuit conduction .
Circuit problems: Including aging of the wiring harness, short circuit, open circuit, or loose connectors, affecting current transmission .
Overheating protection of the motor: Continuous operation of the window for a long time may cause the motor to trigger overheating protection and temporarily stop working .
Excessive resistance in the glass guide groove: Accumulated dust, aging or deformation of the rubber strip in the guide groove increase the resistance during window raising and lowering, making the switch seem "functionally impaired" .
Mechanical faults of the lifting device or motor: Such as wear of the internal gears or chains in the glass lifting device, or damage to the motor coil .
Faults in the control module or system: Some models rely on the door control module, and if the software is abnormal or the hardware fails, it may also cause the window to malfunction .
Preliminary troubleshooting and handling suggestions
Check if it is due to overheating of the motor: Wait for 10–15 minutes for the motor to cool down before trying again .
Clean the glass guide groove: Remove dust and debris from the guide groove and apply special lubricating grease .
Try window initialization (applicable to some models):
Turn on the ignition switch;
Raise the window to the top and keep the switch for 3 seconds or more;
Then lower it to the bottom and keep it for 3 seconds or more, repeat 1–2 times .
Listen and smell to judge: If there is an abnormal sound or a burnt smell when pressing the switch, it may be due to motor damage .
Test other window switches: If only the left front window malfunctions, it is usually a local fault (such as the switch, motor, or guide rail); if the entire vehicle malfunctions, it may involve the main control or power supply issues.
Maintenance suggestions
If the self-check fails, it is recommended to go to a 4S store or professional repair shop for diagnosis.
If the vehicle is within the warranty period, some electronic module faults can be replaced for free . If you need to further locate the fault, you can use a multimeter to test the opening and closing of the switch or the continuity of the circuit. However, non-professional operation carries risks, and it is recommended that it be handled by technicians.
