What is the component for adjusting the rear door window of the car?

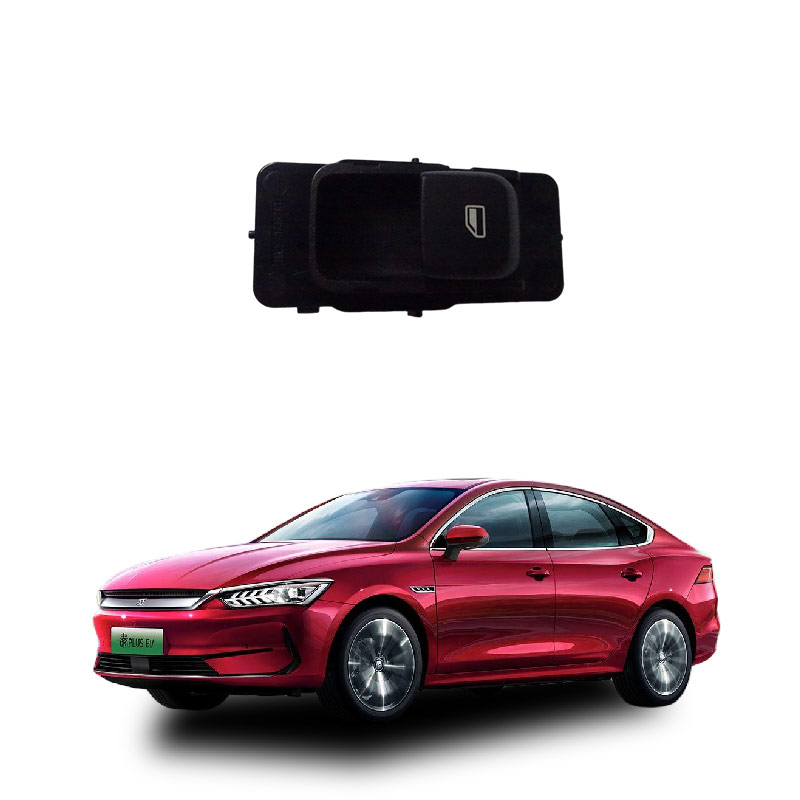

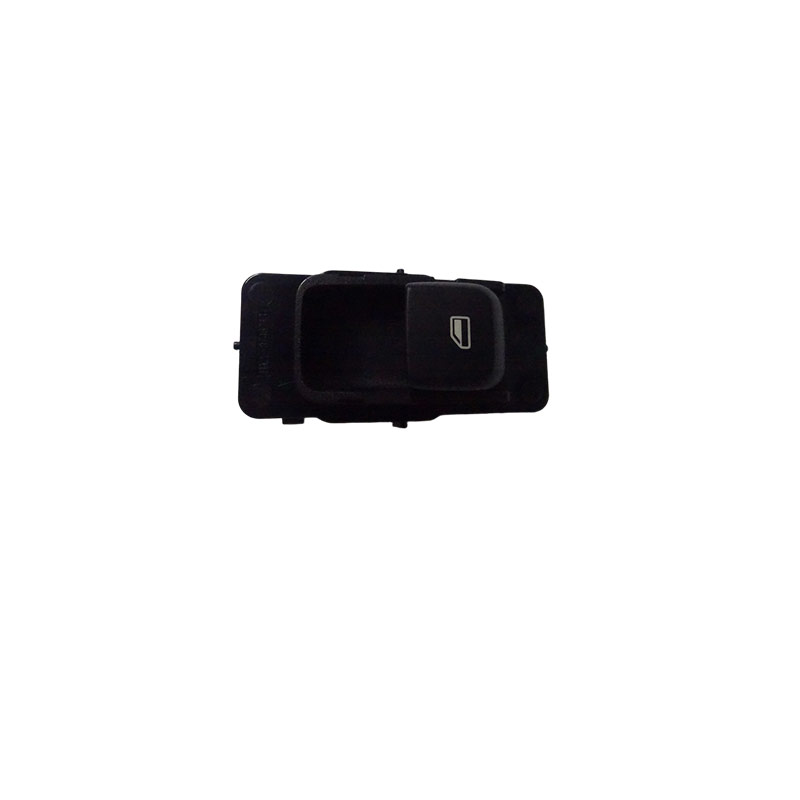

The rear door window adjustment switch assembly, often referred to as the rear door glass lift control switch assembly or rear door window control switch, is a key input component in the vehicle's electric window system used to control the raising and lowering of the rear door glass.
Core Definition and Function
Essence: It belongs to the "command initiating end" in the vehicle's low-voltage electrical system. It does not directly drive the motor but sends commands such as up, down, lock, etc. to the body control module (BCM) through contact closure or electronic signals.
Location: Generally integrated in the rear door handle area. Some models also support centralized control by the driver's seat.
Function: It enables manual raising and lowering of the rear window and functions such as one-button raising (AUTO), enhancing passenger comfort and safety.
Typical Structure and Characteristics
Internal Structure:
PCB circuit board
Conductive rubber or microswitch
Waterproof silicone ring
Latch bracket and matte finish shell
Performance Requirements:
Resistant to high and low temperatures (-40°C ~ 85°C)
Resistant to oil stains and anti-misoperation
Supports high-frequency operation (average 10+ times per day)
Life expectancy of no less than 50,000 presses
Usage Method
Passenger in the rear seat operation: Directly press the switch button on the rear door panel, and move it up/down to control the window opening/closing .
Centralized control by the driver's seat: The driver's door panel usually has four window buttons, with the rear window button located on the right side (from the driver's perspective), and some models also have a child safety lock, which makes the rear door switch when activated .
Special Features：
One-button raising (AUTO)： The button is marked with "AUTO"， and it automatically fully opens/closes when lightly lifted or pressed .
Anti-collision function： Some high-end models integrate the rear door switch， but the rear door switch usually does not independently possess this function .
Common Faults and Maintenance
Typical Problems：
Sticky buttons， weak rebound
Contact failure causing window jamming or malfunction
Slippery in rainy weather， backlight failure
Replacement Suggestions：
Choose the original factory interface direct plug-in assembly， no need to reroute
Note compatibility with vehicle models (such as Japanese micro cars like Yaris， Otto， etc.， prone to aging issues)
The main function of the rear door window adjustment switch assembly is to allow passengers in the rear seat to independently control the raising and lowering of the rear side window， enhancing convenience and comfort. According to public information， its specific functions are as follows：
Independent control of rear window raising and lowering： Passengers can directly operate the window switch to open or close the rear door window， facilitating ventilation， air circulation or wind protection .
Combined with the main control switch operation： Usually works in conjunction with the driver's seat's total control switch， allowing the driver to operate all windows at any time .
Support for safety locking function： When the "window lock button" is pressed， the rear door window adjustment switch will temporarily become ineffective， preventing accidental operation by children or passengers， enhancing driving safety .
Note： Some models (such as Skoda) have rear door switches that only support "local control"， meaning they can only operate the rear window on this side； while the driver's seat's total control switch usually can control all windows .
Common faults and maintenance of the rear door window adjustment switch assembly typically manifest as no response when pressing the window switch， failure in raising and lowering， or failure at specific positions (such as the main control switch). According to recent authoritative automotive repair information， the common causes and troubleshooting methods for such faults are as follows：
Common Causes
Switch itself damaged： Oxidation of contacts， internal wear or rust causing signal transmission failure， especially common in high-humidity areas or older models .
Line connection problem： The wiring between the door and the vehicle body is prone to breakage due to long-term bending， or the plug is loose or has poor contact . Control module initialization data loss: After the battery is disconnected or after maintenance, the window control module needs to relearn the limit positions (raise to the top, hold for 3 seconds, then lower to the bottom).
Anti-cling function triggered incorrectly: Dust accumulation in the glass guide groove and aging of the sealing rubber strip increase friction resistance, triggering the anti-cling protection.
Mechanical failure of the motor or lift mechanism: Such as overheating protection of the motor, wear of the gears, or breakage of the steel wire rope, but usually accompanied by abnormal sounds or non-operation of the motor.
Suggested troubleshooting steps:
Check if the main control switch is enabled for rear window functions: Some models have a "window locking" button, and after closing it, the local switch in the rear is ineffective.
Test if the switch is effective: Use a multimeter to measure the switch's on-off state, or temporarily replace the same type of switch on the left front door to verify.
Check the fuse and power supply: Confirm that the fuse corresponding to the window is not blown, and the circuit is not open.
Perform window initialization reset:
Turn on the ignition switch;
Pull up the switch to raise the glass to the top, continue holding for more than 3 seconds;
Release and immediately press the switch to lower the glass to the bottom, hold for more than 3 seconds;
Repeat the upward movement once again.
Clean and lubricate the guide rails and rubber strips: Use a damp cloth to clean foreign objects in the glass guide groove, spray car wax or apply talcum powder to reduce friction.
If the above steps are ineffective, it is recommended to seek professional diagnosis: It may involve faults in the door control unit (such as BCM), motor, or lift mechanism assembly, and a diagnostic tool is needed to read the fault codes.
If the vehicle is a German brand such as Volkswagen or Skoda (such as Passat, Swift), and there has been a power outage or maintenance history recently, it is very likely that the parameters of the window control unit have been lost, and professional equipment such as ODIS-E is needed to re-match.
