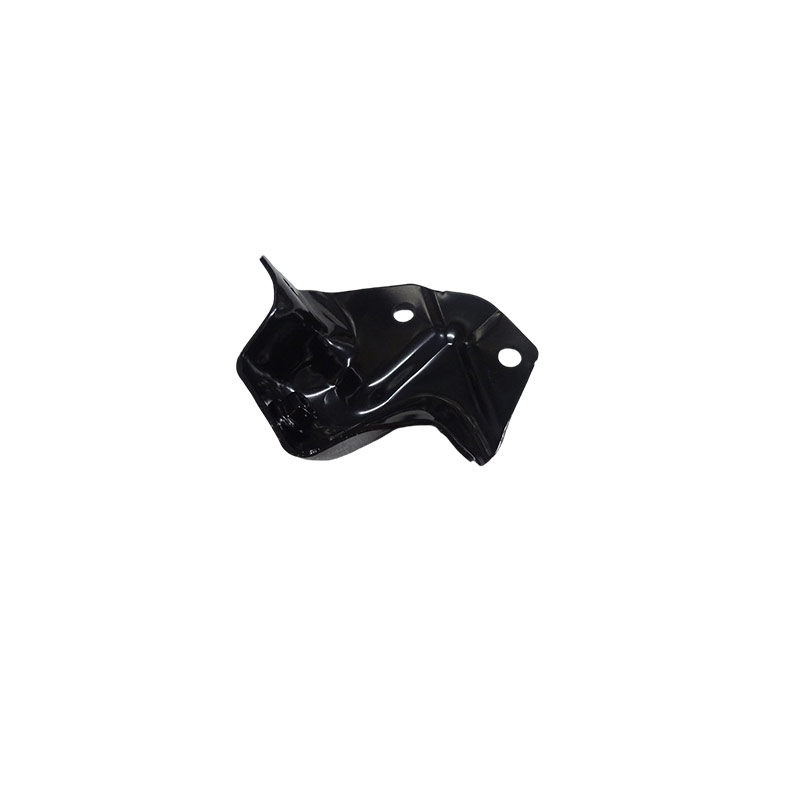

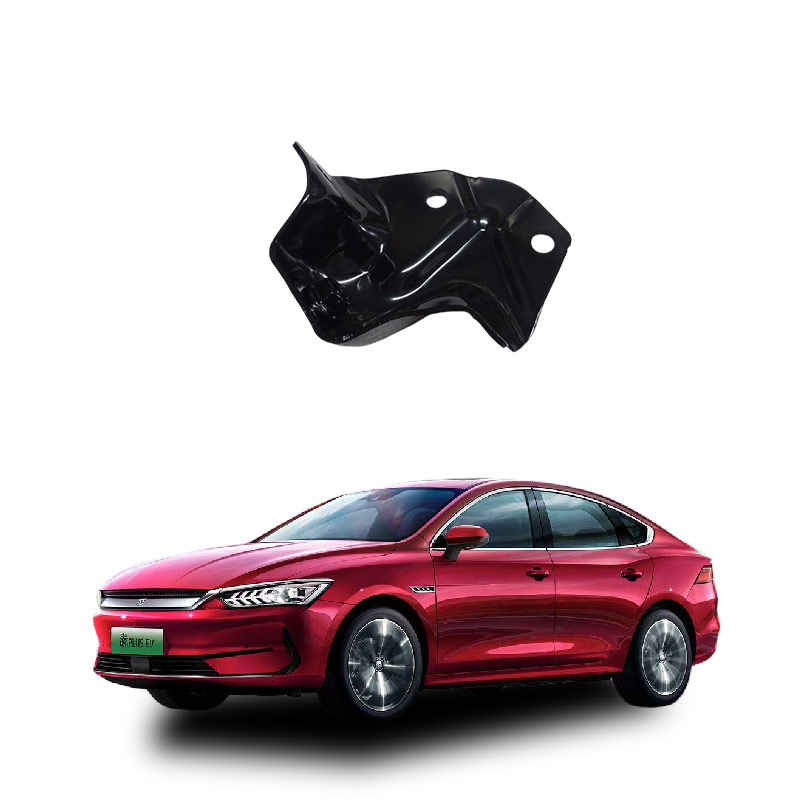

The function of the right rear mounting bracket for the battery pack of BYD vehicles
The main function of the right rear mounting support for the battery pack of BYD vehicles is to fix and support the battery pack, ensuring its stable installation on the vehicle chassis. Based on public information, the specific functions can be summarized as follows:
Physical fixation: As a connecting component between the battery pack and the vehicle body structure, the support is installed on the vehicle body by bolts or other fastening methods, ensuring the reliable installation of the battery pack and preventing displacement due to vibration or impact during driving.
Structural support: It provides local load-bearing support in the right rear area of the battery pack, which helps to distribute the weight of the battery pack and reduce local stress on the vehicle body, thereby enhancing the overall structural rigidity.
Cooperation with CTB technology: Taking BYD models such as the Sealion as an example, with the CTB (Cell to Body) technology, the upper cover of the battery pack is integrated with the vehicle floor, and the support in this structure also plays a key role in coordinating the integrated connection between the battery pack and the vehicle body.
Improvement of reusability and compatibility: BYD has applied for relevant patents, indicating that its installation bracket design focuses on the cooperation with common installation beams to adapt to different-sized battery packs, thereby improving the reusability of components and production efficiency. In conclusion, the rear right mounting bracket is not merely a simple fixing component; rather, it is an essential part that enables the battery pack to be safely, stably, and efficiently integrated into the vehicle structure.
Regarding the question "Can the right rear mounting support for the BYD car battery pack be installed?", based on the current publicly available information, it can be installed, but a comprehensive judgment needs to be made considering the specific vehicle model, purpose, and installation method.
Analysis of Installation Feasibility
There is clear accessory support: The Shagang Parts Network provides a dedicated accessory named "Right Battery Pack Fixed Bracket (S11111004AA)", which is suitable for some heavy-duty vehicle models. This indicates that there is a standardized scheme for right rear battery pack installation on commercial vehicles or specific platforms.
BYD has obtained relevant patents: In February 2025, BYD applied for and was granted the patent "Battery Pack Installation Bracket, Vehicle Body Structure, and Vehicle" (CN223702278U), clearly stating that the bracket can be combined with the vehicle body installation beam to fix large-sized battery packs, indicating that it supports expansion installation at positions such as the right rear in the design level.
There are actual modification cases: Some car owners have added protective plates or auxiliary brackets to the chassis to enhance battery protection. Although this is not directly equivalent to the "right rear installation support", it indicates that there is a practical demand and technical feasibility for adding additional fixation structures for the battery pack. Notes for Attention
Key to Model Compatibility: Different BYD models (such as Dolphin, Han, Tang, Seagull, etc.) have significant differences in battery pack layout and installation points. It is necessary to confirm whether the purchased model has reserved or is compatible with the right rear mounting bracket interface.
Suggestion for Professional Operation: If there are tasks such as drilling holes, wiring, or structural modifications, self-installation may affect battery safety or vehicle warranty; non-original factory modifications carry risks.
Necessity Assessment: If the daily driving conditions are good (on urban paved roads), the original factory battery pack protection is already quite sufficient, and adding a mounting bracket is less necessary; if the vehicle often travels on rough roads, in mountainous areas, or has heavy load requirements, then consideration can be given to it. Conclusion
The right rear mounting bracket for the BYD car battery pack can be installed, but the prerequisite is:
Confirm that the vehicle model has compatible original factory or certified aftermarket parts;
The installation process should be carried out by a professional institution to avoid damaging the battery pack or the vehicle structure;
Evaluate the necessity based on the actual driving scenario.
Regarding the "fault of the right rear mounting bracket for the BYD car battery pack", there are currently no direct case or repair records of this specific part in the public information. However, by combining the common failure modes of battery packs in electric vehicles and the repair cases of BYD related models, the following aspects can be analyzed and addressed:
Possible cause analysis:
Mechanical structure damage: If the right rear mounting bracket becomes loose, deformed or broken, it may cause the battery pack to be unstable in its fixation, resulting in abnormal sounds, increased vibration, and even affecting the safety of high-voltage connections.
Sealing or protection failure: Damage to the mounting bracket may disrupt the bottom sealing of the battery pack, increasing the risks of water immersion, corrosion, or foreign object intrusion (especially in humid or rainy areas).
Indirectly related high-voltage system failure: Some battery pack failures (such as abnormal contactors, oxidation of pins) may stem from abnormal force on the plug or wiring, and a loose mounting bracket may cause the wiring to be constantly pulled, indirectly triggering high-voltage interlock or communication problems.
Suggested handling steps:
Immediate parking inspection:
Observe if there are any obvious signs of (knock)， deformation or leakage on the bottom of the battery pack.
Check if the bolts in the right rear bracket area are loose and if the bracket is cracked.
Avoid continuing to drive.
The failure of the battery pack fixation poses safety risks， especially in high-speed or bumpy road conditions， which may lead to more serious consequences.
Contact the BYD authorized service center：
Reserve a professional inspection through the official channel and use the VDS diagnostic instrument to read the fault codes related to the battery management system (BMS).
If the vehicle is still within the warranty period (typically for 8 years or 160，000 kilometers)， you can apply for free repair or replacement.
Keep the maintenance record.
This is useful for subsequent warranty claims or used car evaluations， especially for high-voltage system components.
Preventive suggestions：
Regularly check the condition of the battery pack mounting bracket and surrounding guard plates， especially after passing through potholes.
Avoid driving at low speed through complex road conditions for a long time to reduce the impact on the bottom of the battery pack.
