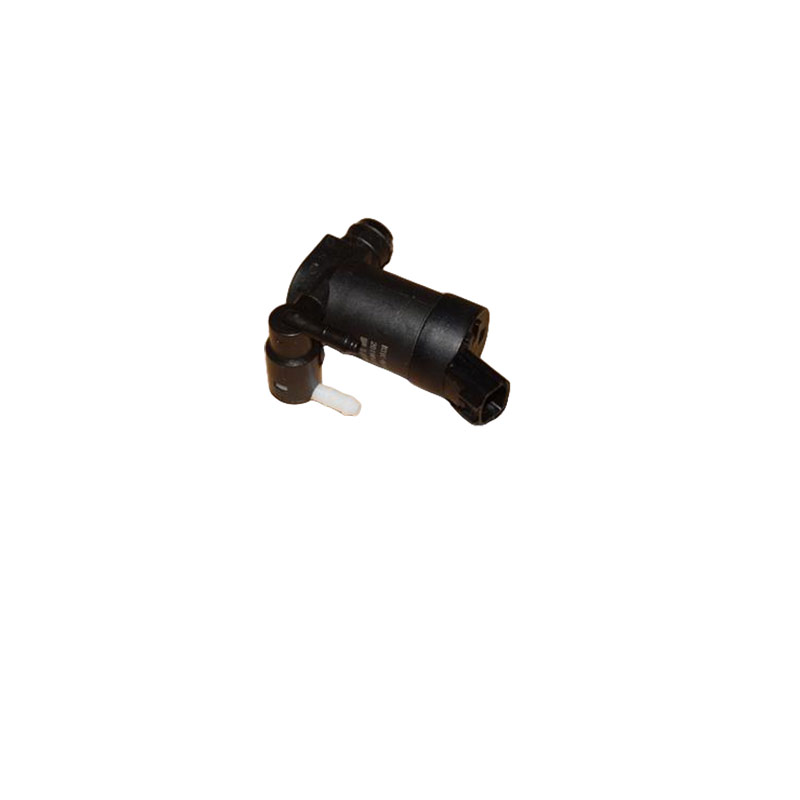

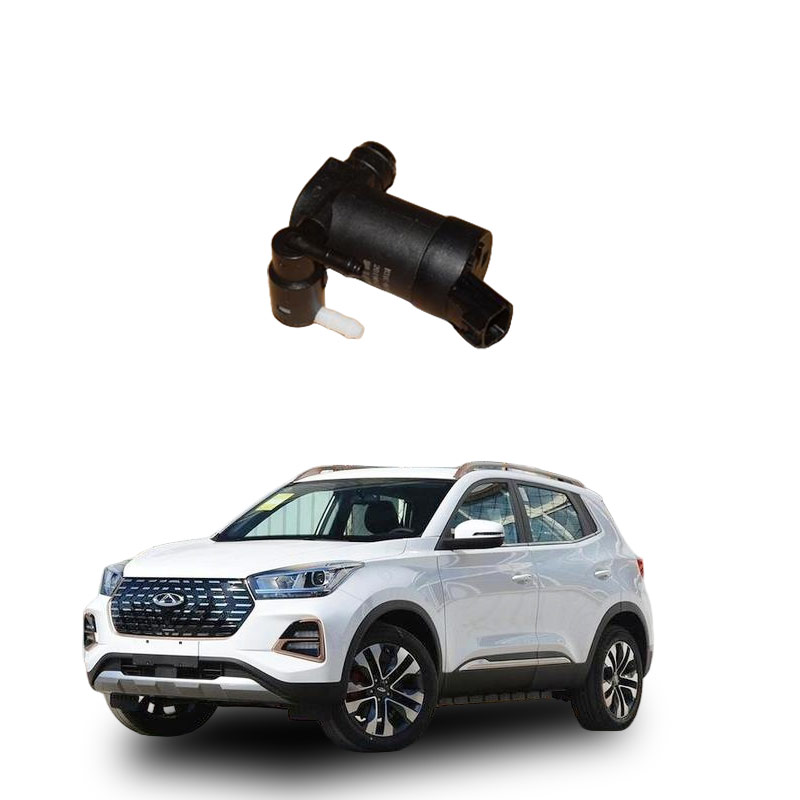

What is an automotive washing pump?
The car washing pump is the core component of the car windshield washing system, responsible for pressurizing the glass water from the water storage tank and delivering it to the nozzles.
Structure: It is usually composed of a permanent magnet DC motor and a pump body (centrifugal or gear type), and is generally directly installed on the top or bottom of the water storage tank.
Working principle: After the driver triggers the switch, the motor drives the pump body to rotate and generate pressure (about 70-88 kPa), which then sprays the washing liquid through the pipeline onto the windshield or headlights.
Main functions: It cooperates with the wiper to clean the glass surface of dirt, maintaining a clear driving view, and some models support headlight cleaning.
The function of the car washing pump is to extract and pressurize the glass water from the water storage tank, deliver it to the nozzle through the pipeline, and spray it evenly onto the windshield (or external mirrors such as headlights) to soften the dirt and facilitate the wiper's scraping.
According to authoritative public information, its core functions and features are as follows:
Core function:
Extract and pressurize the glass water, deliver it to the nozzle through the water supply pipe, form a fine jet to spray onto the glass surface, soften the dirt, and facilitate the wiper's scraping.
In some models, this system is also used to clean external mirrors such as headlights .
System composition:
It is usually composed of a micro motor + centrifugal pump/gear pump, and is installed at the bottom of the water storage tank .
The working voltage is generally 12V DC, with a continuous working time of no more than 1 minute to avoid overheating damage .
Safety linkage design:
Most vehicles adopt linkage control: After pressing the water spraying button, the wiper will automatically start several times (usually 3-5 times) to prevent dry scraping from damaging the glass .
Notes:
It is necessary to use dedicated glass water; tap water is prone to scaling and clogging the nozzle or freezing and cracking the pipeline .
If there are problems such as weak water spraying, single-sided no water spraying, intermittent failure, etc., it may be due to pump body aging, pipeline leakage or nozzle blockage, and timely maintenance is required .
Note distinction:
"Washing pump" may refer to different components in different contexts.
Windshield washing pump: Used to clean the windshield, a regular configuration .
Wash pump (EVAP system): Used for the fuel evaporation control system, related to emissions . This answer focuses on the washing pump used for the front windshield cleaning, as it is the most common and directly related to driving safety.
The failure of the car washing pump (also known as the windshield washer pump) can cause the windshield cleaning function to fail, affecting the safety of the driving view. According to the current public information and combined with common fault phenomena, the following steps can be followed to troubleshoot and handle the issue:
Common Fault Causes and Corresponding Solutions
Water tank is low on water
Check the liquid level of the windshield washer fluid reservoir. If it is below the minimum mark, replenish the appropriate seasonal windshield washer fluid (winter requires anti-freezing type).
Nozzle clogged
Nozzle blockage by dust, sand, or scale is a common problem. Use a fine iron wire, needle, or compressed air to carefully clean the nozzle and adjust its orientation to the appropriate angle.
Connection problem of the water pipe
Check if the soft pipe from the washing pump to the nozzle is loose, aged, broken, or leaking. If there is looseness, reinsert it tightly; if damaged, replace the new pipe.
Fault of the washing pump itself
If there is no slight buzzing sound when pressing the washing switch, it may be due to motor damage or circuit failure. At this time, it is recommended to go to a professional repair station for testing. Usually, a complete replacement is required.
Winter windshield washer fluid freezes
In cold regions, if non-anti-freezing windshield washer fluid is used or the added amount is too much, freezing may clog the pipes or damage the pump body. Replace with -20℃ or lower anti-freezing grade windshield washer fluid and avoid overfilling.
Power supply or fuse problem
Check if the relevant fuses in the vehicle are blown (usually located in the engine compartment or the driver's side fuse box), and if the power supply line for the washing pump is normal.
Suggested Operating Procedure
First, confirm if there is a water shortage → replenish the windshield washer fluid;
Try the washing and listen for sounds → audible but no water, mostly nozzle or pipe problem; silent may indicate pump or circuit failure;
Clean the nozzle and check the pipe → simple tools can handle it;
If the above methods are ineffective and not in the case of winter freezing → it is recommended to contact a professional repair agency to diagnose whether the washing pump is damaged.
Note: It is difficult to disassemble the washing pump by oneself, and most vehicle models are integrated designs. Non-professionals are not recommended to forcibly disassemble and repair it to avoid causing more damage.
If further fault location is needed, you can use an OBD diagnostic tool to read the data stream of the vehicle's body control module (BCM). Some models can directly report the fault code of the washing pump.
