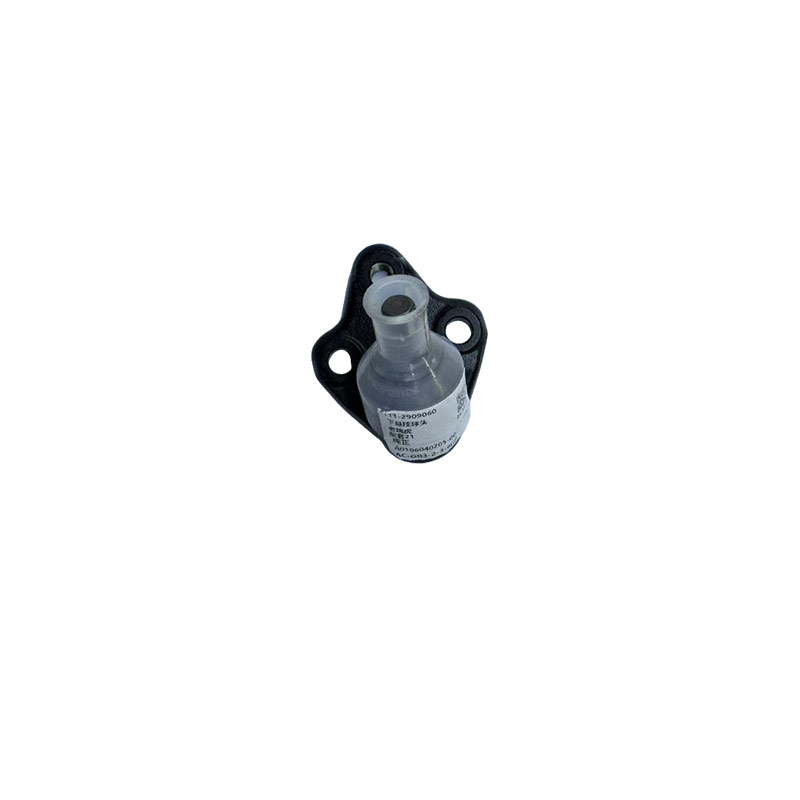

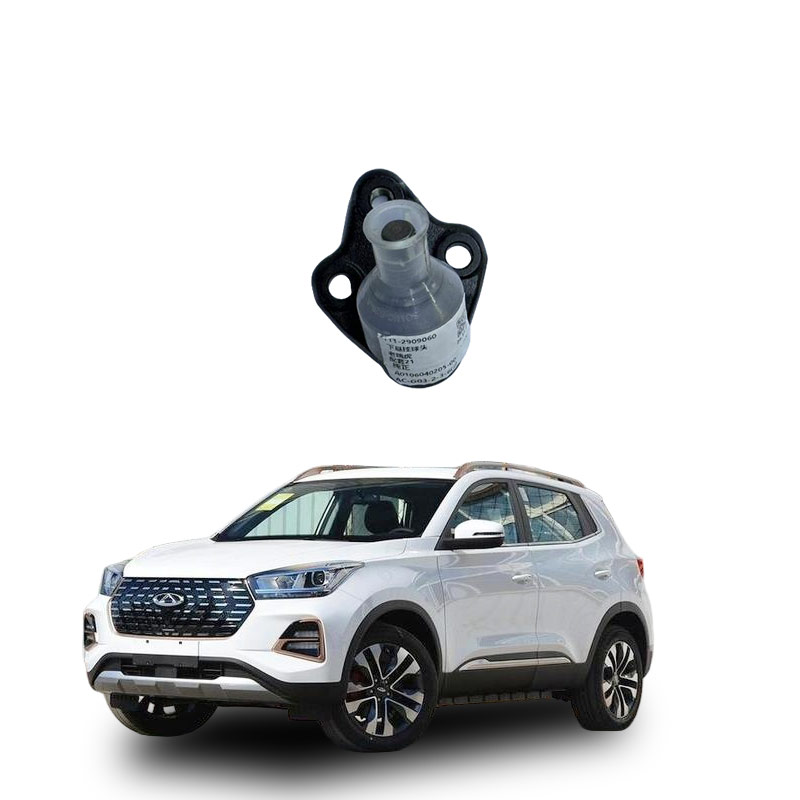

The function of the ball stud assembly of the car control arm
The ball joint assembly of the vehicle control arm is a crucial connecting component in the suspension system. Its main functions can be summarized as follows:
Achieving multi-degree-of-freedom movement: Through the ball hinge structure, it allows the wheels to bounce vertically (to adapt to uneven road surfaces) while supporting steering movements, ensuring that the wheels move along the predetermined trajectory.
Transferring forces and torques: It transfers the longitudinal, lateral, and vertical forces and torques exerted by the wheels to the vehicle body, maintaining the stability of the chassis structure.
Reducing vibrations and enhancing comfort: Working in conjunction with the bushings, it absorbs and attenuates the impacts from the road surface, improving the comfort of the ride.
Ensuring precise steering and stability: As the connection point of the steering mechanism, it provides multi-angle rotation capabilities, making the steering smooth and reducing the shaking or deviation of the direction at high speeds.
Maintaining wheel alignment parameters: It ensures the accurate geometric relationship between the wheels and the vehicle body, avoiding abnormal tire wear or degradation of handling performance due to deformation.
If the ball joint assembly is damaged, the following symptoms may occur:
It is recommended to regularly check if the dust cover is damaged and if the ball joint is loose or has gaps. If necessary， manually shake the wheels while lifting the vehicle to determine the wear condition.
The general lifespan of the control arm assembly (including the ball joint) is approximately 80，000 to 250，000 kilometers， depending on the road conditions and usage habits.
The ball joint assembly of the vehicle control arm is a key component connecting the suspension system and the steering system. If it fails， it will directly affect the vehicle's handling， stability， and driving safety. According to the latest publicly available information (as of May 2026)， the common symptoms， causes， and handling methods of its failures are as follows：
Main failure symptoms
Obvious abnormal noise： When driving over bumpy roads， turning， or braking， the chassis emits metallic impact sounds or frictional noises such as "clack," "click," or "bang" .
Abnormal steering
High-speed driving with shaking or "drifting" ；
Increased steering clearance， difficulty in returning to center， heavy steering or "stuck" ；
Vehicle drifting， requiring continuous force to correct the direction .
Abnormal tire wear ： Single-sided wear， zigzag wear， or local uneven wear， with accelerated wear rate .
Decreased handling stability ： Obvious side roll during cornering， "loose" vehicle body， "sitting on a boat" feeling .
Damaged dust cover ： Visible obvious cracks， oil leakage， or oil mud adhesion， resulting in accelerated wear due to loss of lubricating grease .
Common failure causes
Normal wear ： The ball joint and seat sleeve， as well as the bushing， naturally wear with increasing use .
Dust cover damage ： Leading to leakage of lubricating grease and dust intrusion， accelerating internal wear .
Improper installation or impact from external forces ： Such as bottoming out or hitting the shoulder， causing deformation or fracture .
Material or process defects ： Such as the ball joint coating peeling， resulting in abnormal wear .
Poor driving habits or long-term driving in harsh conditions .
Handling suggestions
Initial self-check ：
Top the vehicle， and shake the tires with your hand to feel if there is any obvious looseness or slack ；
Check if the dust cover of the ball joint is cracked or leaking oil ；
Observe if the tires show abnormal wear .
Maintenance plan ：
If only the dust cover is damaged， a replacement of the dust cover and replenishment of lubricating grease can be performed ；
If the ball joint body is worn， has gaps， or is loose， it is recommended to replace the entire control arm assembly instead of just the ball joint (as the assembly structure is integrated， replacing the ball joint alone has low reliability) ；
After replacement ： Must re-perform four-wheel alignment to avoid abnormal tire wear and drifting .
Preventive measures Regularly inspect the suspension system, especially after driving over bumpy roads;
Avoid driving at high speed through bumpy sections for long periods;
Maintain good driving habits.
Safety reminder: Severe damage to the control arm ball joint may cause the wheel support to fail, leading to loss of control of the direction. Do not drive with faults. If you notice any of the above symptoms, go to a professional repair facility (such as a 4S store or a reputable fast repair shop) for diagnosis and replacement as soon as possible.
