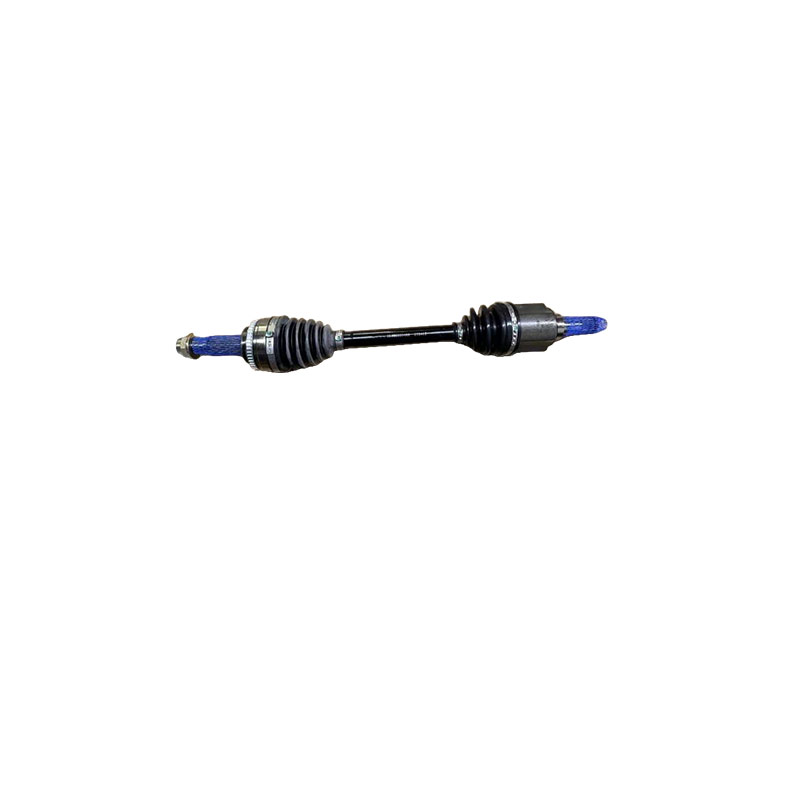

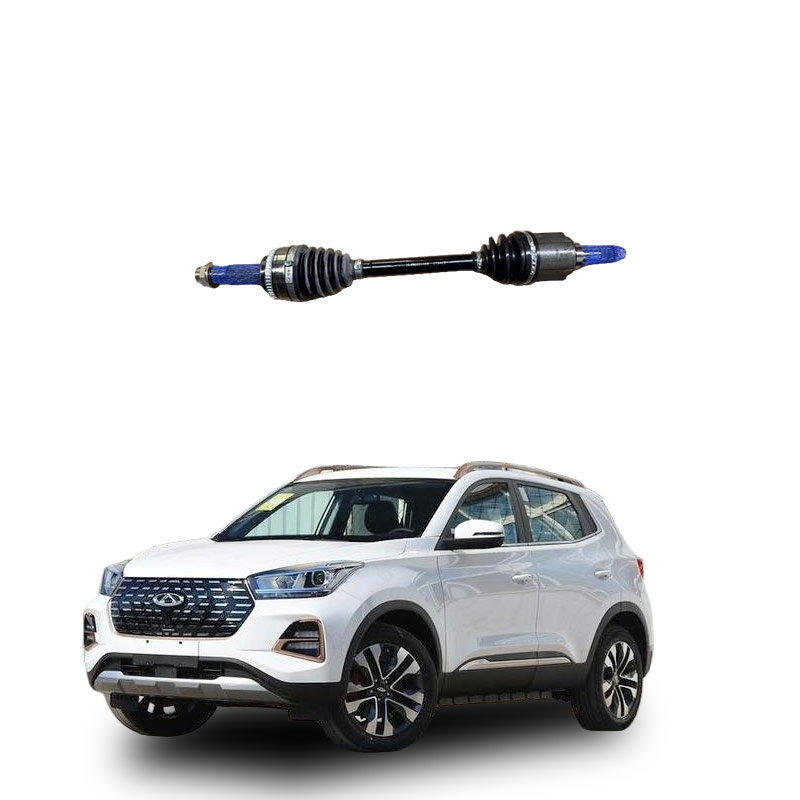

What is the left constant-speed drive shaft assembly of the car?
The left constant-speed drive shaft assembly, often referred to as the left half shaft assembly or the left constant-speed drive shaft assembly, is a key component in the vehicle's transmission system that is specifically designed to transfer power from the transmission (or differential) to the left driving wheel.
Core Definition and Function
Essentially: It is a part of the drive shaft assembly (also known as the half shaft), referring to the left one of the vehicle.
Core Function: In front-wheel drive (FF) or four-wheel drive (4WD) vehicles, it smoothly transmits the power output from the engine through the transmission and differential to the left wheels, enabling the vehicle to move.
Key Characteristics:
Uses an equal-speed universal joint (CV Joint), ensuring that the torque is continuously transmitted at a constant angular speed even when the wheels turn, the suspension jolts, etc., avoiding power interruption or shaking.
Usually includes components such as the outer ball cage (near the wheel end), the inner ball cage (near the transmission end), the intermediate shaft, the dust cover, and the clamp.
Structural Composition (Typical Ball Cage Type)
Outer Ball Cage (Fixed or Mobile End): Connects the hub and bears the changes in the steering angle.
Inner Ball Cage: Connects the output gear of the differential and can axially slide to adapt to the suspension movement.
Intermediate Shaft (Half Shaft Rod): Connects the inner and outer ball cages and transmits torque.
Dust Cover: Seals the lubricating grease to prevent dust and moisture from entering.
Clamp: Fixes the ends of the dust cover.
Application Vehicles and Positions
Commonly found in: Front-wheel drive (such as Volkswagen Polo, Toyota Corolla), front-wheel drive with four-wheel drive (such as Subaru Forester), etc.
"Left" Side Definition: According to the driver's perspective, it is the left drive shaft assembly of the vehicle.
Fault Manifestations (Indicating the Need for Inspection or Replacement)
A "clicking" noise occurs during steering (especially at low speeds);
The vehicle shakes during acceleration;
The steering is not responsive or the handling is loose;
The dust cover is damaged, leaking oil or bulging.
The constant-speed drive shaft assembly is a safety component. Once it fails, it can directly cause power interruption. It is recommended to conduct regular checks and replace it in time if any abnormalities are detected.
The left constant-speed drive shaft assembly (full name: left constant-speed universal joint drive shaft assembly) is a key component in the transmission system of front-wheel drive or four-wheel drive vehicles. Its main function is to smoothly transfer the power output from the transmission to the left driving wheel, enabling the vehicle to move forward or backward.
Main Function
Transmit Power: Reliably transfer the power output from the transmission to the left driving wheel, enabling the vehicle to move forward or backward.
Adapt to Angle Changes: Automatically compensates for the angle and axial displacement between the two shafts when the vehicle turns (front wheels deviate) or encounters bumps (suspension up and down movement) to ensure continuous power transmission.
Maintain Constant Speed Operation: Through the internal ball cage structure (outer ball, inner ball, steel balls, cage, etc.), the input shaft and output shaft maintain an always equal instantaneous angular speed, avoiding the speed fluctuations, shaking or abnormal noises caused by ordinary universal joints.
Improve Handling and Comfort: Especially in curves and on complex road conditions, it ensures precise steering and smooth driving, reducing vibration and noise.
Typical Application Scenarios
Front-wheel drive vehicles: The left front drive shaft is the constant-speed drive shaft assembly, having both driving and steering functions.
Four-wheel drive vehicles: The front and rear axles may both be equipped with constant-speed drive shafts for power distribution.
Independent suspension rear-wheel drive vehicles: The rear half shaft may also adopt a constant-speed universal joint design.
Structural Composition (Brief)
Inner Universal Joint (near the transmission): Usually a movable joint, capable of axially sliding to adapt to suspension displacement.
Outer Universal Joint (near the wheel): Usually a fixed joint, bearing the steering angle changes.
Intermediate Shaft Tube: Connects the inner and outer universal joints. Dust cover + clamp: Seals the lubricating grease to prevent dust and moisture from entering.
Spline connection: Transmits torque between the transmission differential and the hub.
The lifespan of the constant velocity drive shaft assembly is generally 8-12 ten thousand kilometers. Common faults after aging include: "clicking" abnormal noise during turning, acceleration judder, and poor steering response.
For further understanding of the structural diagram or maintenance information, you can refer to: Pacific Auto - Analysis of Constant Velocity Universal Joint Drive Shaft.
