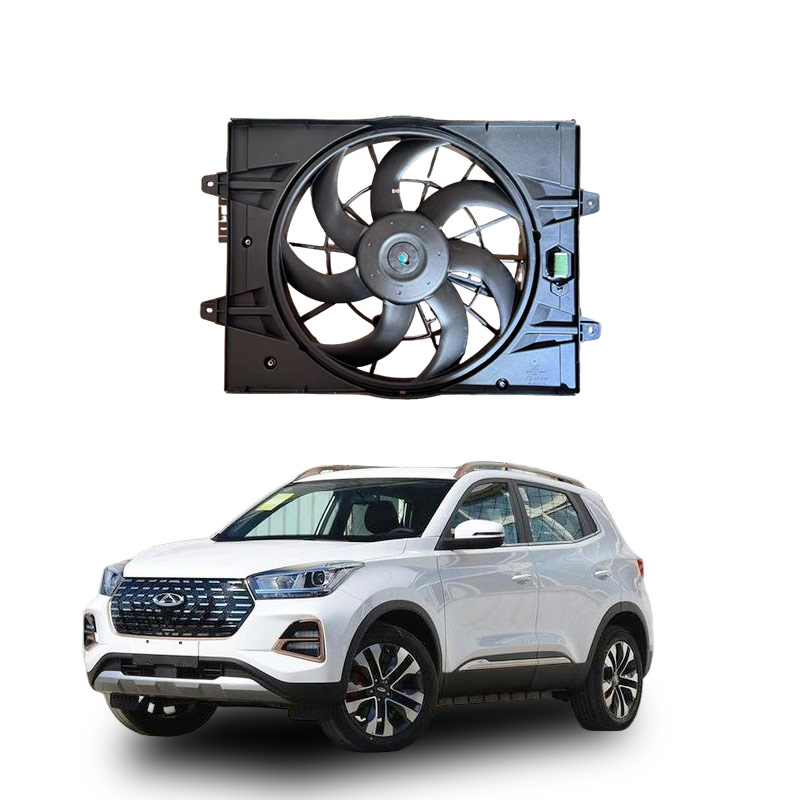

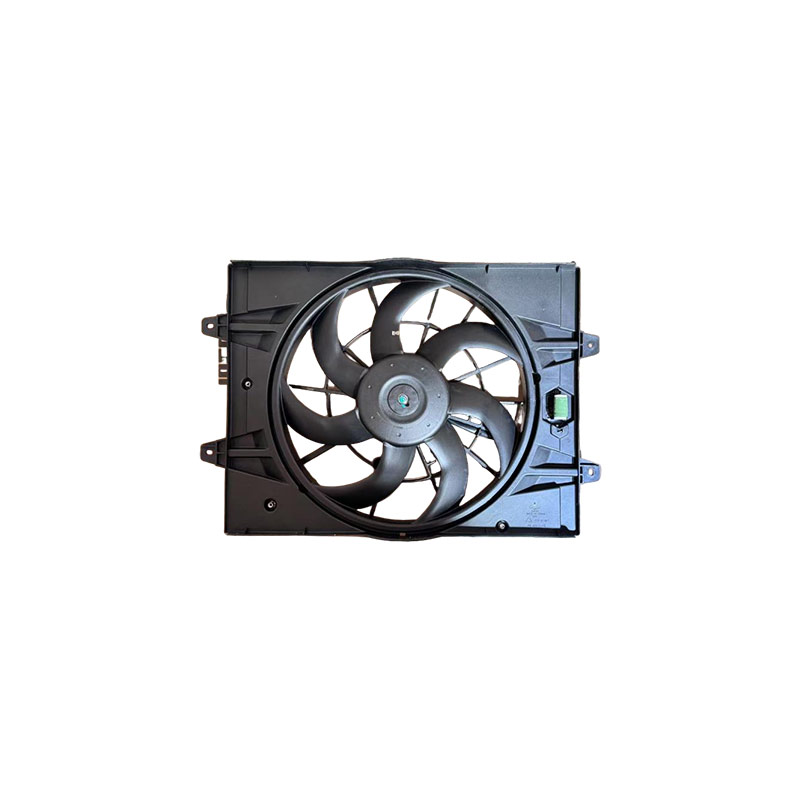

The function of the automotive cooling fan assembly
The automotive cooling fan assembly is a crucial component in the engine cooling system. Its main function is to increase the air flow passing through the radiator, enhance the cooling efficiency, and ensure that the engine operates stably within the appropriate working temperature range. Core function
Forced ventilation cooling : When the vehicle is at low speed, idle, or in high-temperature conditions, and external natural wind is insufficient to effectively dissipate heat, the cooling fan starts to operate, actively drawing or blowing air through the radiator to accelerate the cooling of the coolant.
Intelligent temperature control adjustment : Modern vehicles mostly use electronically controlled fans, which automatically adjust the speed based on signals from temperature sensors, air pressure, etc., to achieve precise cooling and avoid "boiling over" or excessive cooling.
Auxiliary other thermal management : Some models are equipped with multiple fans, each responsible for the cooling of components such as the water tank, intercooler, and transmission oil cooler, improving the overall thermal management efficiency.
Working characteristics
Axial flow type as the main type : Most vehicles use axial flow fans, with the airflow direction parallel to the fan shaft, featuring simple structure, large air volume, and high efficiency .
Dynamic response : In high heat load scenarios such as congestion, with air conditioning on, or climbing hills, the fan will automatically increase speed or even run at full speed .
Energy-saving optimization : Electronic fans only work when necessary, compared to traditional mechanical fans, they can reduce 5% to 8% of engine power loss, balancing cooling and fuel economy .
Typical application scenarios
When the water temperature rises during traffic congestion, the fan automatically starts to prevent overheating .
When the air conditioning is on, the system collaborates to increase the cooling demand, and the fan speed increases .
During hot weather or heavy-load driving, the fan operates with multiple speed adjustments to ensure thermal balance .
The total fan assembly failure of the vehicle usually manifests as the fan not rotating or constantly running , both of which can lead to engine overheating or battery depletion, requiring prompt investigation and handling.
Common fault manifestations and causes
The fan completely does not rotate
Fuse blown (usually 15–20A, located in the engine compartment fuse box)
Relay damaged or contacts burned out
Fan motor carbon brushes worn, winding short-circuited or open-circuited
Water temperature sensor failure, ECU not receiving high-temperature signal
Line breakage, plug loose or corrosion
Insufficient coolant, unable to trigger high-temperature protection logic
The fan keeps running continuously
Short-time operation after engine shutdown (3–5 minutes) is normal for cooling
Thermostat stuck in the large circulation position, making it difficult to lower the water temperature
Incorrect high-temperature signal sent by the water temperature sensor (such as showing -40°C or 140°C)
Relay sticking, unable to de-energize
Thermal control switch failure, continuous conduction
Damage to the fan motor circuit or ECU misjudging high-temperature
Preliminary self-check steps
Observe the water temperature gauge : Is it abnormally high or low.
Turn off the air conditioning : Test if the fan stops (the fan often rotates when the air conditioning is on) .
Check the coolant level of the cold vehicle : Ensure it is between MIN–MAX .
Listen for the sound of the relay : Is there a "click" engagement sound when starting .
Check if there is a fault code in the instrument panel : If the water temperature warning light is on, stop immediately .
Suggested handling methods
If you have basic动手 ability， you can first replace the fuse， relay (you can use a horn relay for testing) .
If the fan motor does not rotate， you can try using a battery to directly power test (be careful with safety) .
Do not disassemble the fan assembly yourself ， as modern models are often integrated modules and involve high-voltage circuits.
It is recommended to go to a professional repair shop ‐ use a diagnostic tool to read the ECU data stream， precisely locate the faulty component .
Note ： Abnormal fan operation may cause engine overheating or battery depletion ， it is recommended to repair as soon as possible to avoid further damage .
