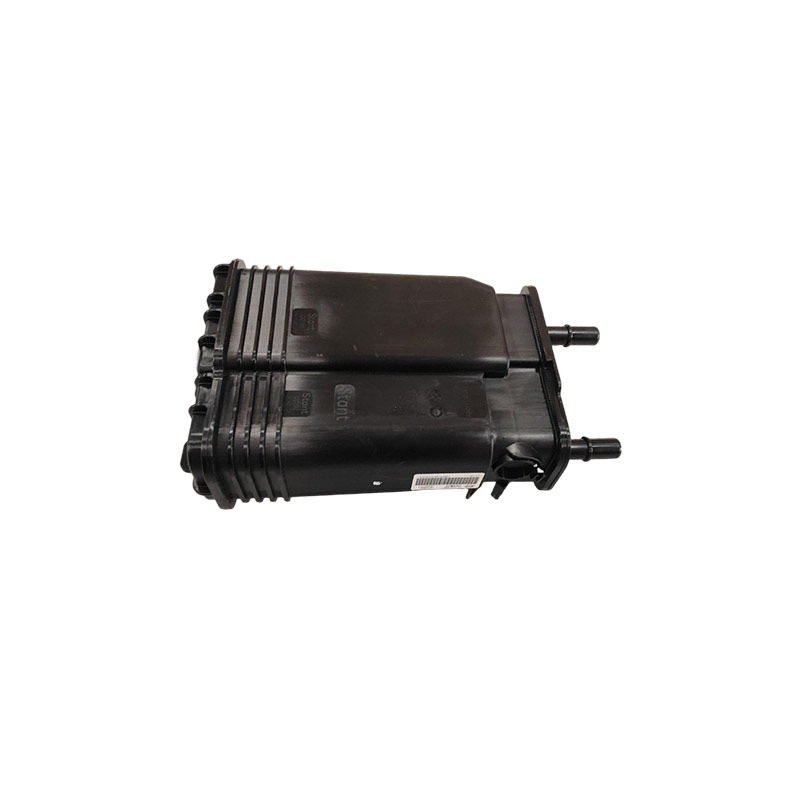

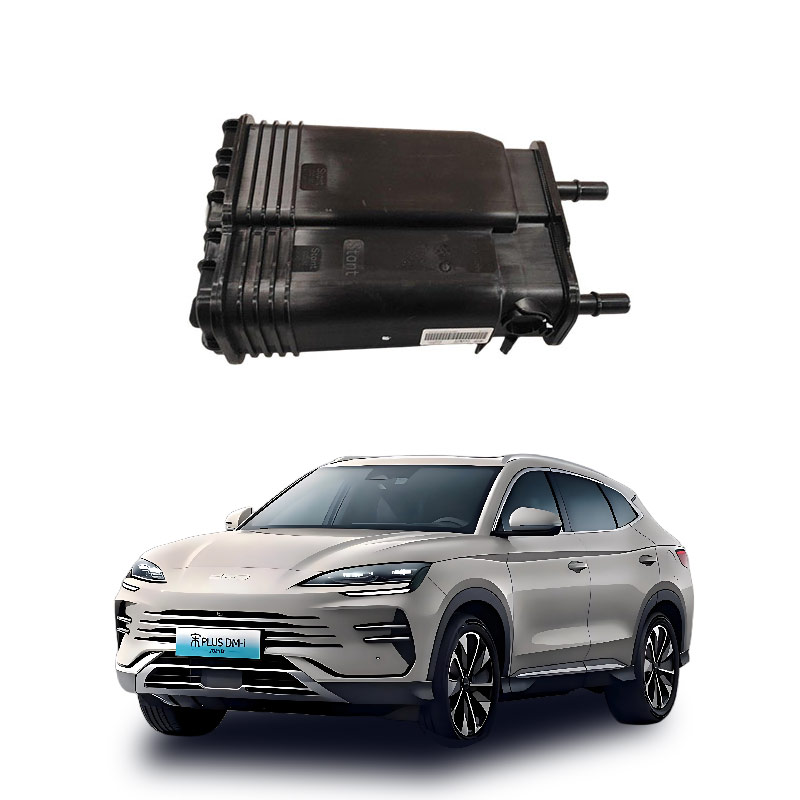

What is the automotive activated carbon tank assembly?
The automotive activated carbon tank assembly is the core component of the fuel evaporation emission control system (EVAP), consisting of a tank body, a granular activated carbon filling layer, inlet and outlet gas pipelines, and a carbon tank electromagnetic valve. It is used to adsorb and store the gasoline vapor emitted from the fuel tank and introduce it into the engine for combustion during operation, thereby achieving emission reduction and pollution prevention.
Core Definition and Function
Essentially: A sealed container filled with highly adsorptive activated carbon, belonging to a mandatory emission control device (standardized in new vehicles since 1995).
Main Function: Prevents the direct emission of gasoline vapor into the atmosphere, causing pollution; recovers the gasoline vapor for combustion, balancing the pressure inside and outside the fuel tank.
Working Logic: Adsorbs and stores vapor when the engine is off or stationary → Electromagnetic valve opens when the engine is running → Utilizes the vacuum of the intake manifold to suck the vapor into the cylinder for combustion.
Component Composition Details
Tank Body: Corrosion-resistant plastic or metal sealed container, containing the internal materials.
Activated Carbon Layer: Granular activated carbon with high specific surface area (core adsorption medium), responsible for capturing volatile organic compounds.
Pipeline System: Connects the fuel tank (inlet pipe) to the engine intake manifold (deactivation pipe).
Control Unit: Carbon tank electromagnetic valve (controlled by the ECU, determining the deactivation timing and flow rate).
Typical Fault Manifestations
If the component fails (blocked, cracked, or saturated in adsorption), common phenomena include frequent fuel pump disconnection during refueling, gas tank cap opening and gas spraying, heavy gasoline smell inside the vehicle, unstable idle or abnormal increase in fuel consumption, etc. It is necessary to promptly inspect and replace.
The automotive activated carbon tank is the core component of the fuel evaporation control system (EVAP), primarily functioning to adsorb and store the gasoline vapor emitted from the fuel tank, prevent pollution emissions, and recover the fuel for combustion while balancing the pressure inside and outside the fuel tank. Core function
Environmental protection and emission reduction: Absorbs the gasoline vapors generated during parking or refueling to prevent the direct release of hydrocarbons into the atmosphere, meeting the strict emission standards of the sixth generation.
Energy conservation and recovery: During engine operation, the ECU controls the electromagnetic valve to open, allowing the adsorbed vapors to be introduced into the intake manifold for combustion, thereby improving fuel economy.
Pressure balance: Adjusts the internal pressure of the fuel tank through the ventilation and adsorption cycle to prevent damage to the oil pump or potential safety hazards due to excessive pressure.
Protection of post-treatment: Filters out some impurities from the vapors to reduce the load on the three-way catalytic converter and extend its service life.
Working principle flowchart
Adsorption stage: When the vehicle is off or stationary, the volatile vapors from the fuel tank enter the tank and are adsorbed and stored by the internal activated carbon particles.
De-adsorption stage: After the engine starts and reaches the operating conditions, the carbon tank electromagnetic valve opens, using the vacuum in the intake manifold to suck out the vapors and send them into the cylinder for combustion.
Regeneration cycle: Fresh air enters the tank through the breathing hole, displacing the residual vapors and restoring the adsorption capacity of the activated carbon, forming a repetitive cycle.
This component has no fixed replacement cycle and typically has a lifespan of over 150,000 kilometers. If symptoms such as fuel pump failure, gasoline smell inside the vehicle, or unstable idle occur, it is necessary to check promptly.
Common faults of the automotive activated carbon tank component mainly manifest as: difficulty starting (especially after filling the tank completely), unstable idle, heavy gasoline smell inside or outside the vehicle, abnormal increase in fuel consumption, and lack of acceleration power. The core causes are often electromagnetic valve sticking (open or closed) or failure of the oil tank to adsorb or release due to rupture.
Core fault phenomena and mechanisms
Difficulty starting or engine stalling: The electromagnetic valve being in the "open" position causes the gasoline vapors to continuously enter the intake manifold during parking, resulting in a too-rich mixture during cold start; or the valve being in the "closed" position causes the pressure in the fuel tank to be too high, hindering fuel supply.
Gasoline smell pervading: The electromagnetic valve being in the "closed" position causes the pressure in the fuel tank to rise and vent through the pressure relief valve on the fuel tank cover, or the rupture of the tank or pipeline directly leaks gasoline vapors.
Unstable idle and lack of acceleration power: The mixture concentration is out of control (too rich or too lean), resulting in poor combustion, stalling, or sudden engine shutdown during acceleration.
Increased fuel consumption and emission： The gasoline vapors are not recovered and directly discharged， causing waste and potentially triggering the engine fault light (common fault codes P0441， P0443， etc.).
Common causes of damage
Improper refueling habits： Frequent refueling to the "jumping gun" level， causing liquid gasoline to enter the carbon tank and leading to saturation and failure of the activated carbon.
Component aging and quality： Fatigue and sticking of the electromagnetic valve spring， long-term saturation of the activated carbon， aging and cracking of the pipeline or clogging of the filter.
Environmental external factors： Damage to the tank due to chassis impact， accelerated corrosion in harsh driving conditions， and blockage of internal structures by gasoline impurities.
Simple troubleshooting and suggestions
Initial judgment： Is it difficult to start after filling the tank completely？ Is there a gasoline smell around when the vehicle is parked？ Is there an EVAP system fault code read from OBD?
Electromagnetic valve test： Disconnect the pipeline， and blow air without power. If it can be easily blown through， it indicates that the "open" is damaged (normally it should be blocked).
If there is obvious oil leakage or strong odor， stop driving immediately and contact professional maintenance to prevent fire hazards.
