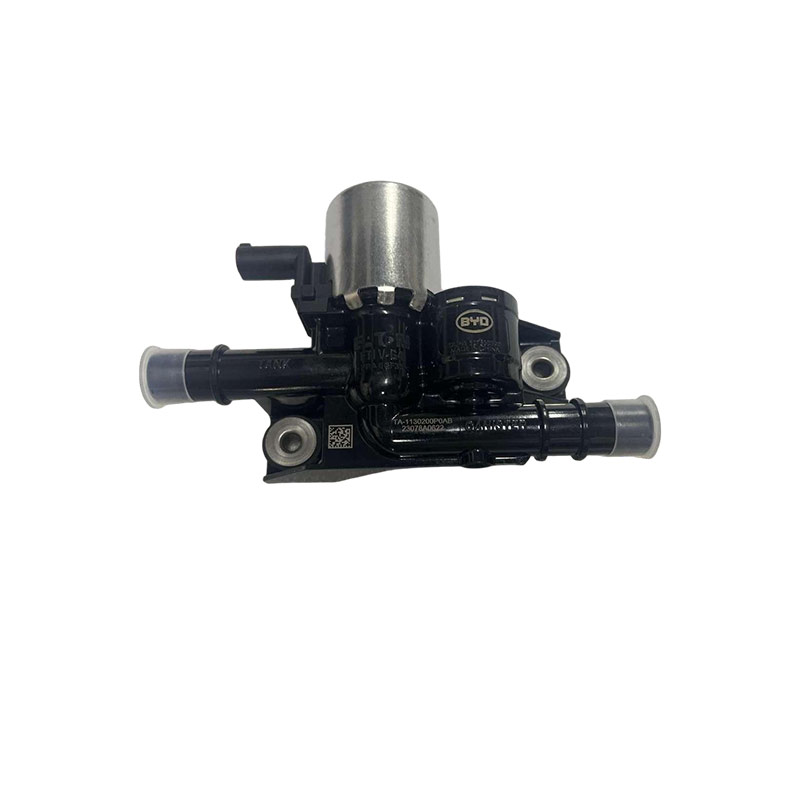

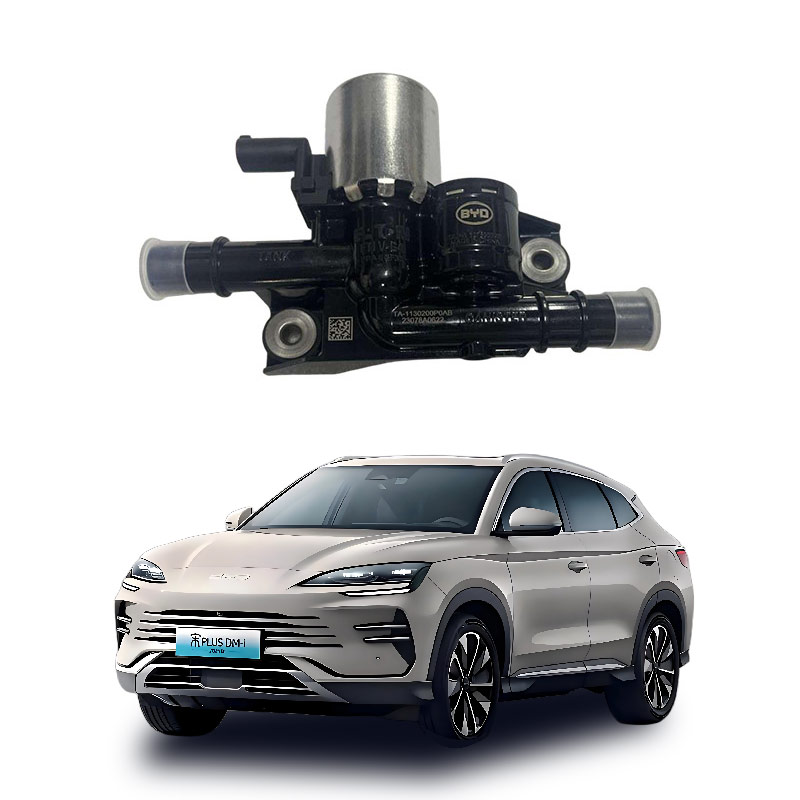

What is the automotive tank isolation valve assembly?
The car does not have a "soil tank isolation valve" component. What you are referring to should be the "fuel tank isolation valve assembly" (often mistakenly written as "soil tank"). It is a key electromagnetic/mechanical valve assembly that connects the fuel tank and the carbon tank, used to control the oil-gas passage, balance the pressure inside the tank, and block leaks.
Core definition and function
Essence: A safety and pressure control component in the fuel evaporation emission system (EVAP), commonly found in Euro VI standard fuel vehicles and hybrid models (especially high-pressure fuel tank systems).
Core function:
Normal pressure control and oil vapor recovery: During normal driving, it cooperates with the carbon tank system to precisely conduct or cut off the vapor passage from the fuel tank to the carbon tank, achieving oil vapor adsorption and recovery, and reducing evaporation emissions.
Safety pressure relief and oil cut-off isolation: When there is overpressure/negative pressure (such as sudden temperature changes or pump failure) in the fuel tank, it automatically or under control opens to release the pressure; in cases of collision, engine shutdown, or maintenance mode, it cuts off the oil path to prevent fuel leakage or direct vapor discharge into the atmosphere.
Location: Usually installed on the pipe between the fuel tank exhaust port and the carbon tank intake port.
Main components and working principle
Components: Valve body housing, electromagnetic coil (electronic type), valve core/film, return spring, sealing assembly, and pressure sensing module (partially integrated).
Working logic:
Electronic control mode: Receives ECU signals to drive the electromagnet to act, opening or closing the valve as needed, achieving active oil vapor management.
Mechanical protection mode: When sensors fail or extreme pressure anomalies occur, it opens passively relying on the spring-membrane structure as a safety redundancy to release overpressure/negative pressure.
Common misunderstandings clarified
Not "carbon tank electromagnetic valve": Although both belong to the EVAP system, the carbon tank electromagnetic valve mainly controls the purge airflow from the carbon tank to the engine; the fuel tank isolation valve focuses on the sealing, pressure relief, and on/off isolation at the fuel tank end, and some hybrid models have higher pressure resistance and sealing requirements.
Name correction: The industry standard term is "fuel tank isolation valve" (FTIV), and there is no such term as "soil tank". It is a pronunciation or input error.
The "soil tank isolation valve" in cars is actually the "fuel tank isolation valve" (FTIV), and its core function is to cut off the passage between the fuel tank and the carbon tank in hybrid/high-pressure fuel tank systems to seal the oil and gas, and open to relieve pressure in overpressure/negative pressure or during refueling, ensuring compliance with evaporation emissions and fuel tank safety. Core function
Oil and gas isolation anti-leakage: Automatically shuts off when the engine is turned off or in pure electric mode, preventing fuel vapor from entering the carbon canister or directly being discharged into the atmosphere, thereby reducing evaporation pollution.
Pressure safety regulation: Monitors the pressure difference inside and outside the fuel tank, opens to relieve pressure when overpressure occurs, and introduces air to balance the pressure when negative pressure is detected, preventing the fuel tank from deforming or the fuel filler opening from being unable to open.
Cooperation with emission control: Works in conjunction with the carbon canister system, only allowing oil and gas to participate in combustion when the engine is running and the carbon canister load is within the allowable range, avoiding carbon canister overload and failure.
Application scenarios and logic
Hybrid/high-pressure fuel tank exclusive: Mainly installed on plug-in hybrid and Euro VI high-pressure fuel tank models, addressing the issue of oil and gas not being consumed when the engine is not running.
Control logic: Controlled by ECU or dedicated pressure sensors to open and close the solenoid valve; normally closed, activates when over/low pressure thresholds are reached, or when there is a fueling demand or the carbon canister is saturated.
Fault impact: Failure often leads to difficulties in refueling, excessive oil smell inside the vehicle, excessive evaporation emissions, or fault codes being reported.
Note: This component is different from the carbon canister electromagnetic valve (Purge Valve), which is responsible for drawing the oil and gas adsorbed by the carbon canister into the engine for combustion; FTIV focuses on the path interruption at the fuel tank end and pressure safety protection.
