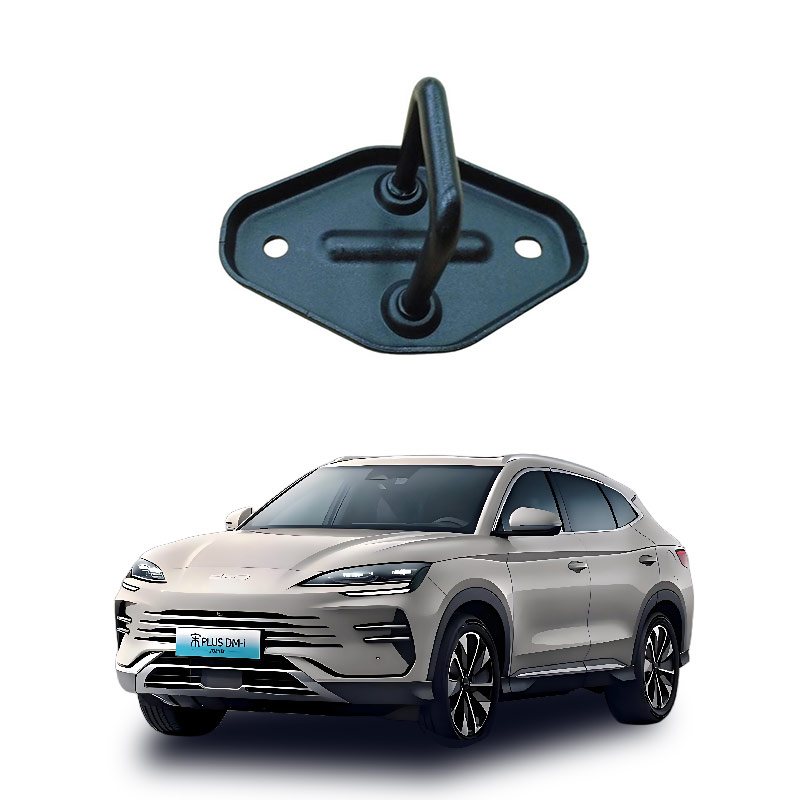

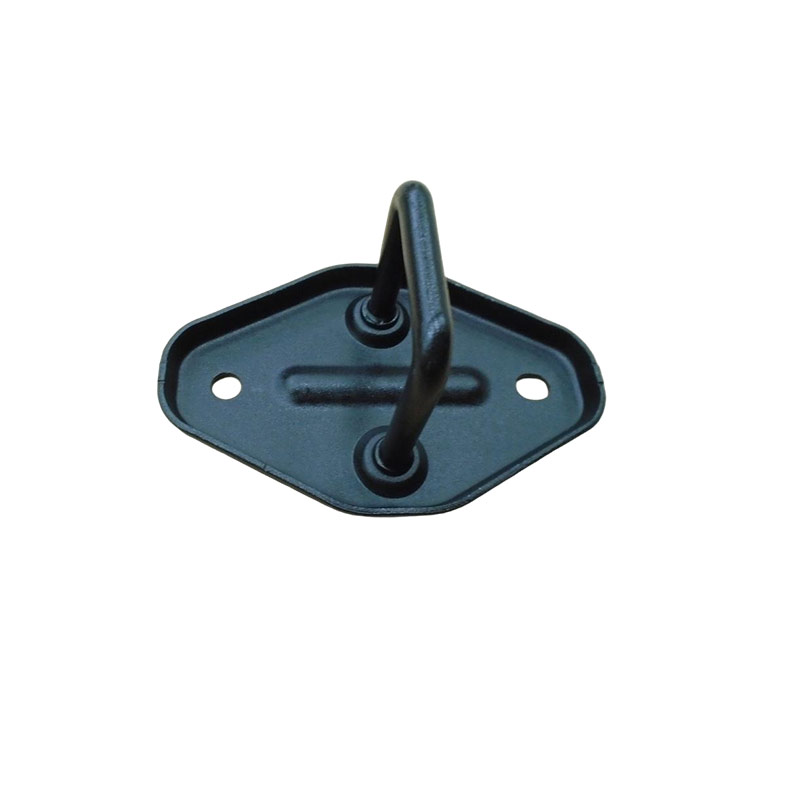

What is the lock ring of the front hood of a car?
The car front hood lock ring is not a standard term. It usually refers to the locking component (including the lock tongue/hook ring) in the engine hood locking mechanism, which is the core mechanical part that fixes the engine hood to prevent it from accidentally being lifted during driving. It is a crucial component for ensuring the engine hood does not lift up under the impact of high-speed airflow, avoiding blocking the view or colliding with the windshield, and ensuring driving safety.
Core Definition and Function
Essentially: A metal latch device installed on the radiator frame at the front of the vehicle, which cooperates with the lock tongue on the inside of the engine hood to achieve "two-stage locking" (main lock + safety secondary lock).
Function: To ensure that the engine hood does not lift up under the impact of high-speed airflow, preventing it from blocking the view or colliding with the windshield, and ensuring driving safety.
Location: It is located below the central axis of the front hood, and the operation lever can only be reached by opening the engine hood gap.
Structure and Working Principle
Main Lock Ring (Primary Lock): Controlled by an internal pull rope, the engine hood will slightly open up after unlocking (about 3-5 cm).
Secondary Lock Hook/Loop (Secondary Lock): Located inside the gap, it needs to be manually turned to release and can be fully lifted when the hood is closed; when closed, it relies on gravity to automatically engage and lock.
Key Materials: Mostly made of high-strength stainless steel or galvanized steel, capable of withstanding the huge tension generated by high-speed airflow (approximately 1000N at a speed of 160 km/h).
Common Misconceptions
The "lock ring" is often mistakenly referred to as a separate part. In fact, it is part of the locking assembly (including the fixed seat, movable hook tongue, spring, and adjustment mechanism), and does not exist independently as a "ring-shaped" structure; if there is abnormal noise or the gap of the hood is too large, it is mostly due to wear of this component or the need for adjustment of the position.
The core function of the car front hood lock ring (usually referring to the locking/locking seat fixed on the vehicle body) is to cooperate with the lock hook on the engine hood to achieve mechanical engagement locking, preventing the engine hood from accidentally lifting up and blocking the view during driving. Core function
Fixed locking: As the force-bearing support point on the vehicle body side, it engages with the locking hook on the inner side of the hood to firmly fix the hood in the closed position, resisting wind resistance, vibration, and inertial forces.
Double insurance foundation: The basic component that forms the "main lock + secondary lock" secondary safety mechanism, ensuring that even if the main lock tongue is loose, the lock ring structure can still limit the significant opening of the cover.
Alignment guidance: Guides the hood to accurately position itself, and cooperates with the buffer rubber pads to ensure a uniform closing gap, avoiding abnormal sounds or poor sealing.
Anti-theft protection: Physically blocks the direct opening of the hood from the outside, protecting the internal components and oil of the engine compartment from safety risks.
Structural relationship explanation
The lock ring does not work independently, but together with the lock hook (installed on the hood) and the pull wire/motor (controlling unlocking), it forms the hood lock system:
When closed: The hood lock hook falls and inserts into the lock ring hole, and the spring pushes the lock tongue to lock.
When opening: Pull the release handle inside the driver's cabin, the pull wire drives the inner lock tongue of the lock ring to retract, disengaging the engagement.
Safety logic: If the lock ring is deformed, worn, or positionally offset, it will cause "not closing tightly" or "unable to open", leading to driving safety hazards.
