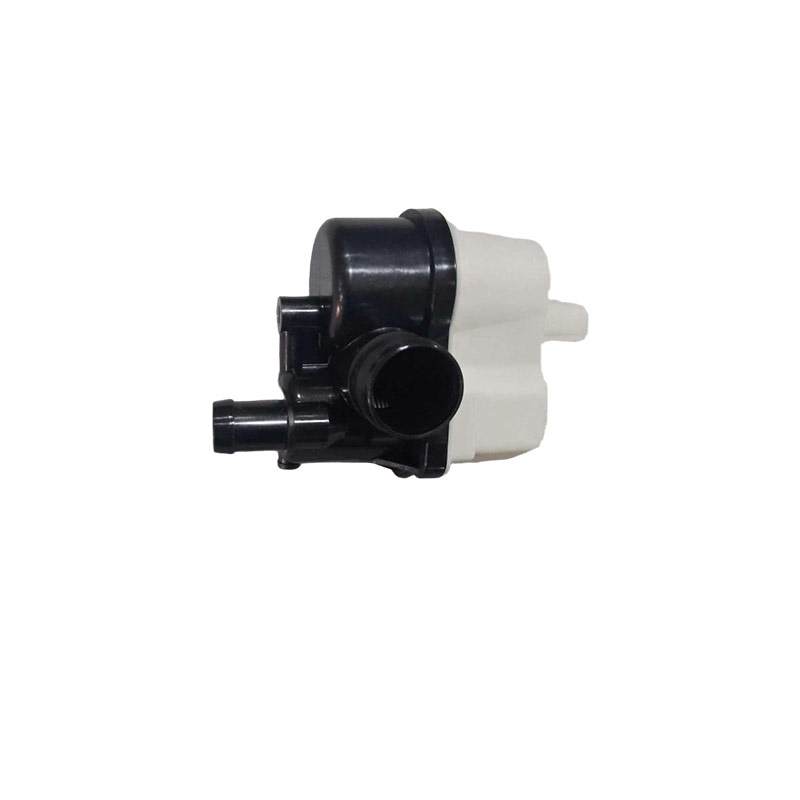

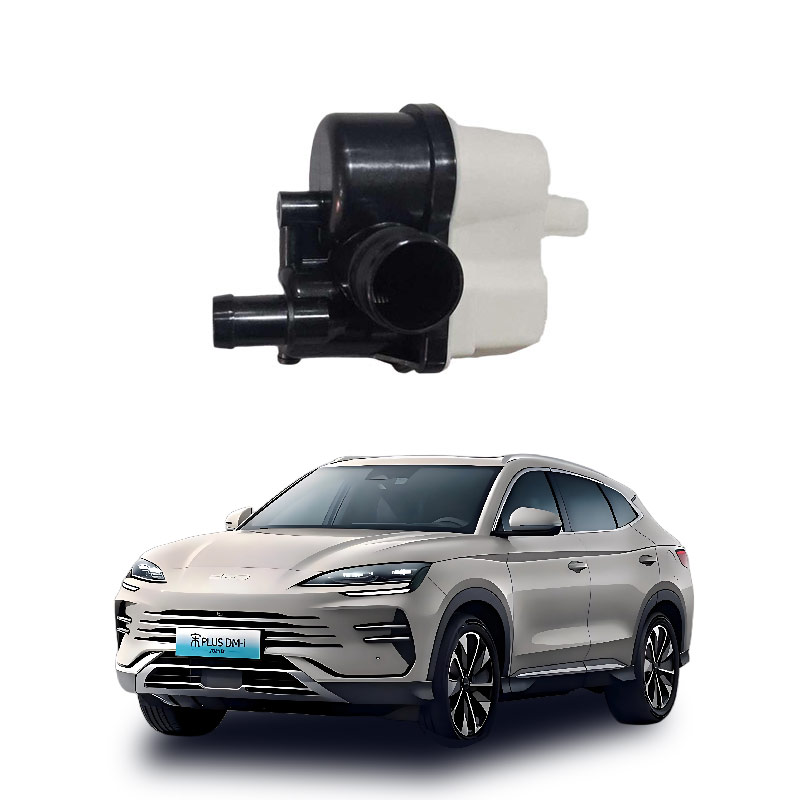

What is the diagnostic module for detecting fuel evaporation leakage in automobiles?
The fuel evaporation leakage diagnostic module is the "smelling guardian" in the car, specifically responsible for monitoring whether there is any air leakage in the fuel tank and pipelines. Once an abnormality is detected, it will light up the fault indicator to alert the owner. It is usually integrated into the fuel evaporation emission control (EVAP) system and is a key component for meeting the Euro VI emission standards.
How does it "smell" for air leakage?
The core of this module is a small pump (often called the DMTL pump), which works by applying pressure to the fuel evaporation system and monitoring pressure changes. It's like inflating a balloon and pinching the opening to see if it will deflate. It determines the system's sealing performance by measuring the current of the pump or the rate of pressure drop, and can identify even tiny leaks as small as 0.5mm or smaller. The entire process is controlled by the engine control unit (ECU), and it automatically starts the detection several hours after the vehicle is turned off, avoiding interference from temperature fluctuations on pressure monitoring.
When will it light up the alarm?
When the module detects a leak, the ECU will store the fault code and light the engine fault indicator. Common fault codes include P0455 (severe leak), P0456/P0442 (minor leak), and P0441 (incorrect cleaning flow rate). The most obvious signal is the yellow "exhaust emission超标" light on the dashboard， and the owner may smell gasoline near the fuel tank cover， or experience difficulty starting， idle shaking， or sudden increase in fuel consumption after refueling. If the carbon canister electromagnetic valve is stuck in the open position， the mixture will be too rich， causing poor acceleration； if it is closed， the pressure in the fuel tank cannot be released， and there will be a noticeable suction sound when opening the fuel tank cover.
How to diagnose and repair when there is a problem?
First， check if the fuel tank cap is tightened properly and if the gasket is aged or damaged. These are the most common reasons. Then， use a diagnostic tool to read the fault codes， and focus on checking the carbon canister electromagnetic valve， the connection points of the evaporation pipeline， and the fuel tank pressure sensor. Professional repair shops will use smoke testing equipment or pressure testing devices to segmentally detect and find the specific leak point.
How to diagnose and repair the problem?
First， check if the fuel tank cap is tightened properly and if the gasket is aged or damaged. These are the most common reasons. Then， use a diagnostic tool to read the fault codes， and focus on checking the carbon canister electromagnetic valve， the connection points of the evaporation pipeline， and the fuel tank pressure sensor. Professional repair shops will use smoke testing equipment or pressure testing devices to segmentally detect and find the specific leak point.
The core function and mechanism of the fuel evaporation leakage diagnostic module (LDP/NVLD) is to actively monitor the sealing performance of the fuel evaporation emission system (EVAP) by applying a small pressure or vacuum to the EVAP system using a built-in pump (mechanical pump or using engine vacuum). It detects micro-leaks (typically ≥ 0.5mm) by monitoring the pressure sensor/sensor switch and prevents fuel vapor from escaping into the atmosphere and triggering fault warnings.
Core functions and mechanisms：
Leak detection： When the vehicle is off or under specific conditions， it uses a built-in pump (mechanical pump or using engine vacuum) to apply a small pressure or create a vacuum to the EVAP system. It monitors the pressure sensor/sensor switch to determine if there is a leak.
Environmental compliance： It ensures that fuel vapor is adsorbed by the activated carbon canister and ultimately sent to the engine for combustion， preventing carbon hydrocarbons (HC) from being directly discharged into the atmosphere and meeting strict emission standards such as Euro VI.
Fault diagnosis： Once the leak exceeds the threshold (such as 0.5mm diameter)， it immediately lights the fault indicator (MIL) and stores the corresponding fault code (such as P0455/P0456)， alerting the owner to repair.
Energy saving and cost reduction： It prevents fuel loss due to system leakage and avoids safety hazards caused by oil accumulation.
Working principle summary：
Triggering time： It usually starts automatically after the engine is off or under specific conditions to avoid temperature fluctuation interference.
Detection process： The module inflates or creates a vacuum in the system. If the system is well sealed， the pressure remains stable； if there is a leak， the pressure changes rapidly.
Result feedback： The differential pressure sensor or pressure switch transmits data back to the ECU， which compares the standard value to determine if there is a fault and does not require manual intervention.
This module is a key component for the EVAP system to achieve "self-diagnosis" and has dual values of environmental monitoring and fault warning.
