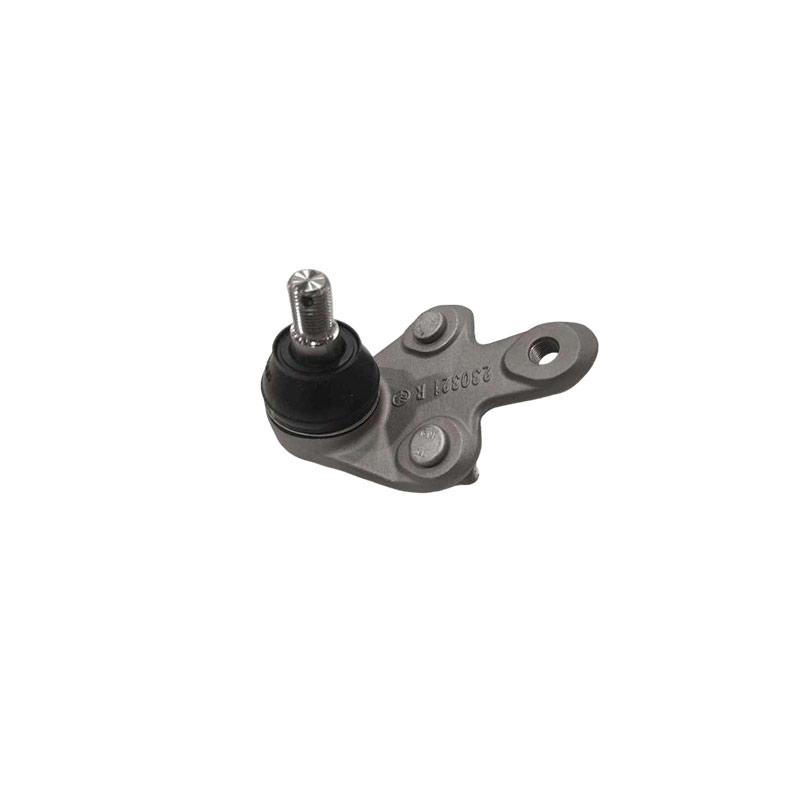

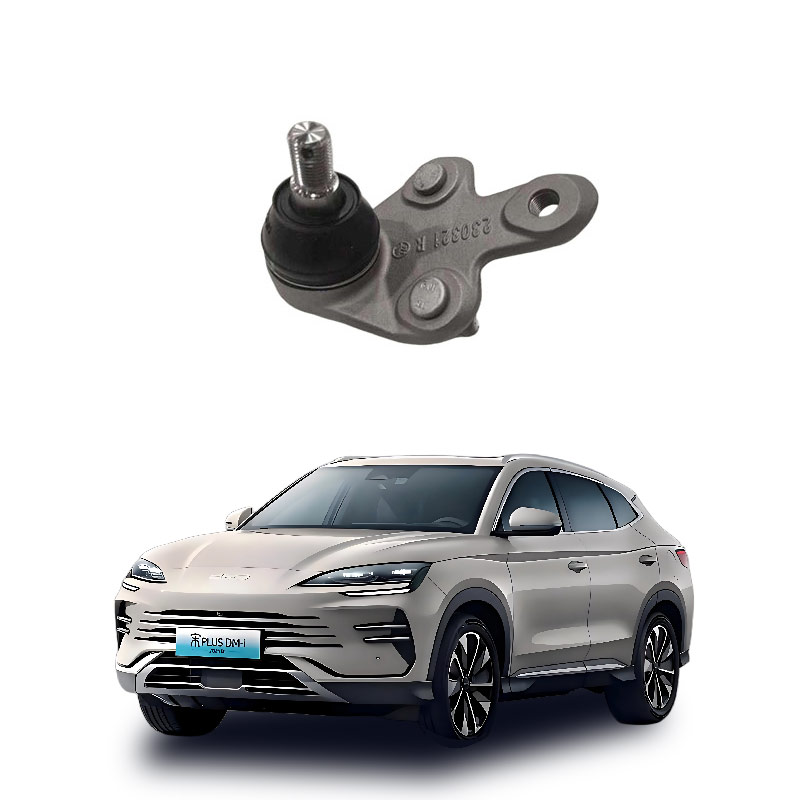

What is the ball joint assembly for the right front lower arm of the car?
The right front lower arm ball joint assembly of the car is a universal joint that connects the right front lower arm to the steering knuckle (spoke). It is responsible for transmitting the steering force and suspension load, allowing the wheels to flex and turn freely during jolting and steering.
Core definition and function
Location: Located in the right front suspension system of the vehicle, one end is riveted or pressed into the end of the right front lower arm, and the other end is connected to the steering knuckle through threads.
Function: As a suspension "joint", it not only supports the vehicle's weight and transmits longitudinal/sideways forces, but also allows the wheels to have multi-angle relative movement during up-and-down bouncing and left-and-right steering, ensuring handling stability and positioning accuracy.
Failure consequences: Wear and gap generation will cause abnormal noises in the chassis, steering shake, deviation, and abnormal tire wear. In severe cases, it may come off and cause loss of control.
Main construction components
Ball stud: The core load-bearing component, usually forged from chromium-molybdenum alloy steel and surface hardened (hardness HRC58-62), with a spherical head.
Ball head seat (liner sleeve): The wear-resistant inner liner that wraps the ball stud, commonly made of polyoxymethylene (POM) or polyurethane (PU), providing a low-friction sliding surface.
Dust cover: Rubber sealing sleeve (nitrile or chloroprene rubber), preventing dirt and moisture from entering and locking in the internal lubricating grease, being a key component for lifespan.
Pre-compression spring: Partial design includes, used to eliminate initial gaps and provide return torque.
Shell and fixed end: Pressed steel or cast iron shell, with a threaded rod at the bottom for locking and fixing.
Maintenance and replacement key points
Check cycle: It is recommended to check the dust cover for rupture and ball joint gap (normally there should be no visible shaking with the naked eye) every 6-8 thousand kilometers.
Replacement strategy: If only the dust cover is damaged, it can be attempted to be maintained separately, but once the ball joint is worn and generates a gap or the dust cover is damaged causing internal contamination, usually a complete ball joint assembly or lower arm assembly replacement is required; after replacement, a four-wheel alignment must be performed.
Fault signal: "Clunking" sound over speed bumps, loose steering, deviation during straight driving.
The right front lower arm ball joint assembly of the car is the universal connection hub of the suspension and the steering knuckle. Its core function is to transmit vertical/longitudinal forces, constrain the wheel's movement trajectory, and allow for the freedom of steering and bouncing, directly determining handling stability and safety. Core function
Dynamic Guidance and Trajectory Control: Utilizing the ball hinge structure enables the wheels to flexibly deviate during up-and-down movement (approximately ±20°) and steering rotation (approximately ±15°), ensuring that the tires always remain in contact with the ground, maintaining accurate positioning parameters (camber, toe-in), and preventing deviation and abnormal wear.
Force Transmission and Bearing Capacity: The vertical load borne by the wheels (approximately 30%-40% of the vehicle's load) as well as braking force and acceleration traction are reliably transferred to the subframe/body, supporting the vehicle's weight and distributing impact stress.
Buffering and Vibration Isolation: Combined with internal lubricating grease and sealing structures, it filters out some high-frequency road vibrations, reduces the direct impact transfer to the steering wheel and body, enhances comfort, and reduces abnormal noises.
Safety Collapse Protection: In extreme collisions or severe impacts, it absorbs part of the energy through specific deformation, prioritizing the protection of expensive core components such as the steering gear and subframe from destructive damage.
Failure Consequences
If this component is worn or loose (with a clearance typically greater than 0.5mm requiring replacement), it will cause chassis abnormal noises (a "clunking" sound when crossing uneven terrain), steering blur/floating, high-speed driving vibrations, tire uneven wear, and brake drift, and in severe cases, it may cause the wheels to lose control.
Maintenance Points
Check Period: It is recommended to conduct a special inspection every 6-80,000 kilometers or when abnormal noises are detected in the chassis; pay close attention to whether the dust cover is damaged (leaking oil/dry grinding are the main causes) and the radial clearance.
Replacement Principle: The ball joint usually cannot be repaired alone; the lower arm assembly needs to be replaced; after replacement, a four-wheel alignment must be performed to restore accurate parameters.
