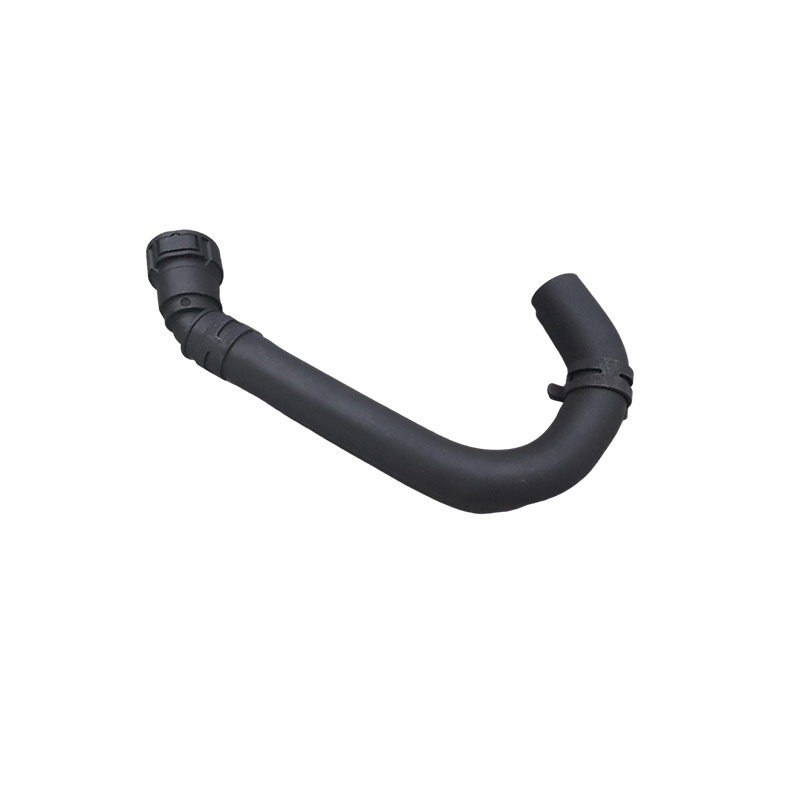

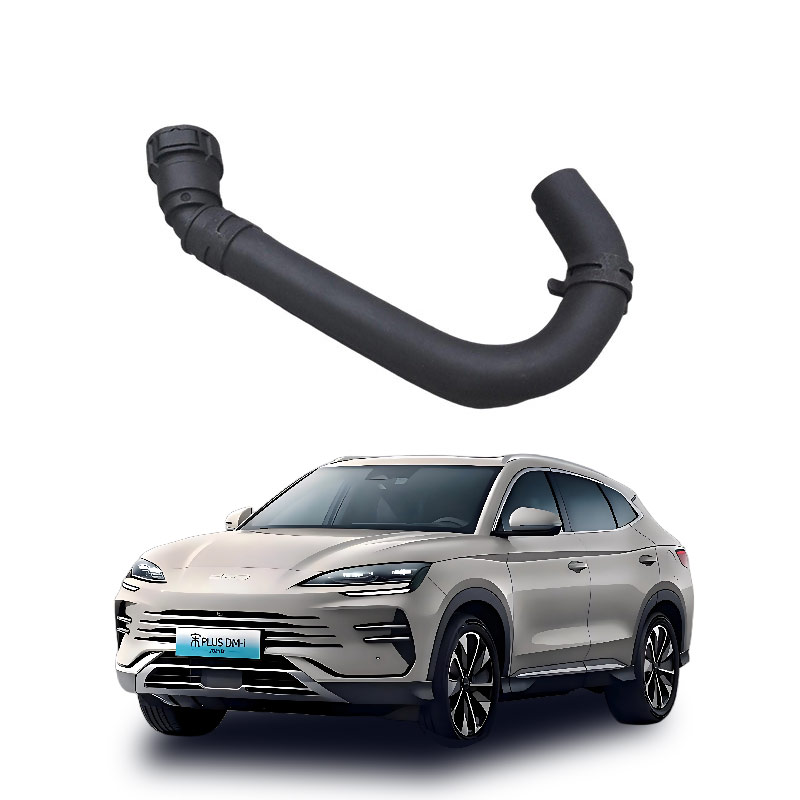

What is the automotive fuel evaporation emission pipe assembly?
The automotive fuel evaporation emission pipe assembly is a piping assembly in the EVAP system that connects the fuel tank, the activated carbon canister, and the engine intake manifold, responsible for guiding the fuel vapor flow and preventing it from directly being discharged into the atmosphere.
Core Definition and Function
This assembly is not a single part but a transmission network composed of multiple sections of hoses, rigid pipes, and integrated valves. Its core function is to construct a sealed loop: the gasoline vapor generated by the fuel tank is transported to the activated carbon canister for adsorption and storage, and in specific engine operating conditions, the vapor is directed into the intake manifold for combustion, thereby meeting environmental protection regulations and maintaining the pressure balance of the fuel tank.
Main Components
Transportation Pipeline: The vapor conduit connecting the fuel tank outlet and the activated carbon canister inlet, usually with a design to prevent liquid oil from entering.
Ventilation Pipeline: The channel connecting the bottom of the activated carbon canister to the atmosphere (some models include a ventilation solenoid valve), used to introduce fresh air during de-adsorption.
Cleaning Pipeline: The controlled pipeline connecting the outlet of the activated carbon canister to the engine intake manifold, with a carbon canister solenoid valve in series to regulate the vapor flow.
Integrated Valve Assembly: The one-way valve, vapor separation valve, or pressure control valve integrated in the piping system to prevent rollover oil leakage and abnormal backflow.
Brief Description of Working Principle
Adsorption Stage: When the engine is off or running at idle, the cleaning valve is closed, and the vapor from the fuel tank enters the carbon canister and is adsorbed by activated carbon.
De-adsorption Combustion Stage: When the engine is running at medium speed or higher, the ECU controls the solenoid valve to open, and the vacuum in the intake manifold uses the pipeline to suck in the vapor, which is then sent into the engine for combustion.
Pressure Balance: The ventilation pipeline opens when the system pressure is abnormal to prevent the fuel tank from being deformed due to vapor accumulation or bursting due to positive pressure.
If this assembly is cracked, aged, leaks, or valves are stuck, it will cause a strong fuel odor, unstable idle, increased fuel consumption, emission tests (such as triggering P044x series fault codes).
The core function of the automotive fuel evaporation emission pipe assembly is to construct a sealed transportation channel， guiding the fuel vapor (HC) from the fuel tank to the activated carbon canister for adsorption and storage， and then sending it to the intake manifold for combustion in the engine， preventing hydrocarbons from being directly discharged into the atmosphere.
Core Function
Vapor Collection and Transmission： Connecting the fuel tank and the activated carbon canister， transporting the fuel vapor (HC) generated by the fuel tank to the carbon canister to prevent it from escaping directly during high temperatures or when refueling.
Regenerative Transportation Channel： In specific engine operating conditions， the vapor from the activated carbon canister is transported to the intake manifold for combustion， achieving resource utilization and purification.
Pressure Balance Maintenance： Assisting in balancing the internal pressure of the fuel tank to prevent excessive pressure or vacuum suction of the fuel tank due to vapor accumulation.
