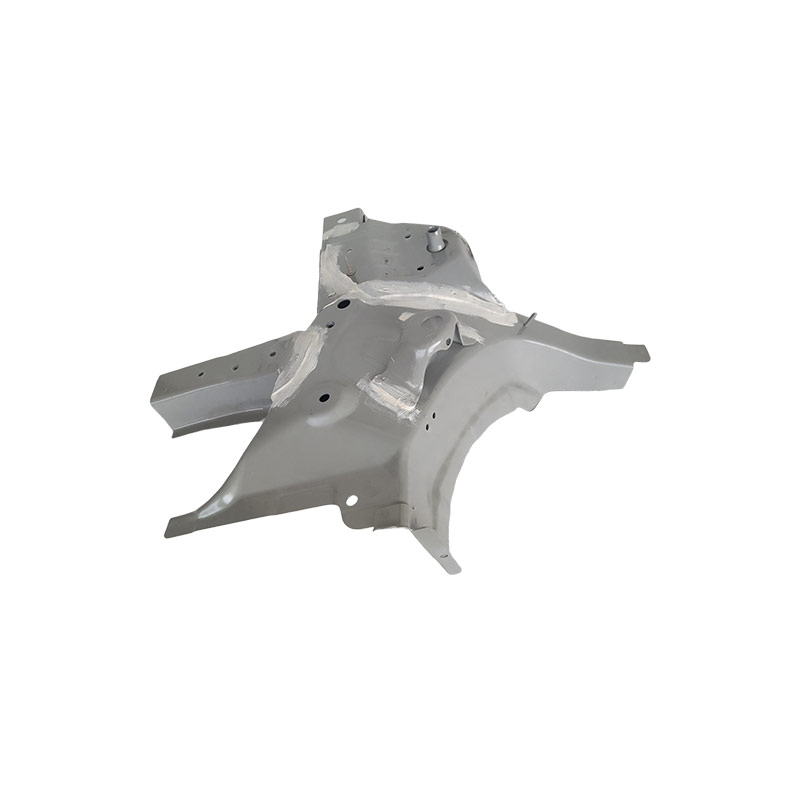

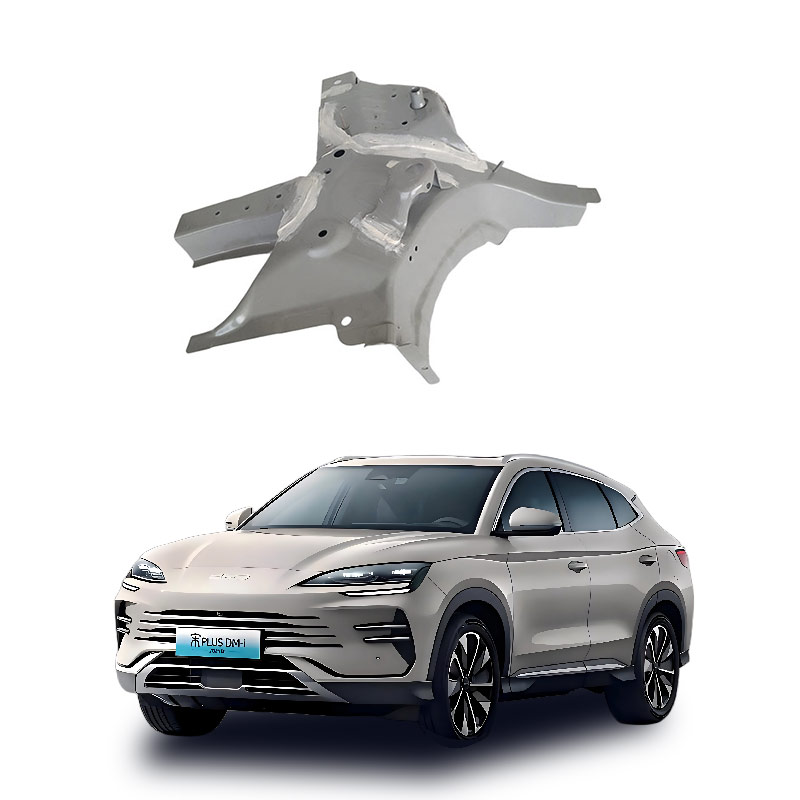

What is the rear joint of the left front longitudinal beam of the car?
The rear joint of the left front longitudinal beam of a car refers to the structural node where the rear end of the left front longitudinal beam is welded to the front panel (or the front cover plate/firewall crossbeam) of the vehicle. It is a key force transmission hub between the engine compartment and the passenger compartment.
Core definition and location
Essentially: It is a rigid welding joint point of the vehicle body frame, not an independent part, but a fusion area between the end of the longitudinal beam and the main structure of the vehicle body.
Location: It is located at the rear end of the engine compartment, in front of the passenger compartment, adjacent to the lower part of the firewall (front panel).
Connected objects: It is mainly connected by spot welding or continuous welding to the front panel assembly (including the front cover plate and the lower crossbeam), and some models also connect with the front edge of the门槛 beam.
Function： It transfers the frontal collision load from the longitudinal beam to the main channel and side panel of the vehicle body， preventing collapse penetration into the passenger compartment， and supporting the rear suspension points of the engine/transmission.
Technical features and identification significance
Process features： The original factory usually uses robot automatic spot welding or carbon dioxide protection welding， with uniform weld points and no burn marks； if there are cases of cutting and re-welding， abnormal glue layers， or missing weld points， it is very likely to be an accident-repaired vehicle.
Structural form： Commonly， it is in the box or trough-shaped end expansion joint form， and some models have design features such as collapse induction grooves or strengthening ribs to optimize the force transmission path.
Identification value： This part belongs to "structural components"， once deformed or repaired， it will seriously affect the rigidity and safety performance of the vehicle body， and is a core inspection point in the accident identification of used cars (different from replaceable energy absorption boxes or anti-collision beams).
Note： "Beam head" usually refers to the part where the longitudinal beam is connected to the energy absorption box at the front end， while "rear joint" specifically refers to the connection area at the rear end with the front panel， and their positions and functions are completely different.
The core function of the rear joint of the left front longitudinal beam of a car is to connect the longitudinal beam with the main body of the vehicle or the sub-frame， transfer longitudinal loads and collision forces， and serve as a structural stiffness node to ensure the torsional rigidity of the entire vehicle.
Core functions
Force flow transmission hub： It smoothly conveys the frontal collision impact force or road load from the front end of the longitudinal beam to the passenger compartment frame or sub-frame， avoiding stress concentration that may lead to fracture.
Structural rigidity node： Through welding or high-strength bolts to be firmly connected with the firewall， crossbeam， and other components， it enhances the vehicle body's torsional stiffness and maintains the geometric positioning benchmark of the suspension.
Collision energy management： Some designs in this area have strengthened plates or transitional structures to achieve "front soft and rear hard" graded energy absorption， preventing the collision force from directly invading the passenger compartment.
Assembly installation base： It provides an installation interface for key components such as engine brackets and transmission brackets， ensuring the accuracy of the position of the powertrain. Key features
Position Definition: Located at the end of the front longitudinal beam close to the firewall (front panel), outside the energy absorption crush zone (energy absorption boxes are usually at the very front of the beam), it belongs to the high-strength force transmission zone.
Damage Impact: If this area deforms or is improperly repaired, it will directly cause the engine to shift, incorrect four-wheel alignment, abnormal vehicle noise, and decreased vehicle sealing performance.
Identification Key Points: During the inspection of the accident vehicle, if there are cutting, welding, or severe crease repair marks here, it is usually determined as a major structural damage, which seriously affects safety and residual value.
Note: The front longitudinal beam has clear functional divisions front and rear. The front part (including the energy absorption box) is responsible for crush and energy absorption, while the rear joint is responsible for rigid force transmission and support. They work together.
