What is the front assembly of the left longitudinal beam of the car's front section?

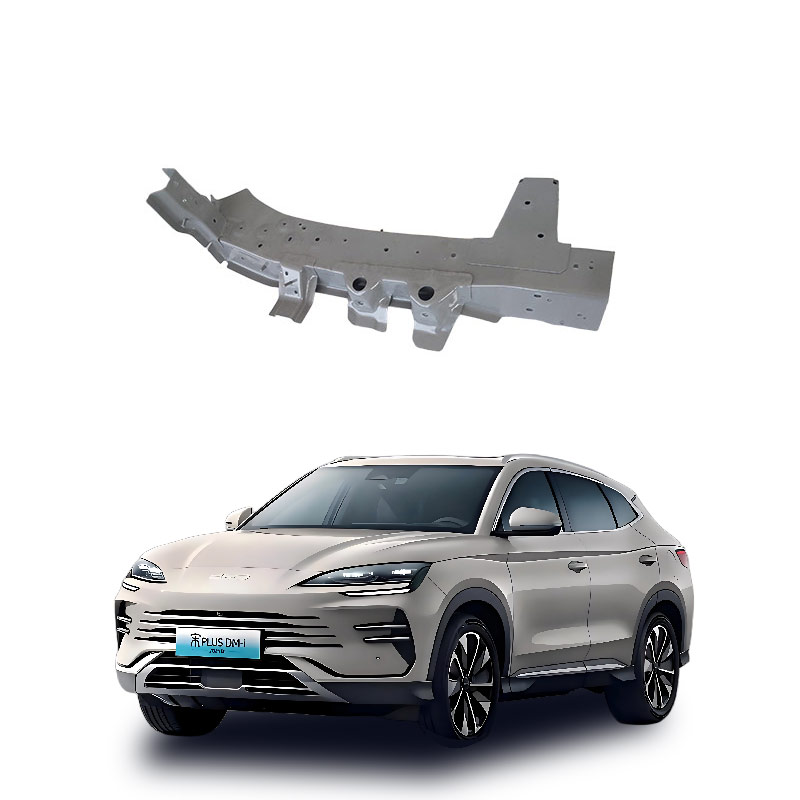

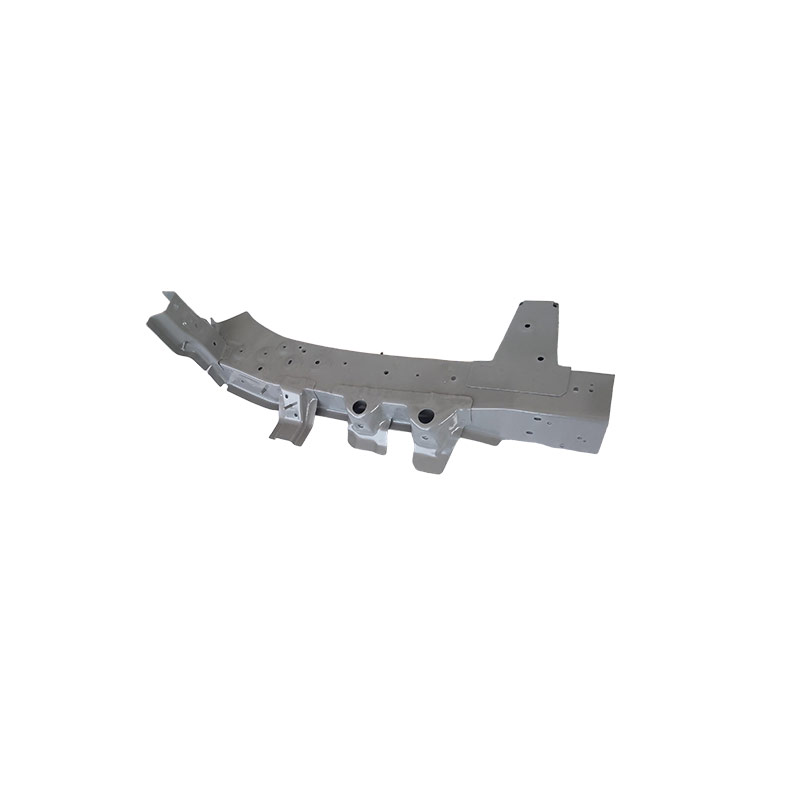

The front right longitudinal beam of the vehicle is composed of the components in the most forward area of the right front longitudinal beam. The core components include the energy absorption box, the front section of the longitudinal beam's outer and inner plates, the connection bracket and installation holes of the impact protection beam, and it serves as the first structural node for absorbing energy and transmitting force during a collision.
Core composition and functions:
- Energy absorption box (crumple zone): Located at the very front of the beam and connected to the impact protection steel beam. It collapses first during low-speed collisions to absorb energy and protect the main longitudinal beam from damage.
- Front section of the longitudinal beam: A welded assembly of inner and outer plates made of high-strength low-alloy steel, with a cross-section mostly in a slot or box shape. It is responsible for transferring the impact force backward to the vehicle frame.
- Connection interfaces: Include flange surfaces for bolt connections to the impact protection beam, installation points for the sub-frame or suspension system, and guiding slots or holes for directing the collapse direction.
- Main functions: In frontal collisions, it absorbs approximately 60%-70% of the initial impact energy through controlled collapse, while supporting the radiator, bumper, and front-end components of the engine.
Key feature explanations:
- Position definition: Located at the right front corner of the engine compartment, extending from the front impact protection beam to the rear of the front fender or the front section of the firewall, it is the front half of the "right front longitudinal beam assembly".
- Safety logic: Designed as "weaker than the main beam but stronger than the bumper", it ensures that the beam folds and collapses before the main beam during a collision, preventing the impact force from directly transmitting to the passenger compartment.
- Maintenance attributes: Damage to this part usually requires cutting and replacing the energy absorption box and the front section of the longitudinal beam. If the deformation extends to the rear section of the main beam, it involves the correction of the vehicle frame beams, directly affecting the vehicle's safety performance and residual value.
This component is a key part of the vehicle's safety frame, not an independent standard part, and is typically present in the vehicle repair system as the "right front longitudinal beam front assembly".
The core function of the front right longitudinal beam's front-end assembly is to connect the energy absorption box and the impact protection beam, forming the first "three-level energy absorption" channel in the frontal collision, and supporting the front suspension and engine accessory positioning.
Core functions and assembly logic:
- Collision energy absorption and transmission: Front end is connected through welding or bolts to the energy absorption box. During frontal collisions, it serves as the first collapse zone, guiding the beam to deform according to a predetermined path to absorb the impact energy and prevent the force from directly entering the passenger compartment.
- Structural support and positioning: As the main longitudinal load-bearing component of the vehicle frame, it provides a precise installation reference surface for the front suspension tower top, engine bracket, and steering gear, ensuring the dynamic balance of the vehicle.
- Load dispersion and guidance: The impact force at the front end is uniformly transmitted along the longitudinal direction to the front fender, threshold beam, and chassis crossbeam, avoiding local stress concentration that could lead to structural failure.
Key assembly component relationships:
- Energy absorption box: Located at the very front of the beam, specifically designed for low-speed collision collapse, protecting the beam itself from damage (low-speed repairable).
- Front impact protection beam: Installed on the outside of the energy absorption box, responsible for distributing the initial impact force and protecting components such as the radiator.
- Front crossbeam/ front fender: Connected to the rear end of the beam, forming a rigid frame, and the quality of the front-end assembly directly affects the overall vehicle torsional stiffness.
If this part undergoes collapse deformation, cutting, welding, or size deviation, it is considered a major structural damage, directly weakening the vehicle's passive safety performance.
