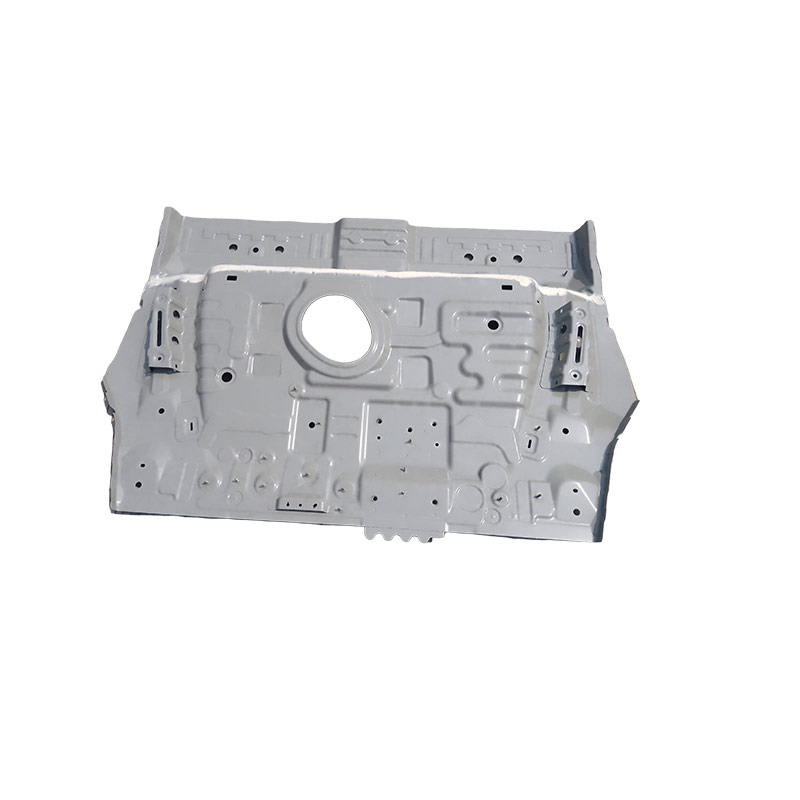

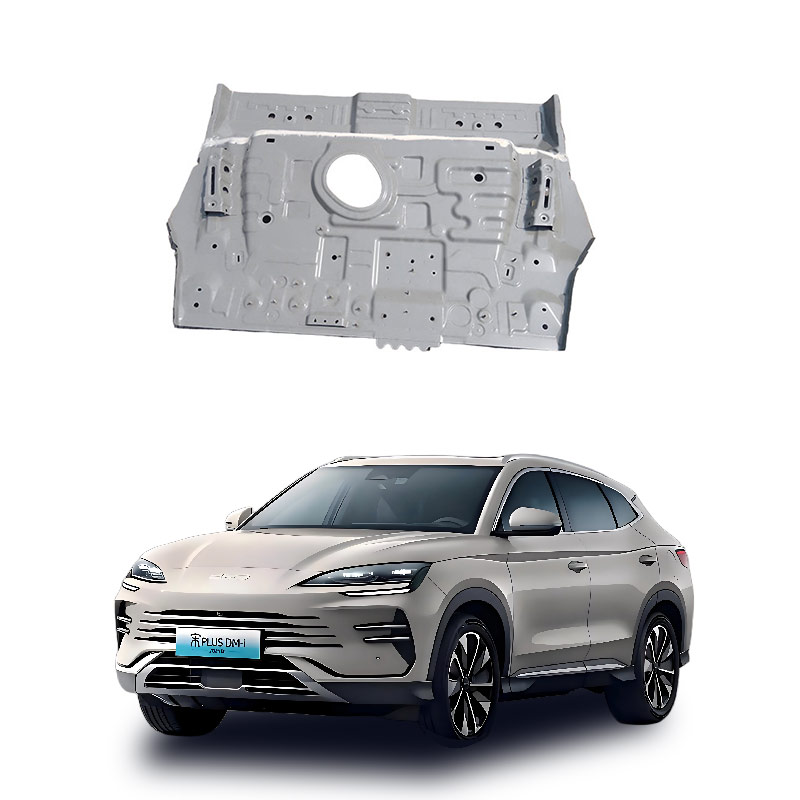

What is the automotive floor panel assembly?
The automotive floor panel assembly is the collective term for the main structural components that form the upper surface of the vehicle body floor. It is a key load-bearing structure of the white body and is responsible for supporting the weight of passengers and accessories, transmitting loads, and ensuring the rigidity and safety of the entire vehicle.
Core Definition and Composition
Professional Definition: Refers to the main metal panel components that form the upper surface of the vehicle body floor (Floor Panel), which is the core skin part of the "vehicle body floor assembly".
Structural Composition: Usually adopts a three-layer design concept of "outer panel + inner panel + reinforcement panel", including the front floor, middle floor (bottom of the passenger compartment), rear floor (bottom of the trunk), and their corresponding reinforcement ribs and crossbeam connection points.
Functional Positioning: As the main load-bearing component of the vehicle body, it withstands vibrations, impacts, and torques during driving, provides installation hard points for seats and seat belts, and affects the NVH (noise, vibration) performance and crash safety of the entire vehicle.
Main Classification and Location
Front Floor Panel: Located behind the engine compartment, it includes the front floor outer/inner panels and reinforcement panels, and requires reserved space for the transmission shaft, exhaust system, and front seat installation.
Middle Floor Panel: Located at the bottom of the passenger compartment, it is the largest main area, and is often integrated with the front/ rear floor and front/rear fender panels to enhance rigidity.
Rear Floor Panel: Located beneath the trunk, it bears the rear seats and luggage load, and is the key force transmission path for rear crash safety. It often integrates the rear longitudinal beam and crossbeam structure.
Distinguishing Explanation: Original Factory Structural Components vs. Modified Decorative Components
It is necessary to distinguish between Engineering Structural Components and Aftermarket Modified Components:
Original Factory Floor Panel Assembly: Refers to the structural components made of stamped steel plates or die-cast aluminum, welded to the vehicle bottom, which cannot be disassembled at will, and is related to vehicle safety.
Modified Floor Kit: The so-called "automotive floor" (such as aviation aluminum floor) on the market is actually a decorative assembly (including aluminum layer, PE core material, foot mats, etc.) covering the original vehicle carpet, and belongs to interior upgrade products, not the original structural components of the vehicle.
Car Floor Panel Assembly is the core load-bearing skin of the white body bottom, mainly playing four functions: bearing the weight of passengers and accessories, transmitting crash loads, maintaining vehicle rigidity and sealing, and providing a base for interior installation. Core function
Structural Load Bearing: As the main panel at the bottom of the passenger cabin, it directly supports the seats, interior components, and the weight of passengers, and works in conjunction with the longitudinal and transverse beams to withstand vibrations, impacts, and torques during driving.
Collision Safety Transmission Pathway: In frontal, side, and rear collisions, it serves as a key transmission path, distributing the impact force to the门槛梁， side panels， etc.， to ensure the integrity of the passenger cabin.
Stiffness and NVH Foundation： By using forming strengthening ribs or sandwich structures， the torsional and bending stiffness of the entire vehicle is enhanced. Combined with damping gel layers， vibrations and noises are suppressed， optimizing the quietness.
Sealing and Layout Platform： Ensures the airtight/waterproof performance of the bottom of the cabin and provides precise positioning and protection space for wiring， pipes， and suspension mounting points.
Composition and Characteristics
Definition and Positioning： Specifically refers to the main panel constituting the upper surface of the vehicle body floor (not the later-modified decorative floor mat)， a mechanical engineering standard term.
Typical Structure： Usually adopts a three-layer design of "outer panel + strengthening panel + inner panel" or an integrated die-casting process， with materials including high-strength steel， aluminum alloy， and composite materials to balance lightweighting and strength.
Distinguishing Explanation： Needs to be differentiated from the "aviation floor" or decorative floor mat used for aftermarket modifications， which only enhance aesthetics and ease of cleaning， and do not participate in the vehicle's load-bearing.
