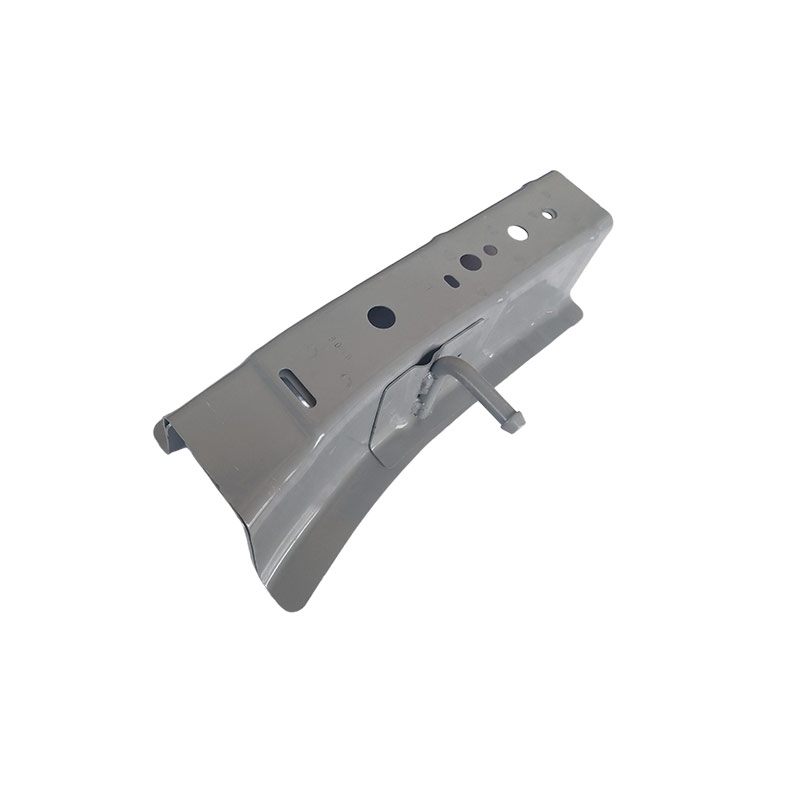

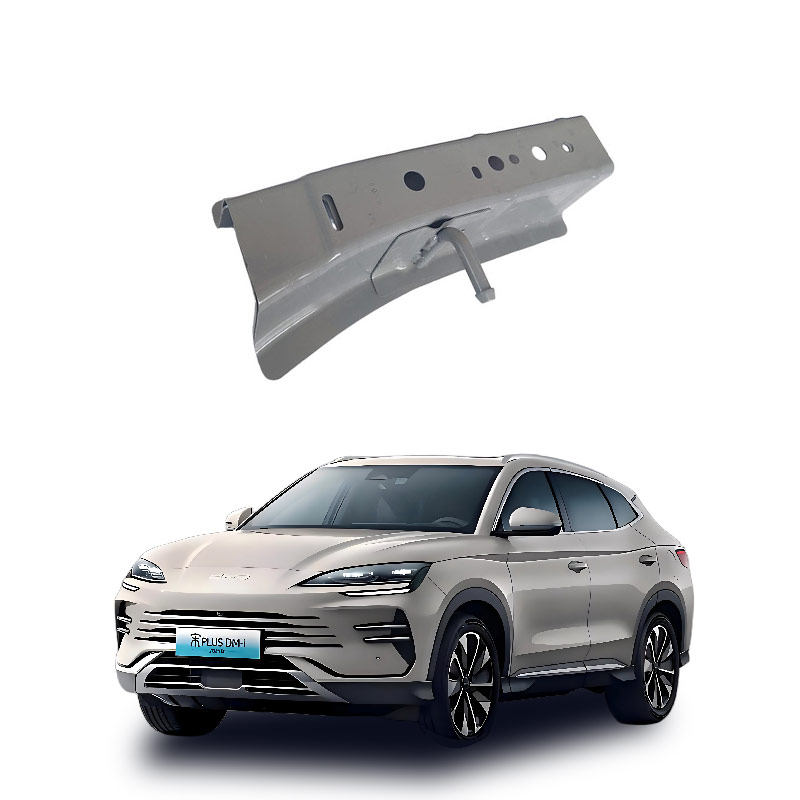

What are the rear end components of the left rear longitudinal beam of the car?
The rear end of the left rear longitudinal beam of the car is mainly welded or riveted to the rear panel (rear outer/inner panel), the rear crossbeam, and the energy absorption box (if connected to the rear bumper beam). For some models, it transitions to the rear floor assembly and the lower part of the C-pillar through dedicated connection flanges.
Core connection components
Rear panel assembly: The most direct structural connection object for the rear end of the beam, responsible for transferring longitudinal loads to the rear frame of the vehicle.
Rear crossbeam: It connects the rear ends of the left and right beams laterally, enhancing the torsional stiffness at the rear, and is often welded to the beam ends.
Energy absorption box/connector plate: If a rear bumper beam is configured, the rear end of the beam is first connected to the energy absorption box, and then fixed to the bumper beam by bolts or welding.
Rear floor assembly/wheel well inner panel: It is connected to the upper surface and side walls of the beam through flanges or strengthening components, forming an integral load-bearing structure.
Structural and functional description
The rear longitudinal beam is located at the bottom of both sides of the vehicle's rear end and is a key component for collision energy absorption and load bearing. Its "rear end" is not an isolated part but forms a rigid frame through welding, riveting, or integrated die-casting processes with the aforementioned components. In the context of repair, if the rear end of the beam is damaged, correction of the rear panel deformation or replacement of the energy absorption box is often involved; in manufacturing, some new vehicles adopt integrated die-casting technology to integrate the rear end of the beam with related brackets. Note: The specific connection methods vary depending on the vehicle type (sedan/货车/neon vehicle) and structural design (sidespan frame type/carrying type), and the precise part names need to be confirmed based on the specific vehicle repair manual.
The core function of the rear end assembly of the left rear longitudinal beam of the vehicle is to connect the energy absorption box/impact bar to transfer the collision load, to absorb the rear-end impact energy through controlled collapse, and to serve as the key installation base for the suspension/body components. Core function
Collision energy absorption and force transmission: The rear end is usually connected to the energy absorption box, which guides the longitudinal beam to deform along the designed path in a rear-end collision, dispersing the impact force to the vehicle frame and avoiding damage to the passenger compartment and the fuel tank/battery pack.
Structural support and positioning: As the terminal of the vehicle body rear frame, it provides rigid installation points for the rear suspension (such as tie rods, spring seats), spare tire frame or rear panel, ensuring the geometric accuracy of the chassis.
Lightweighting and modular integration: In modern designs, strengthening ribs or multi-point connection interfaces are often integrated to replace multiple independent parts, balancing weight reduction and node stiffness.
Key features
Position relationship: Located on the inner side of the left rear wheel and extending to the rear end of the vehicle, it is the core longitudinal component of the beam frame or the body shell of a non-enclosed vehicle.
Failure consequences: If this assembly (including the connection points) deforms or breaks, it will cause failure of collision energy absorption, inaccurate suspension positioning, and seriously affect the safety of secondary collisions and the repair value.
Maintenance warning: Damage to the rear end usually requires a complete replacement or professional beam alignment; welding repair is difficult to restore the original factory strength and energy absorption characteristics.
Note: "Rear-end assembly" in the maintenance context usually refers to the energy absorption box connection section or the assembly welding interface at the rear end of the longitudinal beam, not an independent detachable screw part. Its integrity directly determines the passive safety performance.
Fault of the rear-end assembly of the left rear longitudinal beam is a core structural component damage, requiring immediate disuse and sending it to a professional institution for inspection; slight deformation can be corrected, while severe folding or fracture must be cut and replaced, and simple sheet metal repair is strictly prohibited.
Core judgment and handling
Fault nature: The rear longitudinal beam is the vehicle's energy absorption and rigid frame, not an easily damaged part. The "rear-end assembly" fault of the beam usually refers to deformation, cracking or failure of the welding point caused by the collision, directly affecting the rear-end safety and the classification of used cars (accident vehicles).
Emergency measures: Immediately stop driving at high speed to avoid secondary stress; Do not perform heating correction or welding in unqualified repair shops to avoid metal fatigue fracture.
Maintenance principles: Damage <15° bending can be corrected by cold or hot methods; If there is folding, fracture, twisting over 15° or weld point tearing, it must be cut and replaced with a new part and re-laser positioned and welded.
Maintenance plan and process standards
Detection and evaluation: Use beam alignment instruments and three-dimensional measurement systems to compare with original factory data, with an error control within 2mm; supplemented by magnetic particle or ultrasonic flaw detection to confirm internal cracks.
Handling minor damage: Only for small-angle bending, use professional stretching equipment for cold correction, and after restoration, stress elimination treatment is required; Do not directly hammer or bake.
Replacement for severe damage: Cut the damaged section (retain sufficient welding allowance), match the original factory segmented or assembly parts; Use MIG inert gas protection welding or laser welding, strictly following the number and position of original factory weld points.
Quality inspection and acceptance: After repair, perform four-wheel alignment and road test to check for abnormal sounds and deviation; Must issue a structural component maintenance report and quality guarantee commitment.
Potential risks and impacts
Safety reduction: Improper repair will lead to failure of collision energy absorption in secondary accidents, significantly reducing the protection ability of the occupants; Insufficient vehicle rigidity may cause handling instability or high-speed shaking.
Concurrent damage: The rear end of the longitudinal beam is connected to the rear axle, suspension and fuel tank/battery pack brackets. Faults often accompany geometric changes of the suspension, abnormal tire wear or sealing failure and leakage.
Asset depreciation: Any longitudinal beam cutting replacement will define the vehicle as a "major accident vehicle", and the residual value of used cars usually drops by 30%-50%, and some insurance companies may refuse to cover the vehicle damage insurance. Special Note
If your vehicle is still within the warranty period or has just been involved in a collision, please contact the brand's 4S store first for damage assessment. When purchasing a used car, if you notice any cutting or welding marks in that area (such as overly thick paint, irregular weld points, or rough application of sealant), it is recommended to immediately abandon the transaction. For repairs, it is essential to choose a reputable institution with at least Class II qualifications and equipped with a beam alignment instrument.
