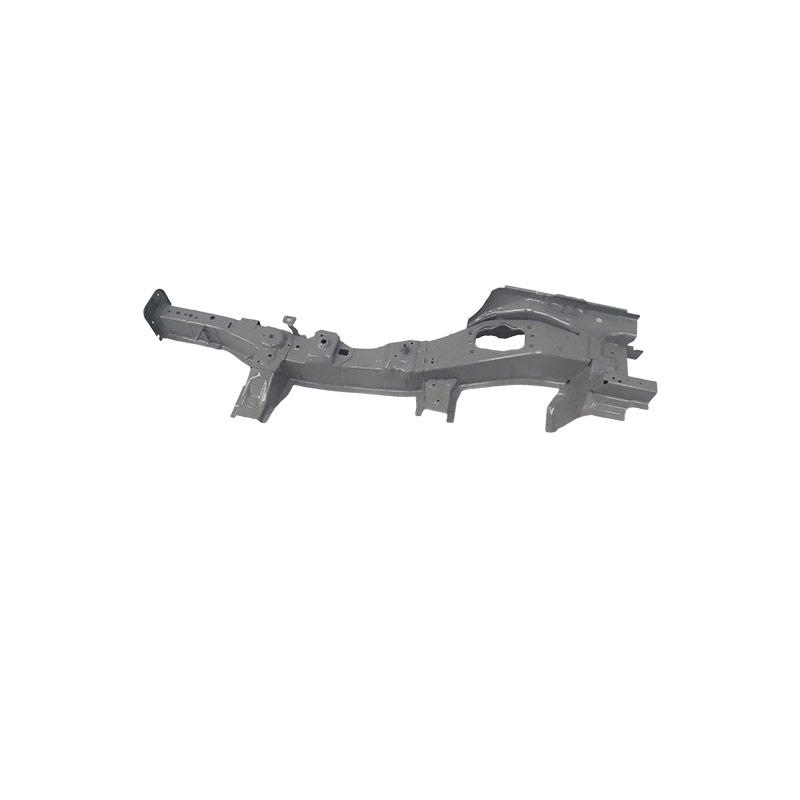

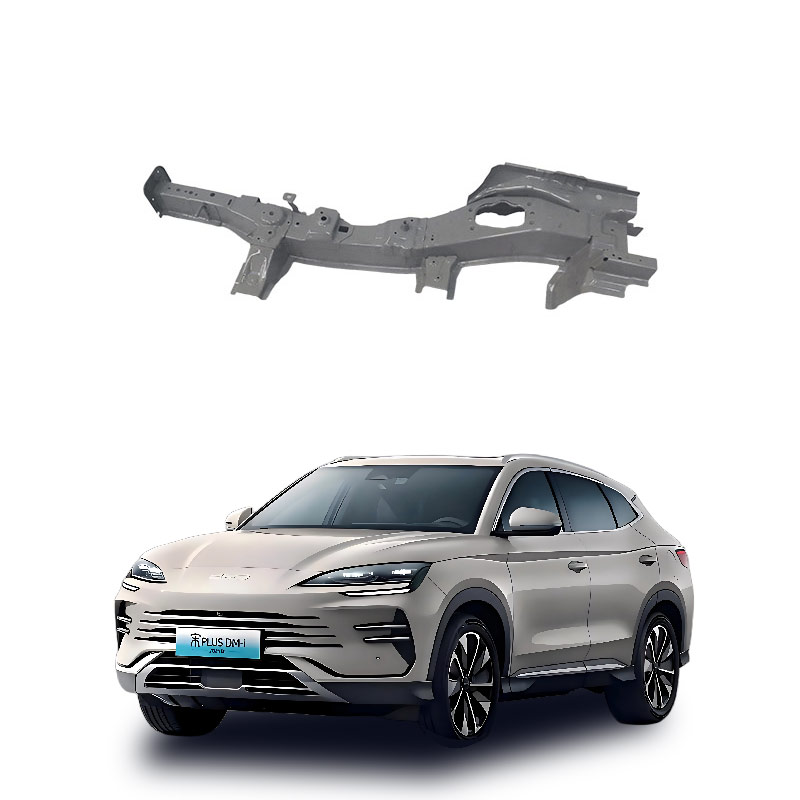

What is the rear longitudinal beam assembly on the right side of the car?
The rear longitudinal beam assembly on the right side of the car is a longitudinal load-bearing beam located at the right rear of the vehicle, connecting the rear impact structure with the vehicle body frame. Its core function is to support the rear structure of the vehicle and absorb energy during rear-end collisions to protect the passenger compartment.
Core Definition and Location
Name: Right Rear Side Member (Right Rear Side Beam / Floor Side Rail)
Location: Below the trunk of the vehicle, on the inner side of the right rear wheel, extending longitudinally along the vehicle body, symmetrically distributed to the left rear side beam
Properties: A key structural component of the frameless vehicle body or the load-bearing body, belonging to an inseparable part of the "white body"
Main Functions
Structural Load-bearing: Supports the trunk floor, suspension mounting points, and the weight of the rear part of the vehicle, maintaining the torsional stiffness of the entire vehicle
Collision Energy Absorption: During a rear-end collision, it collapses controllably (often in conjunction with an energy absorption box) to absorb the impact energy
Safety Protection: Blocks the impact force from directly transferring to the passenger compartment, fuel tank, or battery pack, preventing structural intrusion
Construction and Materials
Form: The cross-section is mostly in a trough shape, I-beam shape, or box structure. Some models adopt variable cross-section design to optimize energy absorption
Material: Mainly high-strength low-alloy steel (such as HC340-590DP duplex steel), or aluminum alloy for high-end or electric vehicle models to reduce weight and improve efficiency
Connection: The front end is usually connected to the rear impact beam through an energy absorption box, and the rear end is welded to the vehicle floor and cross beams to form a rigid frame
Maintenance and Evaluation
Damage Impact: If it is bent or broken, it will cause incorrect four-wheel alignment, abnormal driving sounds, and a decline in safety, serving as the basis for major accident vehicle evaluation
Repair Limitations: Severe deformation requires professional beam correction equipment for stretching or overall replacement, but the strength after repair is difficult to reach the original factory level, and it is usually recommended to directly replace the assembly
Core Role of the Right Rear Side Beam Assembly: It bears the longitudinal load and supports the vehicle/chassis structure, and during rear-end collisions, it collapses controllably to absorb impact energy to protect the passenger compartment and key components.
Core Functions
Structural Load-bearing and Rigidity Maintenance: As a key longitudinal component of the frameless vehicle body or load-bearing body, it supports the trunk floor, rear suspension, and the weight of the rear part of the vehicle, working in coordination with the cross beams to enhance the torsional stiffness and driving stability of the entire vehicle.
Collision Energy Absorption and Safety Protection: During a rear-end collision, it collapses controllably (often in conjunction with an energy absorption box) to convert the impact energy into deformation work, preventing the impact force from directly transferring to the passenger compartment, fuel tank, or battery pack.
Installation Reference for Components: It provides precise installation positioning for the rear bumper, rear fenders, suspension system, etc., ensuring the accuracy of the vehicle body geometry parameters.
Key Characteristics
Location Layout: Located on the inner side of the right rear wheel, below the trunk floor, usually symmetrically distributed to the left rear side beam.
Material and Process: Mostly uses high-strength low-alloy steel (such as duplex steel) or aluminum alloy, balancing strength, lightweighting, and collision energy absorption efficiency.
Maintenance Warning: If there is severe deformation, it requires professional correction or replacement. After repair, it is difficult to fully restore the original factory strength, directly affecting the subsequent collision safety and four-wheel alignment data.
