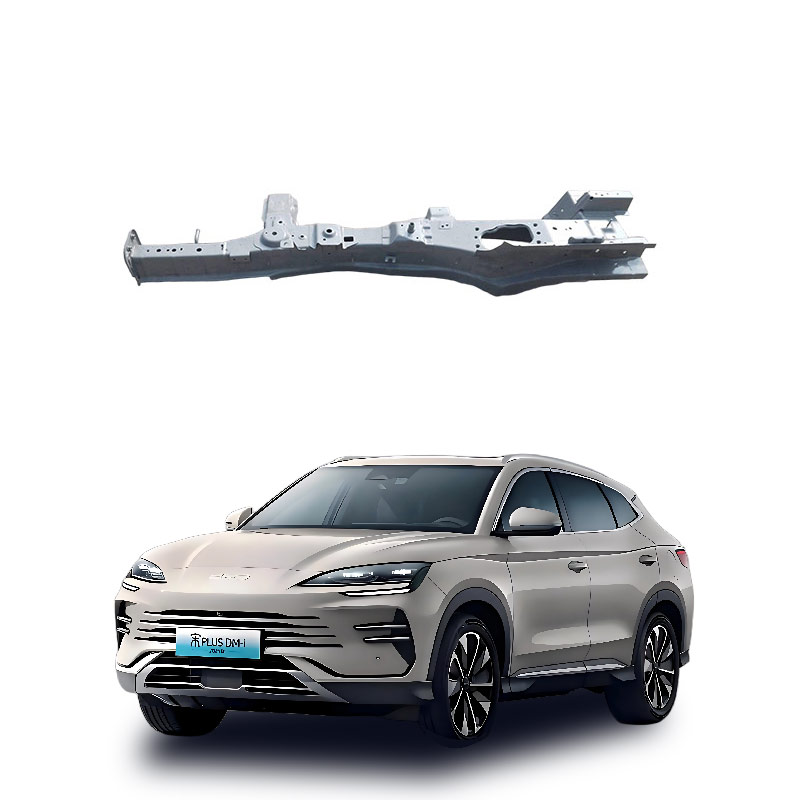

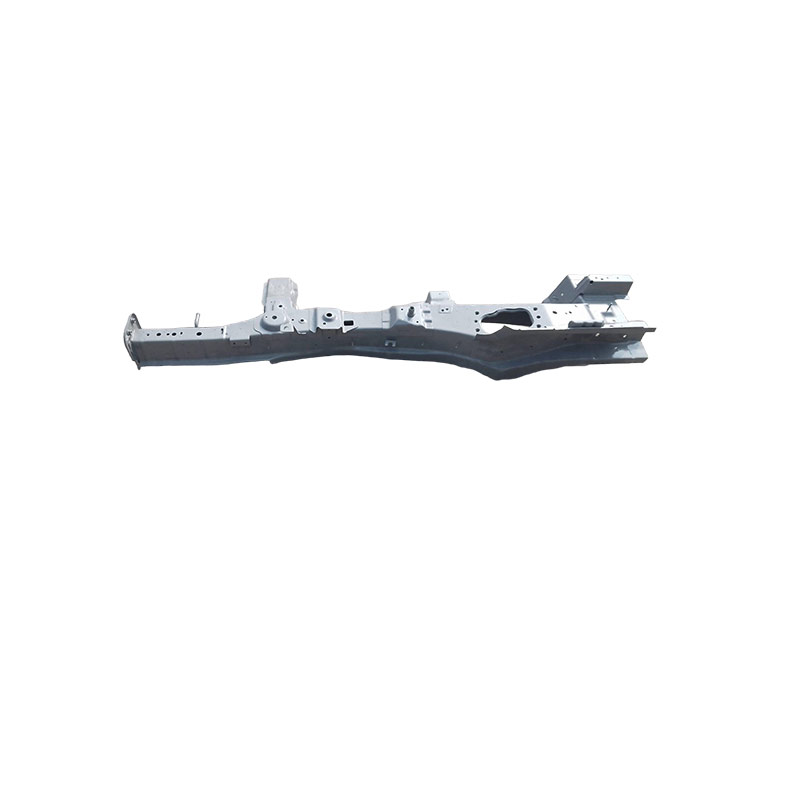

What is the left rear longitudinal beam assembly of the car?
The left rear longitudinal beam assembly is a core load-bearing component located on the left side of the vehicle's rear, connecting the vehicle body frame and the rear impact beam. It is responsible for bearing the weight of the vehicle and protecting the passenger compartment and key components during rear-end collisions by absorbing energy through deformation.
Core Definition and Location
Definition: The left longitudinal main beam assembly of the "side beam type" or monocoque vehicle body frame at the rear of the vehicle, typically including the main beam itself, reinforcing elements, and auxiliary structures such as energy absorption boxes.
Location: Hidden beneath the trunk floor, distributed longitudinally on the left side of the spare tire well, welded to the vehicle floor/side panel at the front end, and connected to the rear impact beam at the rear end.
Alternative Names: Left Rear Side Member, Left Floor Side Rail. Main function
Supporting and Bearing: Supports the weight of the upper structure of the vehicle rear and transmits longitudinal loads, maintaining the torsional stiffness of the vehicle body.
Collision Energy Absorption: In the event of a rear-end collision, cooperates with the energy absorption box to undergo controlled crushing deformation, absorbing impact energy and preventing the impact force from directly invading the passenger compartment.
Component Installation Base: Acts as an installation and fixation point for key components such as the rear suspension, fuel tank (for fuel vehicles) or battery pack (for electric vehicles).
Structure and Materials
Shape: The cross-section is mostly in a trough shape, box shape or I-shape. Some models adopt variable cross-section design to optimize the force distribution.
Material: Traditionally, it is mostly high-strength low-alloy steel (such as DP590 duplex steel), while high-end or lightweight models use aluminum alloy (such as AlSi10MnMg) for integrated die-casting.
Component Composition: Besides the main beam, modern components often integrate internal strengthening pieces, welding nuts and collision collapse-inducing grooves.
Maintenance and Safety Tips
If this component bends, fractures or folds during an accident, it is considered astructural damage. Repair requires the use of professional beam correction instruments, but even after correction, its metal lattice structure has changed, and the strength usually cannot fully recover to the original factory level. This will directly affect the vehicle's handling stability, four-wheel alignment data and secondary collision safety. In severe cases, it is often recommended to cut and replace rather than perform sheet metal repair.
The left rear longitudinal beam component is the core load-bearing structure of the vehicle's rear end, mainly responsible forsupporting the vehicle body/suspension load,rear-end collision energy absorption protection cabin andkey component installation fixation.
Core Function
Structural Bearing and Rigidity Maintenance: As the longitudinal main beam of the frame or the body structure skeleton, together with the crossbeam, it forms a rigid frame, supporting the weight of the vehicle rear (such as the trunk load), maintaining the torsional stiffness of the entire vehicle, and ensuring driving stability and four-wheel alignment benchmark.
Collision Energy Absorption and Passenger Protection: In a rear-end collision, through the preset crush zone deformation, it absorbs impact kinetic energy, disperses the impact force, and prevents the energy from directly transferring to the passenger compartment, fuel tank or battery pack, reducing the risk of injury.
System Installation and Positioning Reference: Provides precise installation points for the rear suspension system (such as shock absorbers, control arms), exhaust system and fuel/battery systems. Its geometric accuracy directly affects handling and safety.
Key Characteristics
Positioning Layout: Located on the left rear wheel inner side and under the trunk floor, distributed symmetrically (left rear longitudinal beam and right rear longitudinal beam).
Material Process: Mostly uses high-strength steel (such as duplex steel) or aluminum alloy stamping/pressing, balancing lightweight and impact resistance performance.
Safety Warning: If severely deformed due to a serious collision, professional correction or replacement is required; improper repair will weaken the vehicle's rigidity, affecting subsequent collision safety and handling data.
