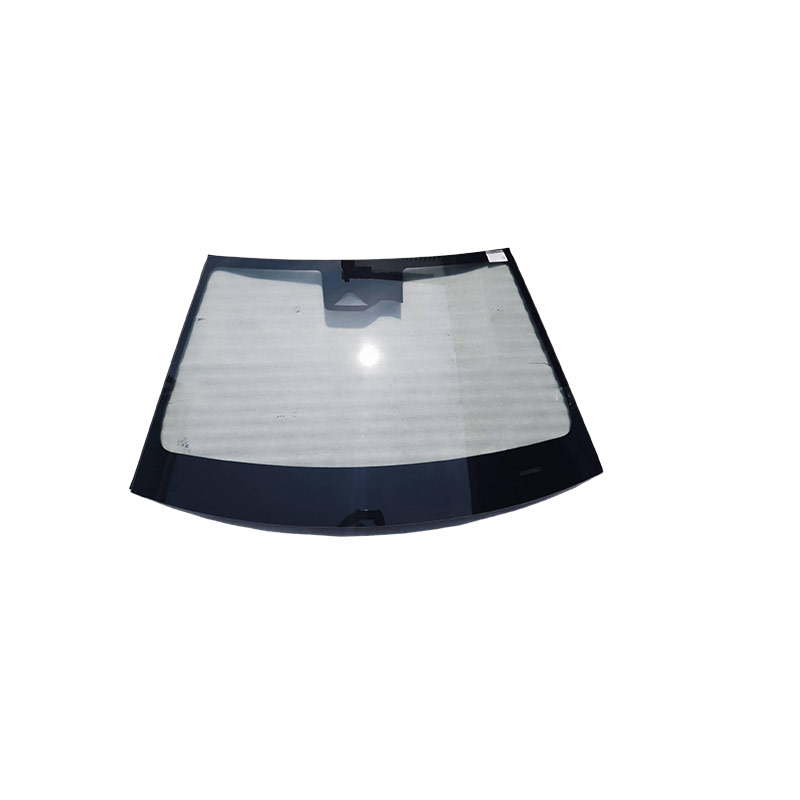

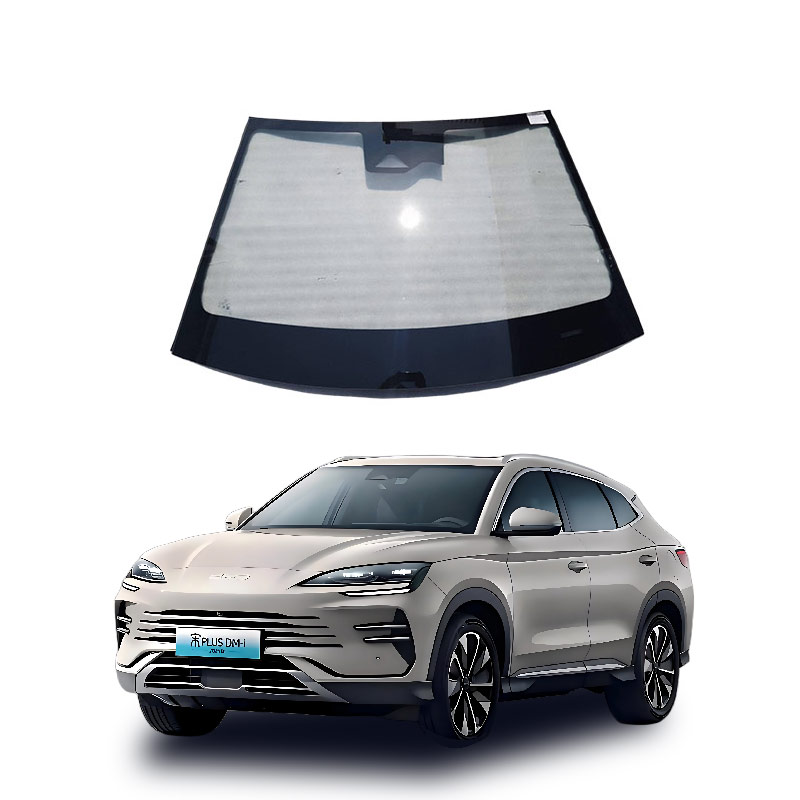

What is the front windshield assembly of a car?
The automotive front windshield assembly refers to the core safety component installed at the front of the vehicle, which is composed of a laminated safety glass core and surrounding functional/structural parts. It not only provides visual protection but also offers collision protection and intelligent interaction capabilities.
Core Components and Materials
Glass Core: The mainstream type is laminated glass (accounting for over 90%), featuring a sandwich structure of "two layers of glass + middle PVB film", with the fragments adhering and not flying off when broken, and the transmittance is mandatory ≥ 70%.
Adhesive Sealing System: This includes polyurethane structural adhesive and sealing strips, responsible for fixing the glass to the vehicle frame and ensuring watertightness and structural strength.
Functional Integration Layer: Some components are equipped with heating wires (for defrosting), printed circuits (to power sensors), antennas (5G/ADAS) or HUD projection coatings.
Auxiliary Decorative Parts: Commonly include the top sunshade (with black dot areas) and the front windshield lower trim (rainwater collection plate), used to shield the wiper motor, guide drainage, and beautify.
Key Characteristics and Differences
Safety: Maintains clear vision during impact, has a penetration resistance more than 5 times stronger than ordinary glass, and is one of the three major safety elements alongside seat belts and airbags;
Material Differences: Unlike single-layer tempered glass commonly used in side windows/hoods, the front windshield must not use tempered glass alone (as it would completely shatter and lose visibility);
Intelligent Evolution: Modern components have evolved from simple protection to intelligent interaction carriers that carry cameras, rain sensors, and AR-HUD information. Core function
Vision Assurance: Provides high light transmittance curved vision, with an inclined design to avoid image overlap, ensuring clear observation of road conditions by the driver.
Physical Protection: Prevents sand, rain, insects, and flying debris from entering the vehicle; uses laminated safety glass (PVB film), with fragments adhering together and not splashing during impact, preventing injuries to passengers.
Structural Support: As a load-bearing component of the vehicle body, enhances the roof's compressive strength, supporting the vehicle structure during rollover accidents to prevent collapse.
Environmental Comfort: Blocks ultraviolet and infrared rays (some high-end products have a separation rate of over 99%), reduces noise transmission, and improves the quietness and thermal comfort of the ride.
Expansion and Intelligent Functions
Safety Constraint Assistance: Works with airbags, serving as a support surface for airbag rebound, ensuring the correct deployment of airbags to protect passengers.
Intelligent Integrated Carrier: Modern vehicles integrate head-up displays (HUD/AR-HUD), rain sensor, 5G antenna, and heating and defogging functions, becoming the intelligent driving interaction interface.
Components Failure of the Front Windshield Glass
Mainly divided into two categories: "cracked and cracked" and "unusual noise and loosening". The damage level needs to be judged to determine whether to "repair" or "replace". Unusual noises are mostly caused by aging or loosening of sealing strips, friction between instrument panel parts, dust accumulation on the windshield cover plate, or loose installation.
Core Judgment and Disposal Principles
Cracked Type: Only the outer layer is damaged and does not penetrate the laminated layer, with a crack length of ≤ 30cm (or a point diameter of ≤ 2.5cm), a distance from the edge of ≥ 6cm, not in the main vision area, can be repaired with professional resin (strength recovery approximately 90%); otherwise, it must be replaced.
Unusual Noise Type: Mostly caused by aging or loosening of sealing strips, friction between instrument panel parts, dust accumulation on the windshield cover plate, or loose installation. Cleaning, tightening, or replacing the sealing parts is required. Severe loosening requires re-gluing and reinstallation.
Emergency Handling: In case of sudden cracks while driving, reduce speed and exit the lane to avoid sudden braking or sharp steering; small cracks should not be washed with water to prevent expansion.
Common Fault Types and Solutions
Crack/Break Point
Repairable Conditions: Diameter of bullseye/star-shaped damage < 2.5cm, linear crack < 30cm, no layering water ingress, avoiding the main vision area of the driver.
Must Replace Situations: Crack extending to the edge, simultaneous cracking of double-layer glass, severe distortion of the main vision area, water ingress and mold in the laminated layer.
Unusual Noise (Beeping/Chirping/Squeaking)
External Friction: Dust accumulation between the windshield cover plate and the glass, friction of the drainage groove mud → Clean the groove dust or have it cleaned at a professional store.
Internal Resonance: Aging or detachment of the sponge strip/sealing strip between the instrument panel and the glass, loose internal screws → Re-pressure fitting, replace the sealing strip or tighten the parts.
Installation Issues: Newly replaced glass not cured, glue not pressed tightly causing loosening → Check the installation specifications, and reinstall if necessary with additional glue.
Natural Cracking
Causes: Sudden temperature change (shower after sun exposure), uneven stress of poor-quality anti-burst film, poor glue quality or imbalance of original factory assembly
Countermeasures: Structural cracking caused by external force is usually not repairable, and the entire replacement is required along with the investigation of the installation process.
Maintenance Decision Flow
Observe the shape and location of the damage: Is it in the main vision area? Does it penetrate the laminated layer? Is the length/diameter exceeded?
Listen to the source of unusual noise: Is it continuous when stationary/moving? Does it change with temperature/weather conditions? Is it eliminated by pressing surrounding components?
Time Evaluation: If the damage exceeds two weeks, dust and layering are likely to occur, suggesting direct replacement; if the unusual noise persists for a long time, it may lead to complete failure of the seal and water leakage.
Channel Selection: For minor damage, choose a professional glass repair store (retaining the original factory seal); for replacement, prioritize original factory or certified brand glass, avoiding excessive recommendation of full replacement by 4S stores. If you are unable to determine the extent of the damage or the cause of the abnormal noise by yourself, it is recommended that you go to a store with specialized glass repair qualifications for vacuum injection testing or road test diagnosis. Do not attempt to handle structural cracks with makeshift methods such as toothpaste.
