What is the rear brake guard assembly of a car?
The "rear brake guard assembly" of a car is not a single standard part name. It usually refers to the brake base plate in drum brakes or the dust and splash guard on the back of the brake disc in disc brakes, used to support the braking mechanism or prevent dirt and water from entering.
Core Definition and Classification
Brake Base Plate (Drum Brake): A large stamped steel plate fixed on the rear axle, serving as the installation base for components such as brake shoes and wheel cylinders, and also having the functions of dust and water prevention. It is the core "guard plate" of the rear drum brake system.

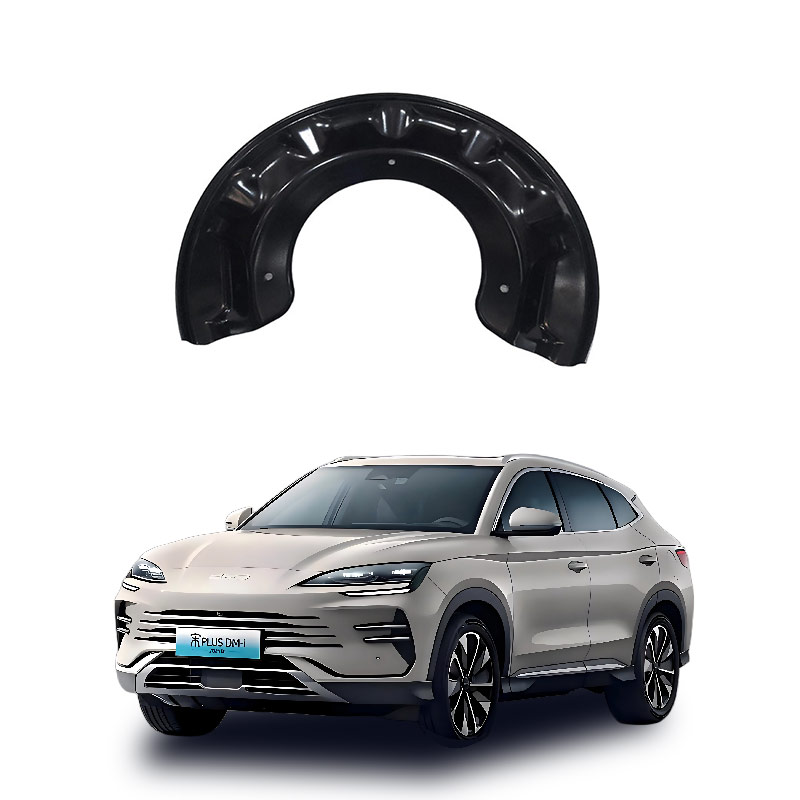

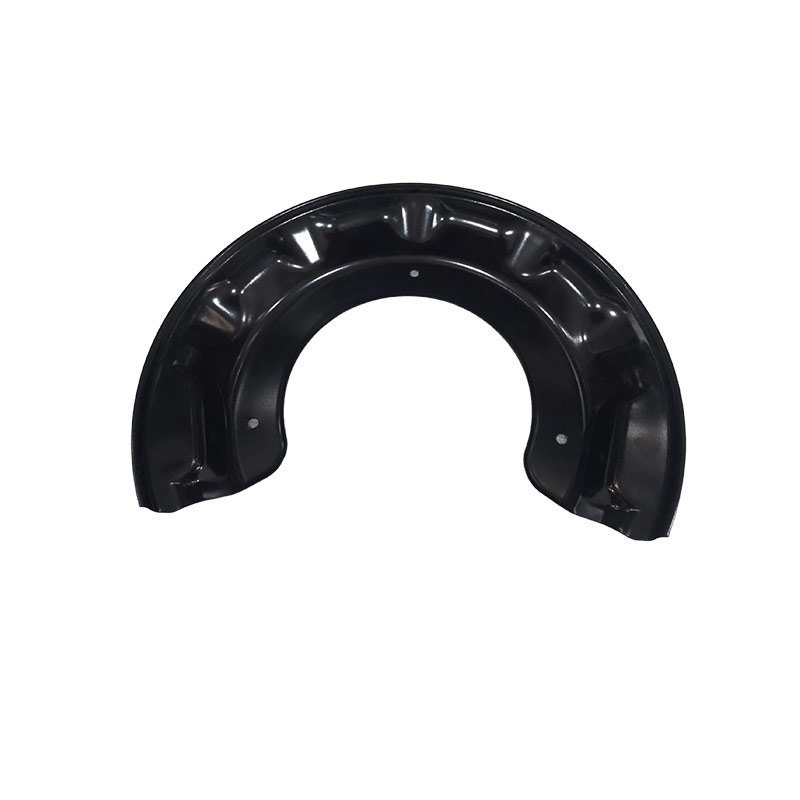

Brake Disc Dust Guard (Disc Brake): A thin metal disc located on the inner side of the brake disc (close to the suspension side), mainly preventing direct contact of dirt and salt with the back of the brake disc and the caliper guide pin. Some models also have a heat dissipation and air flow guiding function.
Clarification of Non-Standard Terminology: This term is often mistakenly used to refer to "rear fender" (a body structure component located at the rear of the trunk) or the chassis guard plate, which have no direct mechanical connection with the braking friction system. Main function
Structural Support: Provides a rigid fixation reference for the return spring of the brake pad and the slave cylinder (only limiting the movable base plate).
Protection Isolation: Forms a physical barrier to reduce the erosion of flying stones, mud, and water during driving on the internal precision components of the braking system.
Safety Assistance: In the drum structure, the edge design often forms a "maze" seal, reducing the risk of brake failure.
Common Misconception Tips
If it involves repair quotations or accessory purchases, it is necessary to confirm the rear-wheel braking form of the vehicle (disc or drum type): Disc-type vehicles are mostly equipped with a "dust cover" (which is prone to deformation but not a critical load-bearing component), while drum-type vehicles have a "brake base plate" (a key safety component, deformation will cause abnormal braking sounds or failure).
The core function of the rear brake guard (usually referring to the brake disc dust cover/back plate) is to protect the brake disc from foreign object impacts and corrosion, to prevent dust and oil from invading the friction surface, to assist in heat dissipation and ventilation, and to reduce braking noise. Core function
Physical Protection: Prevent stones and sand kicked up by the tires during driving from directly impacting the inner side of the brake disc (where there is no tire obstruction), thus avoiding scratches or deformation on the disc surface.
Dust and Stain Prevention: Form a barrier to reduce the attachment of dust, mud, and deicing agents on the brake disc and caliper components, preventing impurities from mixing into the brake pads and causing a decrease in braking force or abnormal wear.
Auxiliary Heat Dissipation: Some designs utilize the airflow generated by rotation to guide heat away from the braking area, preventing high-temperature blockage.
Noise Reduction and Shock Absorption: As a sound insulation/sound reduction component, it alleviates the abnormal noise generated by metal resonance during braking.
Common Misconceptions Clarification
Non-Chassis Guard Plate: Different from the "chassis guard plate" under the engine or battery (for preventing bottoming out), the brake guard plate is an exclusive component of the braking system, installed closely to the brake disc.
Non-Boot Guard Plate: Not referring to the scratch guard at the rear compartment threshold, which belongs to the exterior protection component of the vehicle.
If this component is missing or severely rusted and deformed, although it may not immediately cause brake failure, it will accelerate the wear of the brake disc, increase the risk of abnormal noise, and increase the probability of damage to the braking system in adverse road conditions. It is recommended to conduct regular checks.
Core Fault Manifestation of the Component Failure
Metal Friction Noise, Deformation of the Guard Plate Scratching the Brake Disc or Loose Screws Falling Off, which requires immediate investigation and correction or replacement to prevent brake failure.
Core Fault Manifestation and Causes
Noise Characteristics: A "sizzling" metal friction sound is emitted when driving or lightly pressing the brake, and the sound changes or disappears when releasing the brake.
Main Causes: The guard plate deforms due to vibration/impact, gets close to the brake disc, the fixing clips/screws become loose, internal debris accumulate, or installation is improper, causing scraping.
Potential Risks: Long-term scraping can lead to abnormal wear of the brake disc, poor heat dissipation, and in extreme cases, cause brake locking or the guard plate detachment, resulting in secondary damage to the chassis.
Diagnosis and Handling Steps
Visual Inspection: Lift the vehicle and check if the rear wheel guard plate has obvious dents or cracks, confirm if the gap between it and the brake disc is normal, and check for any friction marks.
Tightening Test: Check if the guard plate fixing screws and clips are loose, and retighten the loose parts to the standard torque (usually 8-10 N·m).
Correction or Replacement: If the guard plate is slightly deformed, try to "correct and reset"; if there is a through crack, a broken installation point, or the scraping still occurs after correction, it must be replaced with a new part.
Remove Foreign Objects: Clear the stones, rust chunks, or worn debris between the guard plate and the brake disc, and test if the noise disappears.
Maintenance Suggestions
Drivers on non-paved roads should shorten the inspection cycle to every 20,000 kilometers, and after rain or snow, it is recommended to clean the chassis and check the condition of the guard plate.
If the noise cannot be resolved by self-adjustment, or accompanied by soft braking or dragging brakes, it may involve deeper faults such as "backing pump return failure", and it is necessary to immediately go to a professional repair shop for a comprehensive detection of the braking system.
