What are the components of the vehicle's front module?

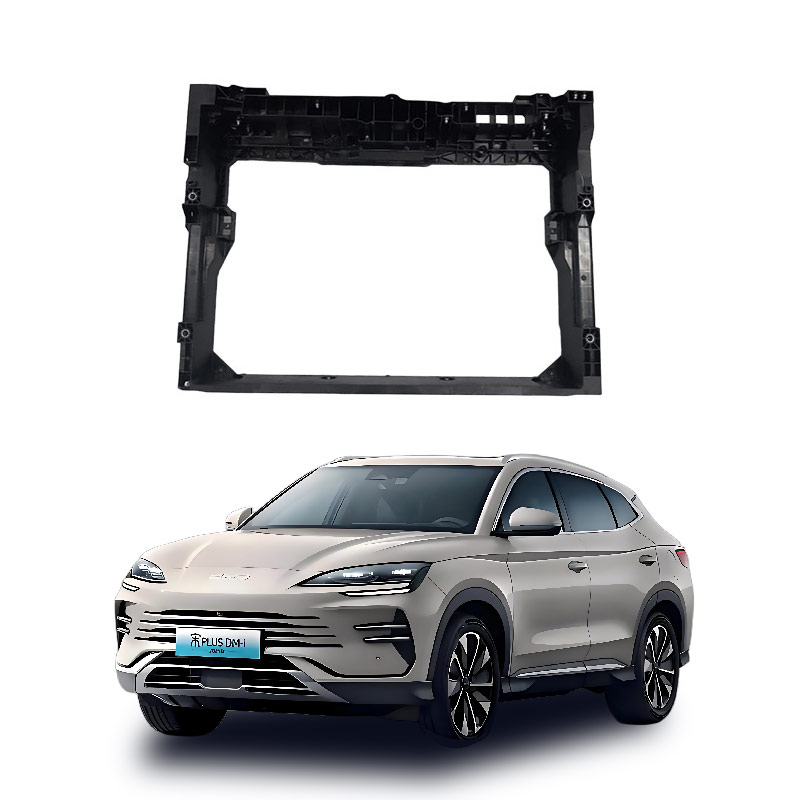

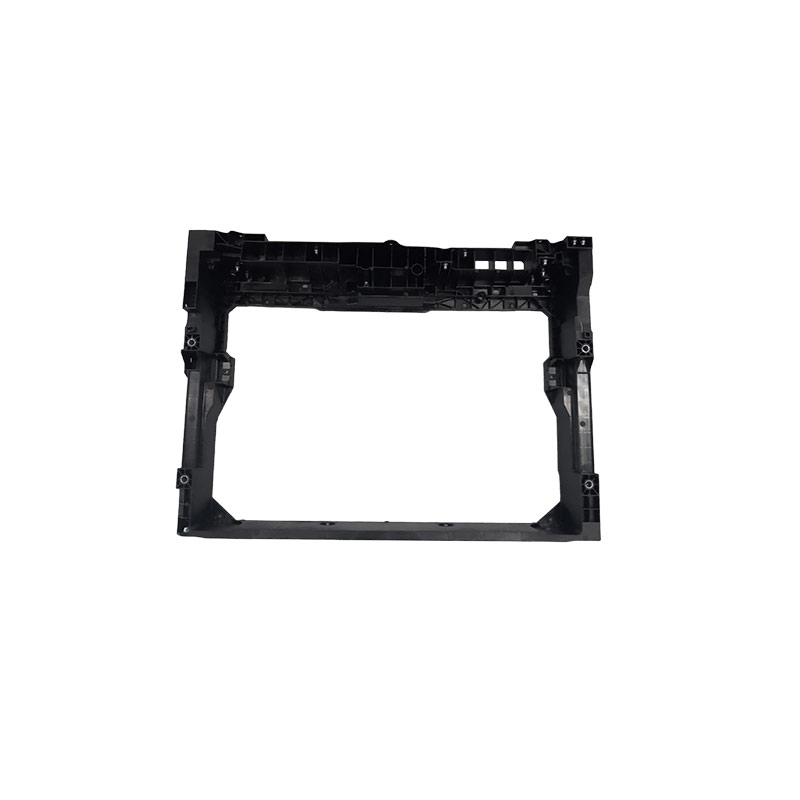

The Front End Module (FEM) is a systemized structural component integrated into the vehicle's front end, assembling scattered components such as radiators, headlights, and impact beams into a single assembly. Its purpose is to enhance assembly efficiency, reduce weight, and improve collision safety.
Core Definition and Function
Essentially, it is not a single part but an integrated subsystem formed by a framework (plastic/metal/composite material) that supports multiple sub-components.
Function: It replaces the traditional 100+ scattered installation points, enabling "module assembly line integration", shortening the production line length, and improving precision and consistency.
Key Value: Lightweighting, optimizing aerodynamics, managing collision energy absorption, and integrating thermal management and sensor layout.
Main Components
The FEM typically includes the following core components (fixed by dedicated brackets/frameworks):
- Thermal Management System: Radiators, condensers, intercoolers, and fan frames.
- Lighting and Signals: Front lamp assemblies, daytime running light brackets.
- Safety and Structure: Impact beams, energy-absorbing buffer blocks, engine compartment covers, and bumper crossbeams.
- Appearance and Covering: Air intake grilles, some models' fender connectors, sensor installation positions (radar/camera).
- Accessories: Air dam covers, wire harness retention clips, etc.
Common Misconceptions Clarification
It is important to distinguish between automotive mechanical components and electronic control units:
- Front End Module (FEM): Refers to the above physical assembly located outside the vehicle's front end.
- Front Electronic Module (FEM): The electronic control box (located inside the dashboard) in specific models, responsible for the vehicle's circuit gateway and fuse management, unrelated to the vehicle structure module.
The FEM is a pre-assembled assembly integrating core components such as radiators, headlights, grilles, and bumpers. Its core functions are thermal management, aerodynamic optimization, collision energy absorption, and improving assembly efficiency.
Core Components and Their Specific Functions
- Thermal Exchange System (Radiators, Condensers, Intercoolers, Fans): Responsible for cooling the engine and battery/motor systems, maintaining thermal balance, and ensuring efficient operation of the powertrain and air conditioning system.
- Aerodynamic Components (Active Air Intake Grilles, Deflector Covers): Dynamically adjust intake volume and air flow paths, reduce drag coefficient, optimize cooling efficiency, and reduce noise.
- Structural and Safety Components (Impact Beams, Buffer Blocks, Framework, Engine Compartment Locks): Provide front rigidity support, absorb impact energy during collisions to protect the passenger compartment, and fix precision components such as headlights.
- Appearance and Lighting Components (Front Lamps, Bumper Panels, Grille Decorations): Achieve vehicle lighting and signaling functions, define the front appearance, and serve as the first buffer for pedestrian protection.
- Sensor and Electronic Integration Positions: Provide standardized installation bases for intelligent driving sensors such as radars and cameras, ensuring sensing accuracy.
The overall value of modular integration
- Enhancing Assembly Efficiency: Pre-assembling traditional 100+ loose parts into a single module, significantly shortening the assembly line length of the OEM and reducing line inventory.
- Improving Quality Consistency: Assembling in a controlled environment by suppliers, reducing human errors and improving the accuracy of component fits (such as the gap between headlights and grilles).
- Lightweighting and Cost-effectiveness: Using composite material frameworks instead of some metal structures to reduce the weight of the front end, improving energy efficiency, and reducing mold and manufacturing costs through universal design.
- Improving Human-Machine Engineering: Allowing the engine to be installed from the front or enabling workers to operate in a more comfortable posture, simplifying complex assembly processes. Note: Please do not confuse the "front end module (FEM)" in the automotive field with the "radio frequency front end module (FEM)" in the field of electronic communications. The application scenarios and functions of these two are completely different.
