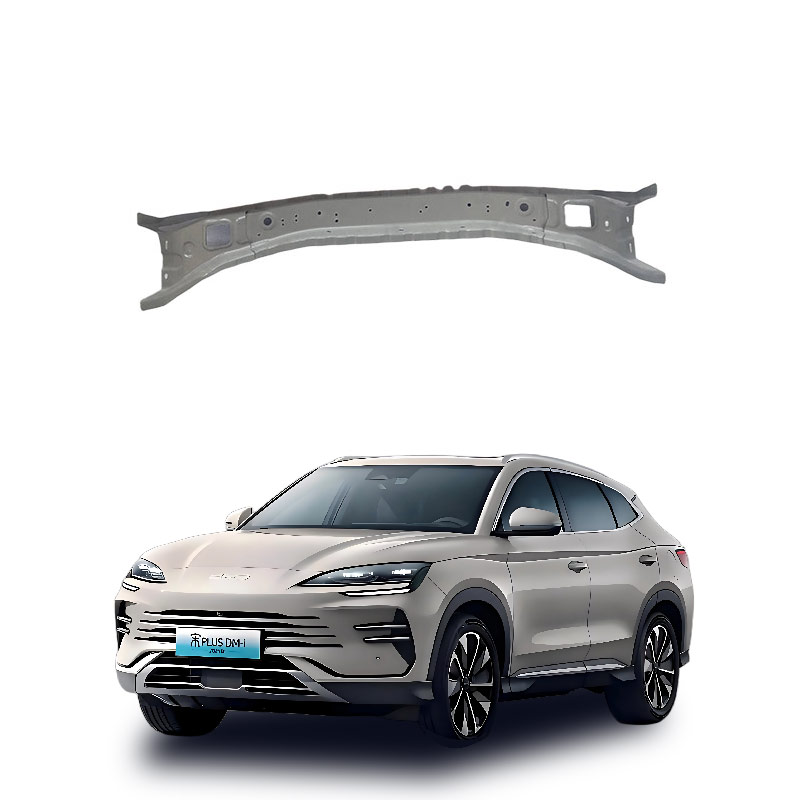

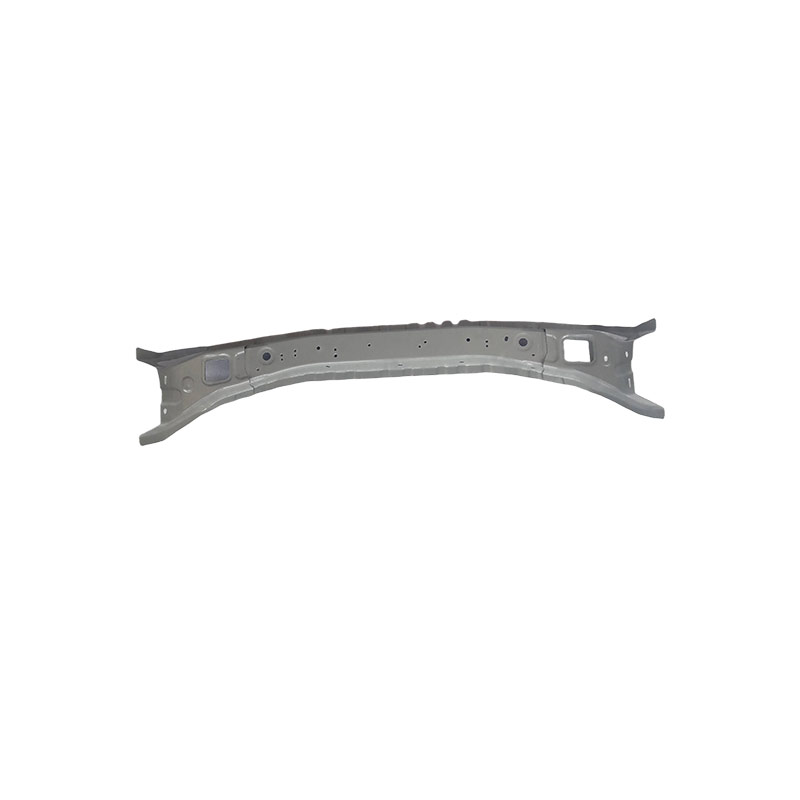

What is the rear floor beam assembly of the car?
The rear floor beam assembly is a horizontal load-bearing structure component located beneath the rear floor of the vehicle, connecting the left and right rear longitudinal beams. It consists of the beam body and welded/bolted strengthening parts, as well as mounting brackets, and its main function is to enhance the vehicle's torsional stiffness, support the rear seats and battery/oil tank, and transfer energy during rear collisions.
Definition and Position: A horizontal beam-like structure at the rear bottom of the vehicle (below the trunk or the bottom of the rear seats), located between the rear longitudinal beams, and is a key part of the rear floor frame assembly.
Main Components: Usually includes high-strength steel or aluminum stamping parts/sections, reinforcing ribs, seat mounting points, sub-frame connection points, and weldments (some designs include composite material layers or cable-stripping structures).
Core Function: Enhance the vehicle's torsional and bending stiffness; bear the rear load; act as a force transmission path during rear collisions to protect the passenger compartment and bottom components (such as the battery, oil tank); improve NVH (noise, vibration, and harshness).
Material and Process: Traditionally, it is mostly made of steel through stamping and welding. The modern trend is to use aluminum die-casting integration or composite materials to achieve lightweight and high integration.
This component is different from the "rear impact beam" inside the bumper or the "sub-frame beam" of the suspension system. It specifically refers to the horizontal strengthening beams within the floor structure of the passenger compartment.
The core function of the rear floor beam assembly is to connect the left and right rear longitudinal beams to enhance the vehicle's torsional stiffness, support the rear seats and the load of the trunk, guide the orderly transmission of energy during rear collisions/energy absorption, and provide installation references for chassis/battery and other components. Core function
Structural reinforcement: Connects laterally between the two side longitudinal beams, significantly enhancing the torsional and bending stiffness of the vehicle body, and maintaining the geometric stability of the rear compartment.
Load support: Carries the fixed points of the rear seats, the floor of the trunk, and local dynamic loads, preventing local collapse and deformation.
Collision safety: Assists the rear longitudinal beam in forming a force transmission path in the rear-end collision condition. Part of the design induces the longitudinal beam to collapse in an orderly manner to absorb energy, reducing the intrusion of energy into the passenger compartment.
Layout integration: Limits the installation space for the sub-frame, shock absorbers, exhaust, or battery components, improving the integration degree and assembly accuracy of the entire assembly.
NVH optimization: Through stiffness matching and modal tuning, suppresses the vibration transmission at the rear, improving the noise and smoothness performance. Additional Explanation
This component is usually located beneath the trunk floor and is a key load-bearing part of the "rear floor frame assembly". It is mostly made of high-strength steel through stamping and welding. Some models may incorporate aluminum or composite materials to achieve lightweighting.
It is necessary to distinguish between "rear floor crossbeam" (a structural component of the vehicle body) and "rear impact bar" (an impact protection piece inside the bumper) or "rear subframe crossbeam" (a suspension-bearing component). The positions and functional focuses of these three differ.
The failure of the rear floor crossbeam component of the vehicle mainly refers to structural deformation/cracking, welding failure, or loose connections. The core risks are a decrease in collision safety and loss of chassis rigidity. Immediate professional inspection is required. Do not attempt to correct it yourself and continue driving at high speed.
Core Fault Symptoms and Risks
Typical Symptoms: Abnormal noise at the rear (during crossing bumps/turning), loose closure of the trunk lid, loosening of the installation points of the rear seats, vehicle tail deviation or obvious scratches on the chassis.
Safety Hazards: This component is a key load-bearing part of the vehicle body frame, responsible for transmitting longitudinal collision forces and maintaining torsional stiffness. Once it fails, the risk of occupant compartment intrusion in a rear-end collision increases significantly, and it may also cause suspension alignment deviation.
Accident Classification: If the failure involves cutting, welding repair, or severe deformation correction, it is usually classified as a "major structural damage (damaged vehicle)" by insurance companies and used-car evaluations, significantly affecting residual value and safety ratings.
Common Causes Analysis
Collision Impact: Metal yielding deformation, weld tear due to impact from behind, or severe scraping from the bottom.
Manufacturing Process Defects: In rare cases, there are original factory welding voids, insufficient point welding spacing, or stress concentration cracking caused by material rebound (common in specific batch recall models).
Corrosion Fatigue: High-strength steel material brittleness due to long-term immersion in water or snow-melting agents, resulting in fracture under normal load.
Improper Modification: Non-professional installation of chassis components or incorrect force-bearing points towing can lead to local overload deformation.
Diagnosis and Treatment Decision
Must be professionally inspected: Go to a repair shop or 4S store equipped with a beam correction instrument and ultrasonic flaw detection equipment to measure the chassis data and compare it with the original factory standard to confirm the deformation amount and weld integrity.
Repair vs Replacement Principle:
Minor Surface Damage (No structural deformation, intact welds): Can be treated with rust prevention and local reinforcement, without affecting safety.
Structural Deformation/Cracking: Do not simply use sheet metal hammering to reset, must cut and replace the original factory new part and adopt standard welding process; if the repair cost exceeds 50% of the part value or cannot restore the original factory strength, it is recommended to directly replace the assembly.
Recall Verification: Some models (such as early Holden models) have been recalled due to rear crossbeam welding issues. It is recommended to check the VIN code to confirm whether it is involved in the official free repair plan.
Subsequent Verification: After repair, a four-wheel alignment and road test must be conducted to ensure that the chassis geometric parameters return to normal.
If your vehicle exhibits the above symptoms, stop long-distance or high-speed driving immediately and contact a professional institution for chassis lifting inspection. Do not blindly believe the "correcting can be done" claim from roadside shops. Irreversible damage to the structural strength will directly threaten life safety.
