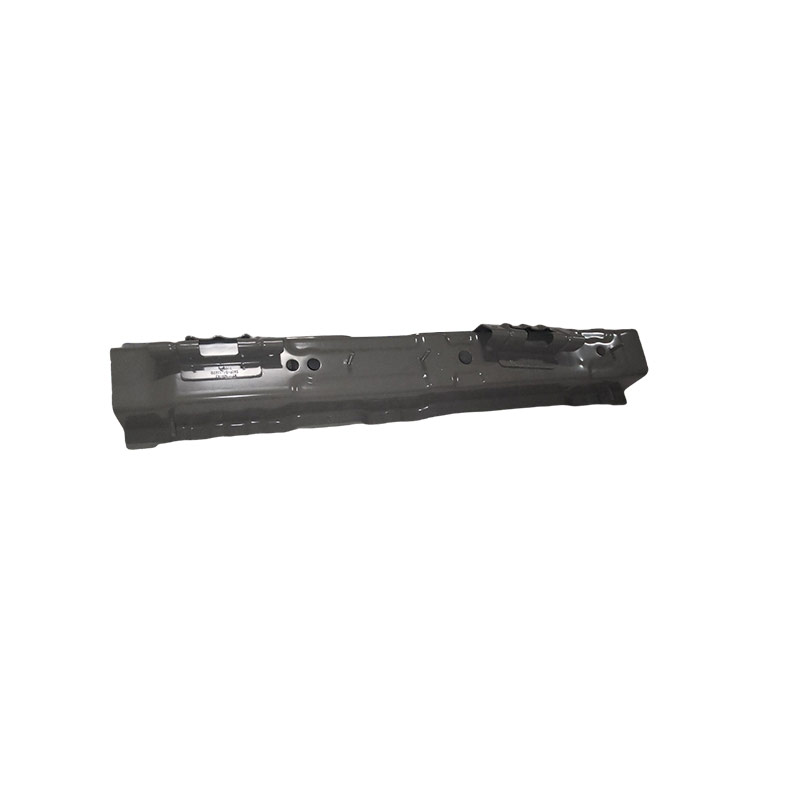

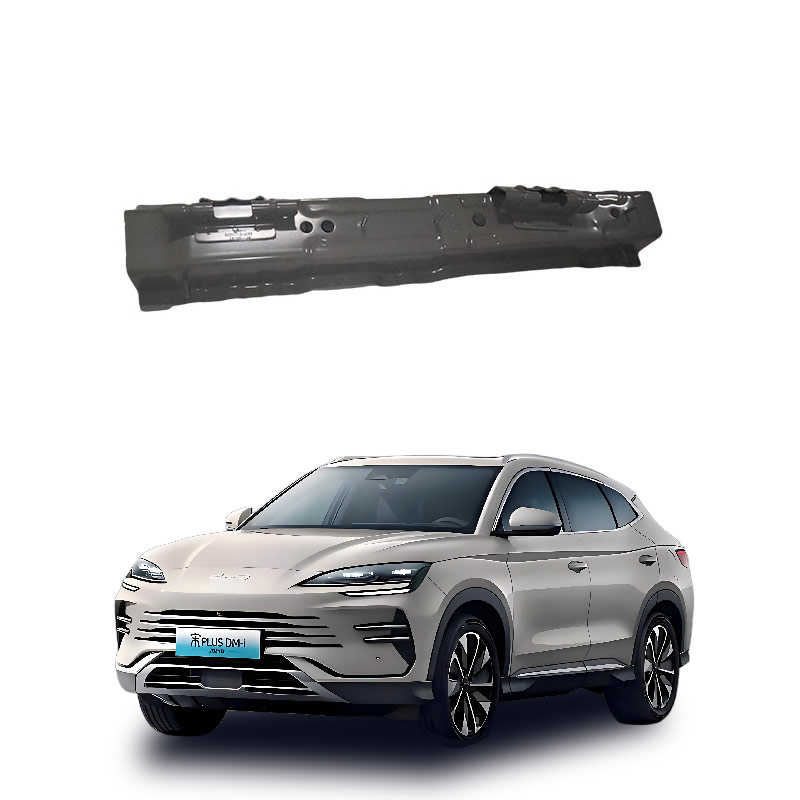

What is the rear crossbeam assembly of the car floor?
The "rear floor cross member" of a car is not a standard term. It usually refers to the horizontal structural component that connects the left and right longitudinal beams in the rear area of the vehicle's floor (rear floor cross member / rear sub-frame cross member), primarily serving to enhance the vehicle's torsional stiffness, support the rear suspension or battery pack, and assist in absorbing and dissipating energy during rear-end collisions.
Core Definition and Location
Accurate Name: In engineering, it is often referred to as the "rear floor cross member" (Rear Floor Cross Member) or "rear sub-frame cross member". It is part of the white body floor assembly or the chassis sub-frame and is not an independent "floor".
Installation Position: It is located between the rear seats and the bottom of the trunk, running horizontally and connecting the left and right rear longitudinal beams (Rear Side Member), positioned slightly below the floor of the passenger compartment.
Structural Form: It is mostly made of high-strength steel and has a channel, box, or Hat-shaped cross-section. Some electric vehicles use aluminum die-casting or a composite structure for battery installation points.
Main Functions
Structural Strengthening: Connects the left and right longitudinal beams, significantly enhancing the vehicle's torsional stiffness, preventing frame distortion, and improving handling stability.
Load Support: Acts as a mounting base, supporting the rear suspension tower, spare tire, exhaust system, and in electric vehicles, often directly bearing the battery pack fixation.
Collision Safety: Assists in transferring the impact force to the rear longitudinal beams during rear-end collisions, preventing excessive intrusion of the rear panel into the passenger compartment, and protecting the fuel tank or high-voltage components.
NVH Performance: Blocks the transmission of road vibrations directly to the frame, assisting in improving the quietness of the vehicle.
Common Misconceptions Clarification
Not a "Floor": There is no concept of a "floor" in cars. This term is a misnomer for "floor structure components"; it does not belong to the covering parts (such as the trunk lid), but is a load-bearing framework.
Different from the Rear Impact Beam: The rear impact beam is located at the very end of the bumper and is responsible for absorbing energy during low-speed collisions; the rear floor cross member is located further forward inside the vehicle, focusing on structural rigidity and large load support, and its position and function are different.
Different from the Roof Cross Beam: The roof rear cross beam is located at the rear of the roof and supports the rear windshield / rear door, corresponding above and below the floor cross member but with independent functions.
If specific vehicle repair or accident damage assessment is involved, it is necessary to consult the white body drawing of the vehicle to confirm its exact number and specifications, as the layout differences between different platforms (such as fuel vehicles vs. electric vehicle platforms) are significant.
The "rear floor cross member" of a car is not a standard term. It usually refers to the rear floor cross member (including the rear impact beam or rear sub-frame rear cross member), and its core function is to enhance torsional stiffness, absorb collision energy during rear-end collisions, support suspension/body components, and protect the passenger compartment and key components. Rear subframe rear crossbeam: It is part of the chassis suspension system and serves to support the wheels, transmit driving force/braking force, and resist torsion.
Rear crossbeam of the vehicle body structure: Located at the upper body (such as the rear part of the roof), it mainly functions to connect the side panels, support the roof, and support the rear doors, and does not participate in the main path of collision energy absorption.
Note: If you specifically refer to a certain component of a particular model (such as the bottom crossbeam of the battery pack or the floor reinforcement beam), please provide the specific model or location description for a more accurate answer.
