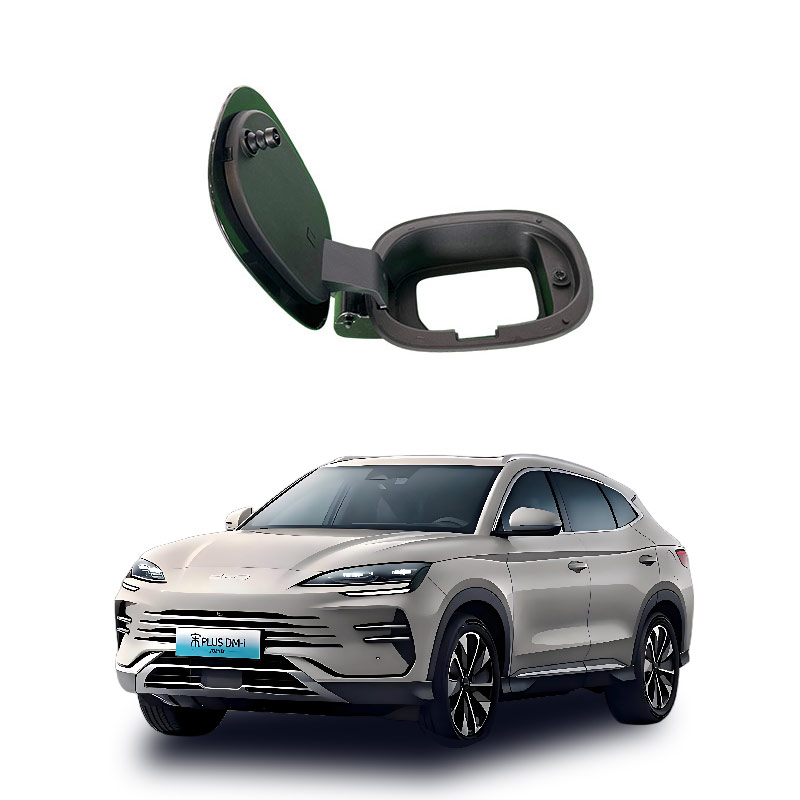

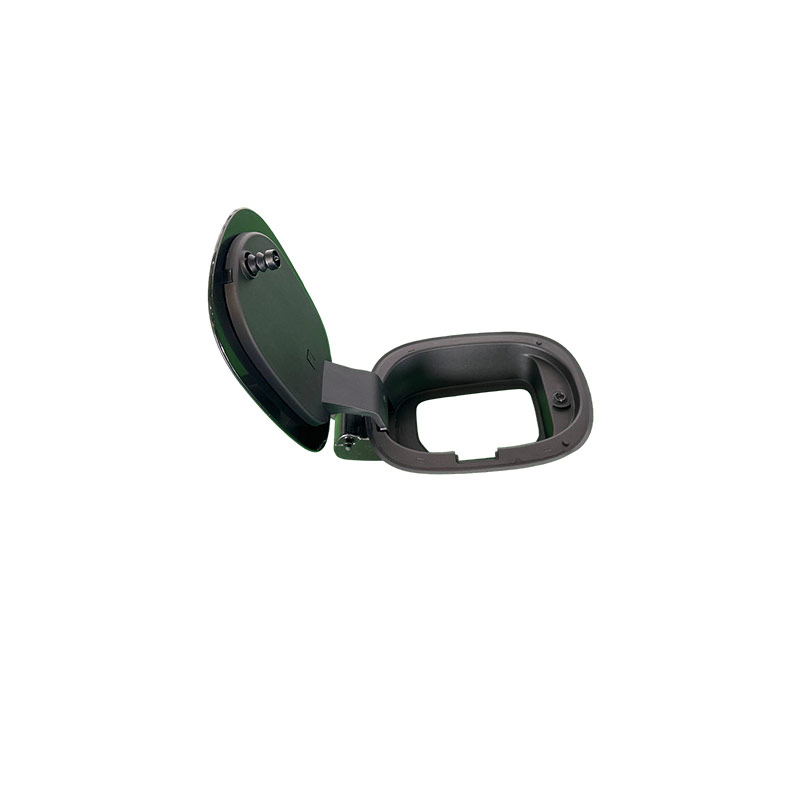

What is the ACDC charging port cover assembly for the car?
The AC/DC charging port cover assembly for automobiles is an integrated protective assembly that covers and protects the AC (slow charging) and DC (fast charging) interfaces of new energy vehicles. Its core function is to prevent dust, water, and foreign objects from entering, maintain the sealing safety of the high-voltage system, and protect against oxidation or short circuits at the interfaces.
Core Definition and Composition
Essentially: An openable mechanical/electronic protective structure on the vehicle exterior, not a power conversion component (different from OBC or charging module), specifically designed to cover the AC (7-pin) and DC (9-pin) interfaces as per GB/T standards.
Main Components: High-strength engineering plastics (such as ABS/PC) or silicone seals, snap/hinge mechanisms, electric actuators (for some high-end models), locking sensors, and matching body color finishes.
Coverage Object: Covers both the AC slow charging port (220V/380V input) and the DC fast charging port (high-voltage direct charging), with some models featuring split double covers and some featuring a single integrated large cover.
Key Functions and Technical Characteristics
Sealing Protection: Utilizes silicone edge deformation to achieve IP54 and above protection levels, blocking rain, dust, and insects from entering and causing oxidation or short circuits at the interfaces.
Interaction Logic: Supports various opening methods such as mechanical pressing to open, control by the central control screen, remote control by the car key, or automatic opening upon insertion of the charging gun. In driving mode, it is usually locked.
Environmental Adaptability: Materials must withstand temperature variations from -30°C to 80°C without cracking or failing, possess UV aging resistance, and ensure long-term opening feel and sealing performance.
Common Misconceptions Clarification
This component does not involve "AC/DC power conversion". "AC/DC" here merely refers to the two interface types it protects (AC port and DC port). The actual AC/DC conversion is completed by the on-board charger (OBC) inside the vehicle or the external charging station outside, and is not electrically connected to the cover.
Core Function
Dust and Waterproof Sealing: Prevents dust, sand, and rain from entering the charging socket, avoiding oxidation of metal contacts or the formation of an insulating layer that causes poor contact, short circuits, or equipment damage.
Foreign Object Prevention: Physically isolates external objects from being inserted, preventing electric shock risks or mechanical damage to the interface, which is particularly crucial in public parking scenarios.
Impact Absorption Protection: Absorbs impact forces in minor scratches or collisions, protecting the precise charging terminals from damage and extending the lifespan of the interface.
Aesthetics and Aerodynamics: Closed when covering, it aligns with the vehicle's curved surface, reducing wind resistance and maintaining a clean appearance, avoiding protruding components that could cause scratches.
Intelligent联动 Control (for some models)： Integrates a motor/locking mechanism to achieve automatic locking to prevent the charging gun from being pulled out during charging， automatic unlocking upon completion of charging， or remote/NFC activation， enhancing operational safety and convenience. Additional Explanation
The "AC/DC charging port cover" does not refer to the cover itself performing current conversion. Instead, it refers to the protective component that covers both the AC (alternating current) and DC (direct current) charging interfaces. The AC port is typically used for slow charging (through the vehicle's charging unit rectification), while the DC port is used for fast charging (through external rectification). The cover needs to be adapted to each of these interfaces or uniformly cover both to ensure effective protection in different charging modes.
