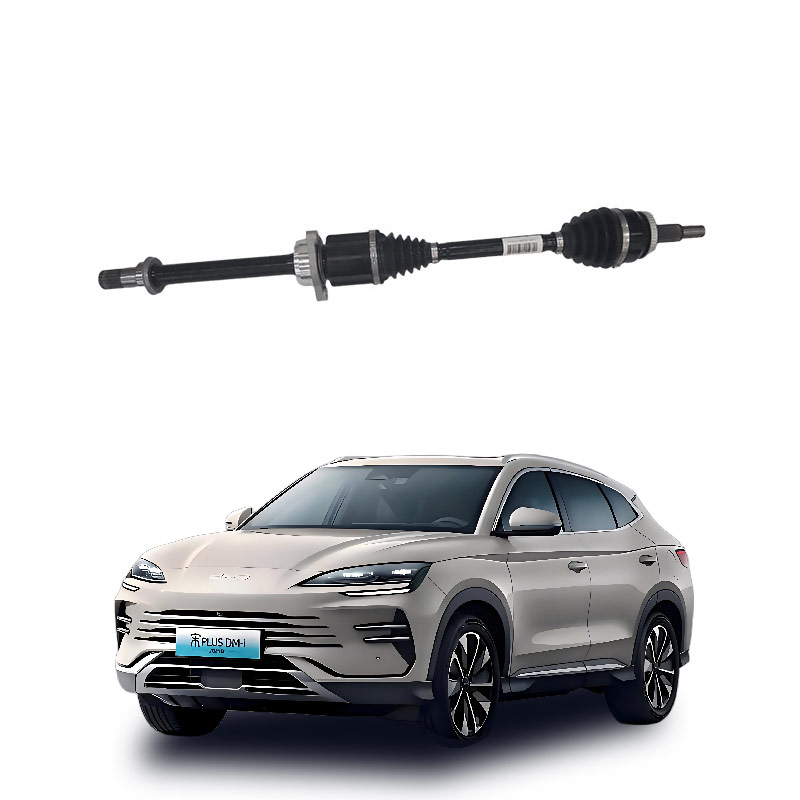

What is the right front wheel drive half shaft assembly of a car?
The right front wheel drive half shaft assembly is a transmission component in front-wheel drive vehicles that connects the right output end of the differential to the right front wheel hub. Its main function is to precisely transfer the engine torque, after passing through the gearbox and the differential, to the right front driving wheel at a 1:1 ratio, and to adapt to the suspension bounce and steering angle changes.
Core definition and location
Location: Only exists on the drive wheels (in front-wheel drive vehicles, it is the left and right front wheels), specifically referring to the right half shaft assembly;
Essence: It is not a single metal rod, but an integrated transmission system consisting of an axle body, a universal joint (ball cage), a dust cover, and a connecting spline;
Function: During vehicle acceleration, cornering, and bumps, it simultaneously withstands torque, bending moments, and axial displacement, ensuring a continuous and smooth transmission of power.

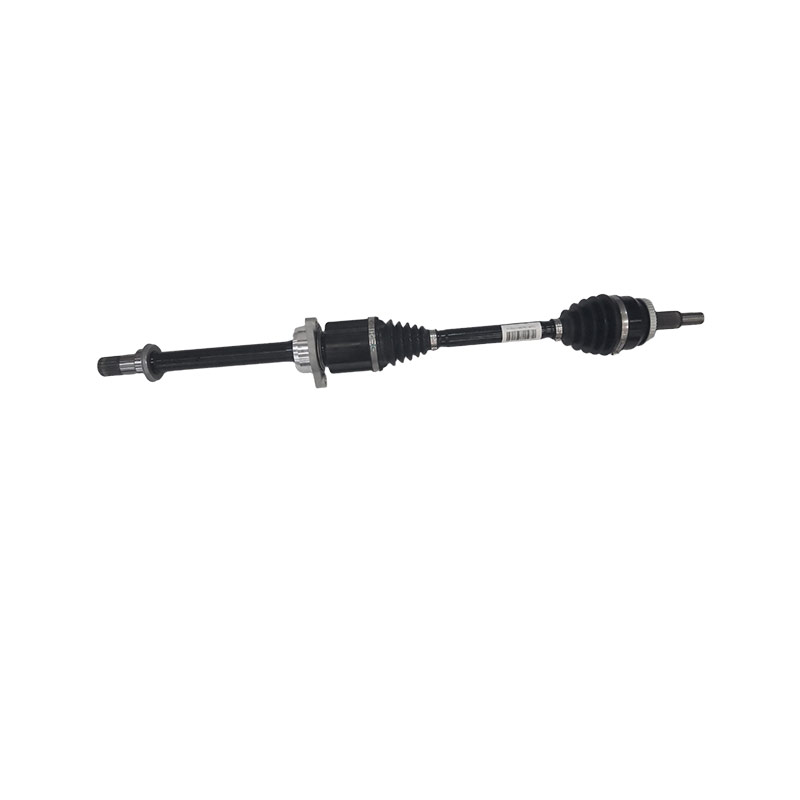

Main components
Inner ball cage (differential end): Connects the differential output and adapts to the up and down bounce of the suspension;
Outer ball cage (wheel end): Connects the hub and allows large-angle steering rotation;
Intermediate shaft body: High-strength alloy steel solid shaft, responsible for torque transmission;
Dust cover and lubricating grease: Seals and protects the universal joint, preventing dust and moisture from entering and causing wear;
Spline interface: Both ends are engaged with the differential gears and the inner ring of the wheel hub bearing through precise splines.
Common fault manifestations
If this assembly is damaged (such as ball cage wear or dust cover rupture), typical symptoms include: low-speed "clicking" abnormal noise when steering, steering shake during high-speed cornering or acceleration, and reduced steering feel.
The core function of the car's right front wheel drive half shaft assembly is to transfer the torque output by the differential to the right front driving wheel and adapt to the wheel steering and suspension bounce through the universal joint, ensuring a continuous and smooth transmission of power. Core function
Power transmission: Connects the differential to the right front wheel hub, directly driving the right front wheel to move by transmitting the rotational torque processed by the engine through the gearbox, main reducer and differential.
Steering adaptation: Includes internal and external universal joints (usually constant velocity universal joints), absorbing angle changes during right front wheel steering to prevent power interruption or severe vibrations.
Suspension compensation: Compensates for length and position changes through spline extension or structural flexibility when the independent suspension system jolts up and down, maintaining transmission stability.
Force support: Some structures need to assist in transferring the road reaction torque to the frame, participating in the torque balance during vehicle operation (not a main load-bearing component, but involved in force transmission).
Structural features (unique to the right front wheel)
Position layout: Runs laterally through the front of the chassis, the inner side connects the differential output end, and the outer side connects the right front wheel hub.
Key components: Usually consists of an inner universal joint (close to the differential), shaft rod, outer universal joint (close to the wheel), and dust seal sleeve; The outer universal joint works more frequently due to the involvement in steering for the right front wheel.
Failure impact: If damaged, it can cause acceleration judder, turning abnormal noise (clicking sound), power loss or dust seal sleeve rupture and oil leakage leading to wear.
In short, it is the key transmission hub for the "power transmission + steering compatibility" of the right front wheel of a front-wheel drive vehicle, indispensable.
The core failure of the right front wheel drive half shaft assembly of the car is manifested as: Metal impact noise during acceleration/turning of the right front wheel, body shaking at high speed acceleration, severe cases of power loss of the right front wheel and tire uneven wear, which is a high-risk mechanical failure requiring immediate parking for maintenance.
Typical symptoms and judgment characteristics
Turning noise: When turning to the right or making a large-angle turn, a rhythmic "click/clang" metal impact sound is emitted from the right front wheel (sign of outer ball cage wear); If there is a metal impact sound when accelerating straight and disappears when releasing the accelerator pedal, it is mostly an issue with the inner ball cage or shaft body.
Shaking during driving: When accelerating at high speed above 60-80 km/h, severe and frequent high-frequency shaking occurs in the front of the vehicle or the steering wheel, and the shaking disappears after releasing the accelerator pedal (shaft body bending or imbalance damage).
Power abnormality: Right front wheel drive failure, manifested as single-side skidding, acceleration delay, and vehicle veering to the left (due to the absence of power traction on the right side).
Visual signs: The inner side dust seal sleeve of the right front wheel is cracked and leaking oil (grease spilling out), and long-term failure leads to abnormal uneven wear of the tire tread.
Extreme risk: Half shaft fracture can cause wheel loss or detachment, accompanied by a huge impact sound and instantaneous loss of power during driving.
Common causes
Dust seal damage: Mud and sand enter the universal joint (ball cage) causing lubrication failure, dry grinding of the balls (the most common reason).
Mechanical fatigue: Long-term overloading, severe impact or material fatigue causing shaft body bending, spline wear or fracture.
Incorrect installation: If not properly tightened after repair or uneven force accelerates wear.
Treatment suggestions and cost reference
Immediate measures: When the above symptoms (especially the noise accompanied by shaking) are found, stop driving at high speed immediately to avoid half shaft fracture causing wheel detachment accidents, and tow to a professional repair point for lifting inspection.
Maintenance plan: If only the dust seal is damaged, the seal and lubricating grease can be replaced separately; if the ball cage is worn, the shaft body is bent or fractured, the half shaft assembly must be replaced.
Do not attempt to disassemble and install by yourself. Special tools (such as ball head separator, torque wrench) and four-wheel alignment calibration are required to avoid damaging the gearbox seal or affecting the handling safety.
