What is the rear axle steering mechanism of a car?
The rear axle of a car typically does not have a "steering knuckle" in the traditional sense; this component specifically refers to the fork-shaped key component (commonly known as "the horn") that connects the wheels on the front axle (steering axle) and rotates around the main pin to achieve steering. The rear axle of a car usually does not have a steering knuckle; the steering knuckle is a core component of the front steering axle and is used to achieve wheel rotation for steering. Only when the vehicle has rear-wheel steering (such as in some large buses, special vehicles, or high-end cars with active steering systems at the rear axle) is the rear axle equipped with a steering knuckle, which functions similarly to the front axle but has a special application scenario.
Core Function (applicable only to vehicles with rear-wheel steering)
- Achieving rear-wheel rotation: As a hinge for wheel steering, it drives the rear wheels to rotate around the main pin, assisting or independently performing the steering action (such as low-speed crab movement, high-speed directional fine-tuning to enhance stability).
- Bearing and force transmission: Supports the rear body weight, transmits vertical loads, braking reaction forces, and impact loads during driving.
- Maintaining positioning parameters: Mounts the wheels and ensures the wheel camber angle and other positioning geometries, ensuring tire grip and driving stability.
General Explanation
- The vast majority of passenger cars and trucks: The rear axle is a drive axle or a transfer axle, without a main pin and steering knuckle structure, only responsible for driving, differential, or simply bearing.
- Structural Differences: The corresponding components of ordinary rear axles are mostly "steering knuckle shells" or directly integrated with the hub bearing unit, lacking the steering function of rotating around the main pin.
- Misconception Clarification: Some public materials mistakenly refer to the rear axle support components as "rear steering knuckles", which is actually a confusion of concepts; in standard automotive construction, the steering knuckle specifically refers to the steering execution component on the steering axle.
If your vehicle has a special rear-wheel steering system, the specific structure should be confirmed according to the maintenance manual of that vehicle model.
Clarification of Core Concepts
- Regular Vehicles: The rear axle is mostly a drive axle or support axle, and its corresponding components are called "steering knuckle shells" or directly integrated with the hub bearing unit, lacking the main pin rotation function, so strictly speaking, it is not called a "steering knuckle".
- Special Vehicles: Only when the vehicle is equipped with a four-wheel steering system (4WS) is the rear axle equipped with a steering knuckle with an active deflection function, used for low-speed sensitivity or high-speed stability control.

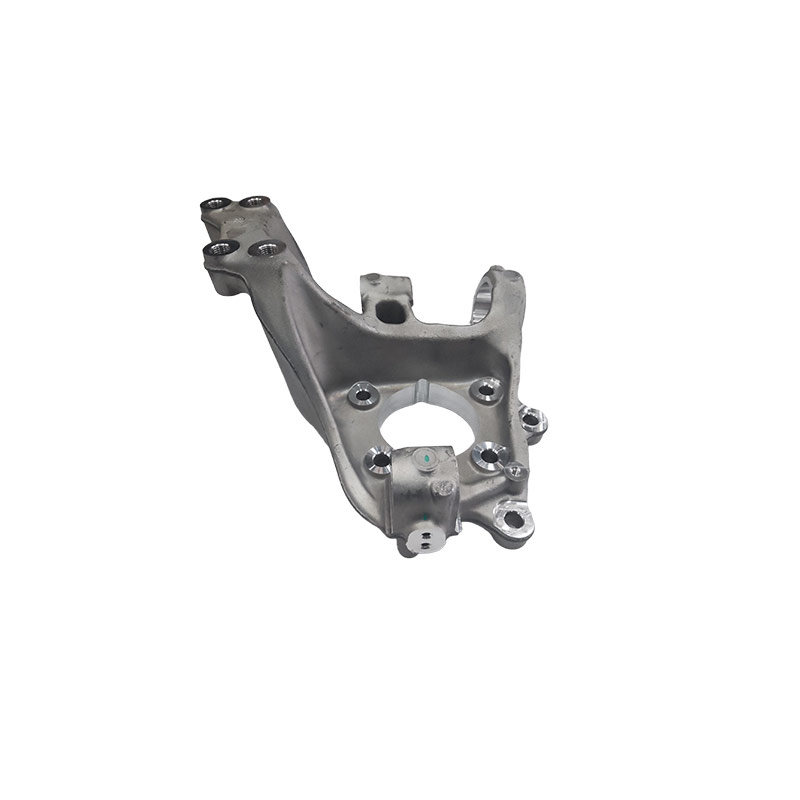

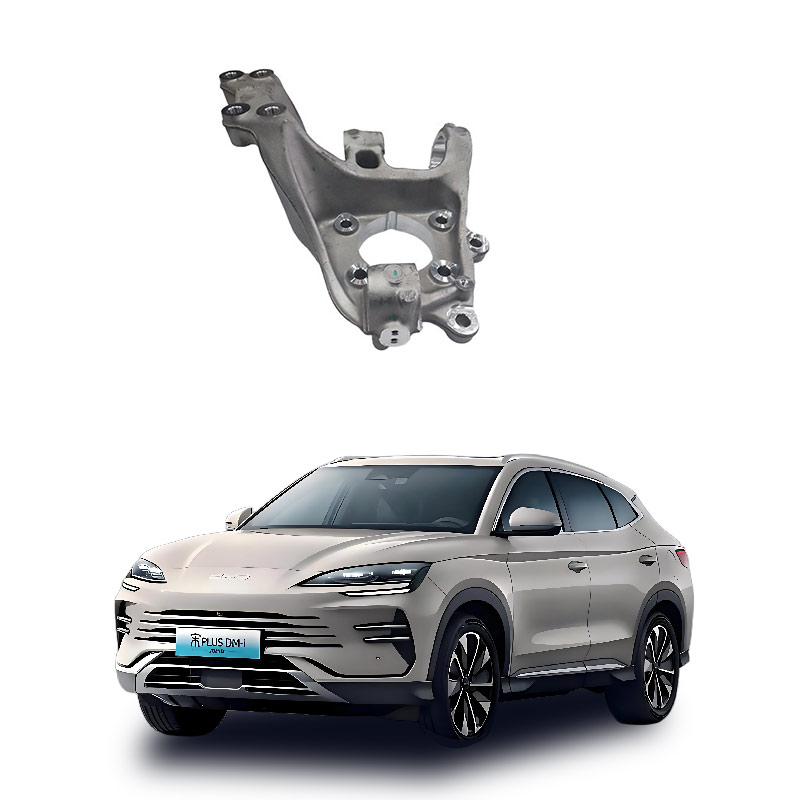

- Name Misconception: Some materials mistakenly refer to the load-bearing component connecting the wheels of the rear axle as "rear steering knuckle", which is a term confusion; the essence of the steering knuckle is the "rear hub carrier/sheep's horn-shaped bracket", without a main pin structure.
Comparison of Front Axle Steering Knuckle vs. Corresponding Components of Rear Axle
- Front Axle Steering Knuckle: Fork-shaped structure, with a main pin hole, the wheels rotate around the main pin, directly performing the steering action, and bearing lateral impact loads.
- Rear Axle (non-4WS): Mostly of an integral or independent suspension arm structure, only supporting the load and transmitting driving force, lacking a main pin deflection mechanism.
- Rear Axle (4WS vehicle): Equipped with electronic/hydraulic execution mechanisms, which can deflect in the same direction or opposite to the front wheels with a small angle at different speeds, with a complex structure and sensor interface.
Function and Structural Characteristics
- Main Function: If it is a true rear steering knuckle (4WS), its function is to reduce the low-speed turning radius and enhance the stability of high-speed lane changes; if it is an ordinary rear axle component, it only supports the vehicle weight, installs braking and suspension.
- Structural Differences: Traditional steering knuckles have ear holes for the main pin; the corresponding components of ordinary rear axles are mostly flange-type directly connected to the half shaft or suspension link rods, without a main pin sleeve design.
- Material Requirements: Both need high strength (forged steel or aluminum alloy), but the steering knuckle requires higher fatigue strength and lightweight due to dynamic control requirements. Without this configuration, this term usually refers to the rear hub steering housing (i.e., the rear wheel support bracket), which is not a part that truly participates in the steering movement.
