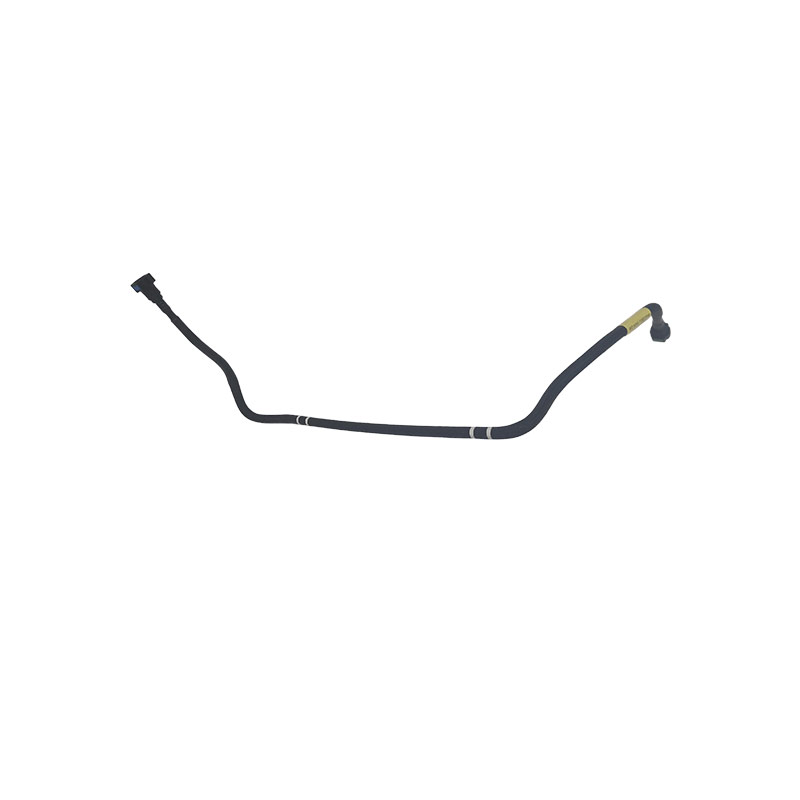

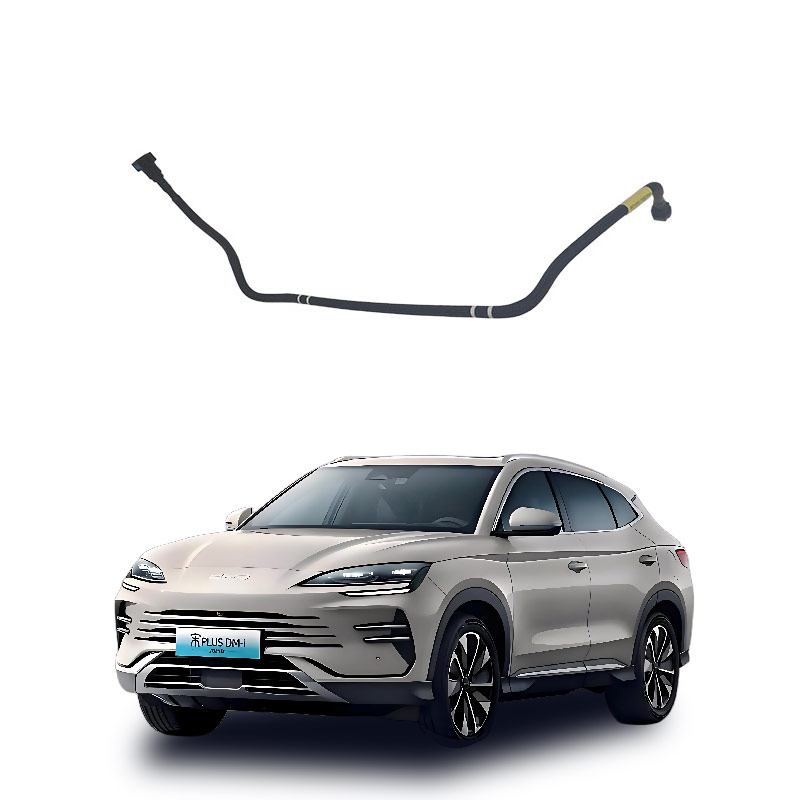

What is the nylon pipe assembly for automotive fuel evaporation emissions?
The automotive fuel evaporation emission nylon pipe assembly is a dedicated polyamide (PA) pipeline assembly in the EVAP system that connects the fuel tank, the activated carbon tank, and the control valve. Its core function is to transport fuel vapor with low permeability and prevent hydrocarbons from leaking into the atmosphere.
Core Definition and Composition
Essentially: A sealed transmission component integrated with nylon pipe material (commonly PA11/PA12 or multi-layer composite structure) and quick connectors, elbows.
Location: Connected in series between the fuel tank outlet, the intake port of the activated carbon tank, and the carbon tank cleaning valve, forming a vapor return circuit.
Key Characteristics: Possesses extremely low fuel permeability (meeting Euro VI/China VI emission standards), resistance to ethanol gasoline corrosion, vibration fatigue resistance, and wide temperature range (-40°C to 125°C +).
Main Function
Vapor Conduction: Safely transports the fuel vapor generated by the fuel tank to the activated carbon tank for adsorption and storage, avoiding direct discharge.
Barrier Permeation: Through multi-layer co-extrusion technology (such as containing EVOH barrier layer), blocks the diffusion of carbon hydrogen compound molecules through the pipe wall.
System Sealing: Coordinated with quick connectors to ensure full chain air tightness, supporting real-time leak monitoring by the on-board diagnostic system (OBD).
Materials and Technological Trends
Mainstream Materials: Long carbon chain nylon (PA12, PA11) due to its low water absorption, excellent oil resistance, and dimensional stability, becoming the preferred choice; high-end applications use PA6/EVOH/PA multi-layer composite structure to further reduce permeability.
Structural Form: Mostly preformed bends or integrated assemblies with wave-shaped shock absorption sections, reducing the number of connectors to enhance reliability.
Regulatory Drive: Stringent emission regulations (such as GB 18352.6) mandate the use of low-permeability nylon pipes instead of traditional rubber pipes to reduce VOC emissions.
The core function of the automotive fuel evaporation emission nylon pipe assembly is to construct a high-permeation barrier and sealed channel, safely transporting the carbon hydrogen compound (HC) vapor from the fuel tank to the activated carbon tank for adsorption or combustion in the engine, preventing it from directly discharging into the atmosphere, while leveraging the properties of nylon material to meet lightweight, fuel corrosion resistance, and strict emission regulation requirements.
Core Function Mechanism
Vapor Collection and Conduction: Connects the fuel tank and the activated carbon tank (EVAP carbon tank), during vehicle idling or refueling, the vapor generated by the fuel tank is directed into the carbon tank for adsorption and storage.
Vapor Recovery and Combustion: When the engine is running, it serves as a transportation channel to guide the adsorbed fuel vapor from the carbon tank to the intake manifold, entering the cylinder with the air for combustion, achieving resource reuse and reducing pollution.
Barrier Permeation Prevention: Utilizes multi-layer composite nylon structure (containing EVOH barrier layer), significantly reducing the amount of fuel molecules permeating through the pipe wall into the atmosphere, meeting strict emission standards such as Euro VI.
Key Advantages of Selecting Nylon Material
Low Permeability and High Permeation Barrier: Compared to traditional rubber or single-layer pipes, multi-layer nylon pipes (such as PA12+EVOH) can reduce 90% or more of fuel vapor permeation, eliminating HC escape.
Chemical and Heat Resistance: Exhibits excellent stability to gasoline, ethanol gasoline, and high-temperature environments, with a long-term use temperature of up to 120°C - 140°C, not prone to swelling or aging cracking.
Lightweight and Durability: Density is approximately 1/7 of metal pipes, reducing weight by over 50%, and having good vibration fatigue resistance, suitable for complex chassis layouts.
Static Electricity Safety: Can eliminate the accumulation of static electricity generated by fuel flow through the addition of a conductive layer, preventing fire hazards. During the purge phase: The ECU controls the electromagnetic valve to open, and the nylon tube sucks in pure steam into the intake duct. It needs to withstand negative intake pressure and temperature fluctuations.
Failure protection: The pipeline must have the ability to resist pulse fatigue to prevent rupture due to pressure fluctuations, which could lead to secondary emissions.
