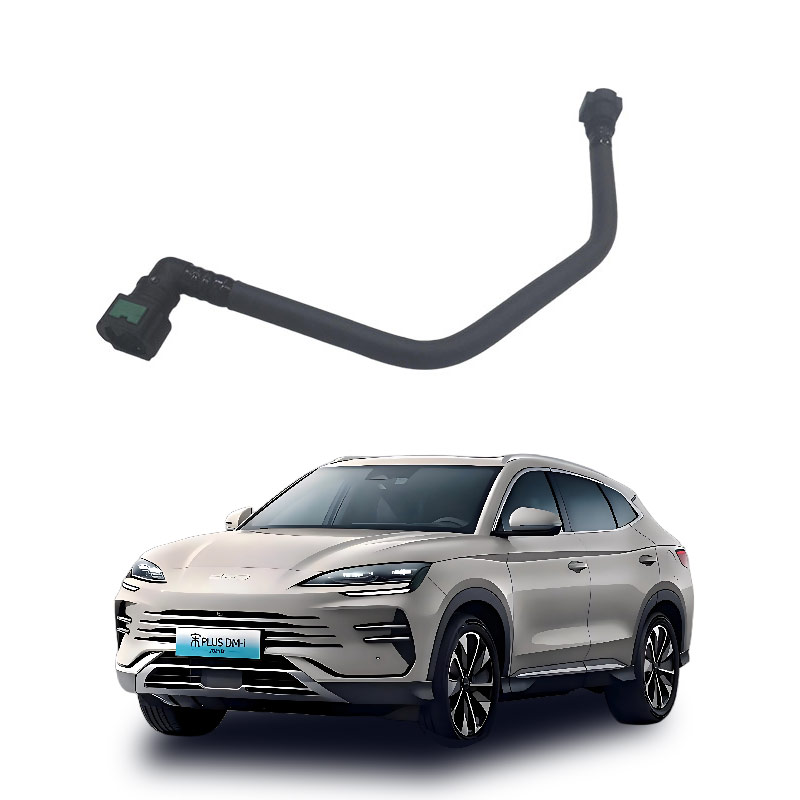

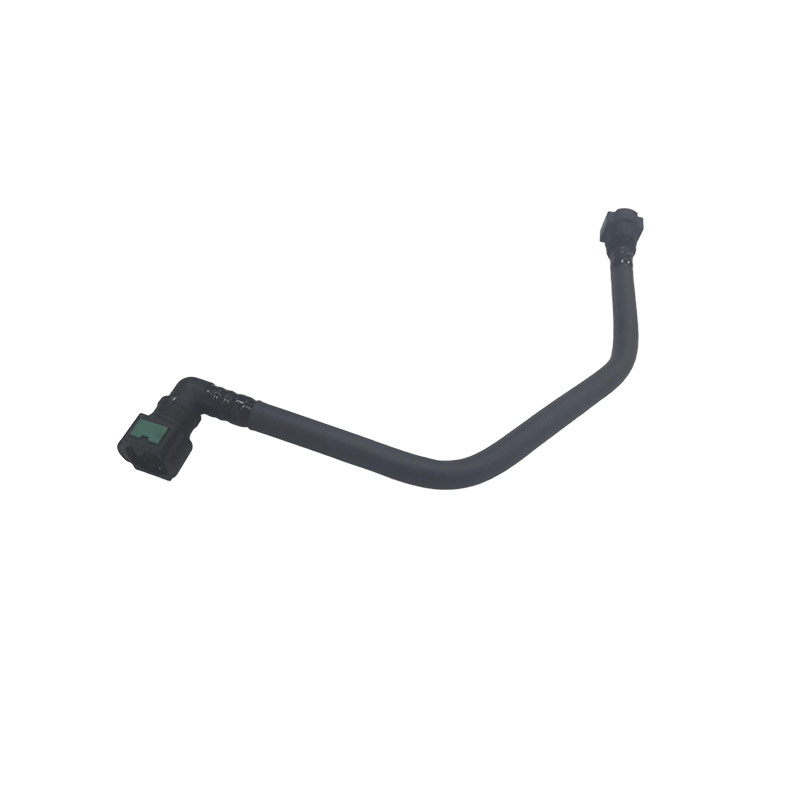

What is the nylon pipe assembly for automotive fuel evaporation emissions?
The automotive fuel evaporation emission nylon pipe assembly is a dedicated nylon piping system in the EVAP system that connects the fuel tank, activated carbon canister, and control valve, used to convey fuel vapor and featuring low permeability, oil resistance, and heat resistance properties. It is specifically designed to safely transport the hydrocarbon (HC) vapor generated by the fuel tank to the activated carbon canister for adsorption and storage, or to introduce it into the intake manifold for combustion during engine operation, thereby preventing the vapor from directly being discharged into the atmosphere, while also meeting the stringent regulations of the Euro VI standard for carbon hydrogen permeability limits.
Key Structures and Characteristics:
Material Composition: Typically, it consists of a multi-layer composite nylon pipe (such as PA12 outer layer + EVOH barrier layer + conductive inner layer), which combines high barrier properties (anti-penetration), resistance to ethanol gasoline corrosion, anti-static properties, and resistance to high and low temperatures (-40°C to 125°C +).
Component Shape: It is not a single straight pipe but a modular assembly including pre-formed bent pipes, wave-damping sections, and integrated quick connectors, to adapt to the vibration and complex layout of the engine compartment.
Alternative Advantages: Compared to traditional rubber pipes, it weighs up to 50% less and has better dimensional stability, better meeting the requirements of lightweighting and environmental protection.
Position in the EVAP System:
- From the fuel tank to the carbon canister section: Collects the vapor emitted from the fuel tank to prevent excessive pressure or vapor leakage.
- From the carbon canister to the electromagnetic valve section: Transports the adsorbed vapor to the control valve.
- System connection section: Connects each core component as a rigid pipe or flexible pipe to ensure a leak-free gas path. Core function
Vapor collection and transmission: Connect the fuel tank and the activated carbon tank (EVAP tank), and introduce the fuel vapor generated by temperature changes or refueling into the carbon tank for adsorption and storage to prevent direct evaporation.
Vapor recovery combustion: During engine operation, the fuel vapor adsorbed in the carbon tank is drawn into the intake manifold through the pipeline and participates in combustion, achieving energy recovery and reducing pollution.
High barrier anti-permeation: As a key part of the multi-layer composite structure, nylon (such as PA11/PA12) and EVOH barrier layers significantly reduce the amount of fuel molecules penetrating through the pipe wall into the atmosphere, meeting strict emission standards such as Euro VI.
Static electricity elimination and safety: The design of some conductive nylon pipelines can eliminate the accumulation of static electricity generated by fuel flow, preventing fire hazards.
Why choose nylon materials
Oil resistance and chemical resistance: Have excellent stability against gasoline, ethanol gasoline and various additives, and are not prone to swelling or aging.
Low permeability: Compared to traditional rubber, the fuel vapor permeability of multi-layer nylon pipes can be reduced by tens or even hundreds of times, which is the key to controlling evaporation emissions.
Lightweight and fatigue resistance: The density is only 1/7-1/8 of metal, significantly reducing weight; and has excellent anti-vibration fatigue performance, suitable for complex engine compartment conditions.
Temperature resistance and size stability: Long carbon chain nylon (such as PA12, PA612) can withstand a temperature range of -40℃ to 120℃+, and has a small thermal expansion coefficient, ensuring reliable connection.
