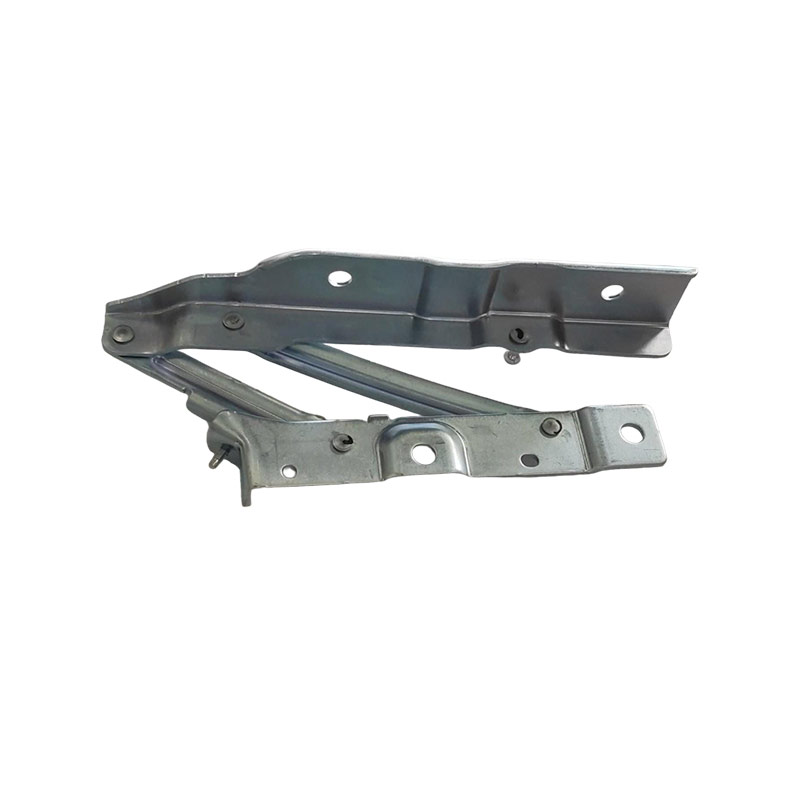

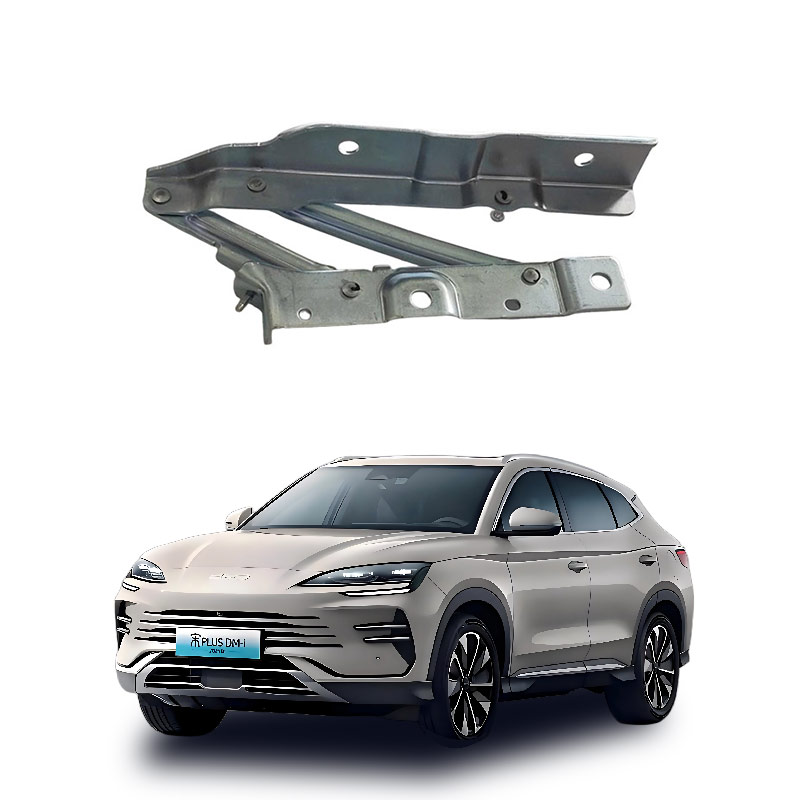

What is the left hinge component of the car's front cover?
The left hinge assembly of the car front cover is a metal rotating mechanism that connects the left side of the engine hood to the left front longitudinal beam of the body or the inner lining of the fender. It is responsible for supporting the hood and enabling smooth opening and closing as well as collision safety limits.
Core definition and function:
Essentially: It is a key component of the body system, functioning similarly to a window hinge, but it must withstand the weight of the hood and the impact of a collision.
Location: It is installed at the left rear root of the engine hood, with one end bolted to the inner panel of the hood and the other end fixed to the body's engine compartment beam.
Main function: Supporting the weight of the hood, limiting the opening angle, ensuring smooth opening and closing, and preventing the hood from flying up and invading the windshield in a frontal collision through deformation or hooking mechanisms. Structural composition
This component is typically integrated (in assembly form) as follows:
Upper arm (side of the hood): Fixed to the inner panel of the engine hood via a connection part.
Lower arm (side of the body): Fixed to the body structure via a base part.
Rotation axis: Connects the upper and lower arms, allowing relative rotation.
Safety coupling/limiting structure: Some models are designed with a mechanical structure that automatically hooks or limits during a collision to prevent the hood from moving backward.
Left-right distinction and precautions
Distinguishing standard: "Left" refers to the left side of the driver when they sit in the vehicle (i.e., the left side of the vehicle's direction of travel), from the perspective of the observer; the left and right hinges are usually mirror-symmetric and must not be mixed.
Maintenance correlation: In case of a front collision, this component is prone to deformation, and it is necessary to check if it has broken or lost its limiting function; replacement often requires adjusting the gap and height of the hood with gaskets.
Left-right hinge assembly component is a key mechanical device that connects the left side of the engine hood to the body. Its core functions are to support the weight of the hood, enable smooth opening and closing rotation, and ensure closed sealing and driving stability.
Core functions
Connection and rotation support: Firmly connects the left side of the engine hood to the front of the body, allowing the hood to freely open and close within a specific angle.
Load-bearing and positioning: Bears the weight of the left side of the engine hood, maintains the uniform gap between the hood and the body, and prevents displacement or abnormal noise caused by vibrations during driving.
Safety and sealing guarantee: Cooperates with the locking system to ensure the hood is tightly closed, preventing high-speed airflow from lifting the hood; damage can cause the hood to loosen, leak water, or even accidentally pop open.
Auxiliary structural function: Some designs use a bending structure to absorb vibration energy during opening and closing, reducing impact; and participate in maintaining the aerodynamic shape of the vehicle head.
Key characteristics
Pairwise collaboration: The left and right hinges need to work synchronously; a single-sided damage will disrupt the force balance, causing the hood to tilt, unable to lock or close normally.
Durability requirements: Must have anti-fatigue and corrosion resistance to withstand long-term outdoor exposure and frequent mechanical movement.
Safety correlation: Breakage or loosening not only affects usage but may also interfere with the engine compartment pipelines or damage the vehicle head collision energy absorption structure.
If the left hinge is loose, rusty, or the hood does not close tightly, it is necessary to repair and replace it in time to avoid safety hazards.
The core fault symptoms of the left hinge assembly component of the car hood are: the left side of the hood sinks/down, the gap is uneven (standard 3-5mm), or there is a unilateral bulge.
Operational obstruction: The opening/closing process is sluggish, noisy with "clicking" metal friction or impact sounds.
Locking failure: Due to position deviation, it cannot precisely fall into the locking mechanism, requiring multiple presses to close, or even accidentally popping open during driving.
Safety hazard: Severe deformation or fracture may impact the internal components of the engine compartment or cause the hood to lift and obscure the view during high-speed driving.
Fault cause diagnosis
Screw loosening: Long-term vibration leads to insufficient torque of the fixed bolts (standard 15-20N·m), causing hinge displacement.
Mechanical deformation: Subjected to external force impact or metal fatigue, causing the hinge arm to bend, destroying the levelness of the hood.
Wear/ Rusting: Failure of lubrication at the rotating shaft, accumulation of dust and rust, or wear of the shaft hole, causing rotation jamming or excessive clearance.
Buffer pad failure: The aging and collapse of the left limit rubber pad, indirectly causing insufficient hood closing height (often misjudged as a broken hinge).
Suggested treatment plan
Slight loosening/oil deficiency: Clean the rotating shaft and apply lubricating grease. Use a torque wrench to tighten the bolts according to the standard torque (do not over-tighten the slotted screws).
Deformation correction: If the deformation is minor, you can try to correct it with professional tools. However, for metal fatigue parts, it is recommended to replace them directly to prevent recurrence.
Component replacement: If there are cracks, severe wear, or deformations that cannot be corrected, the original factory left hinge components must be replaced (usually a pair check is required, and both left and right should be replaced if necessary to ensure force balance).
Professional adjustment: After replacement, the gap between the hood and the lock should be adjusted again to ensure normal secondary engagement of the main lock and the safety lock.
Warning: If you find cracks in the hinge or the hood still shakes violently under the support rod, please do not attempt to force open or drive at high speed. Immediately tow the vehicle to a professional repair shop for handling to avoid the hood falling off and causing a major accident.
