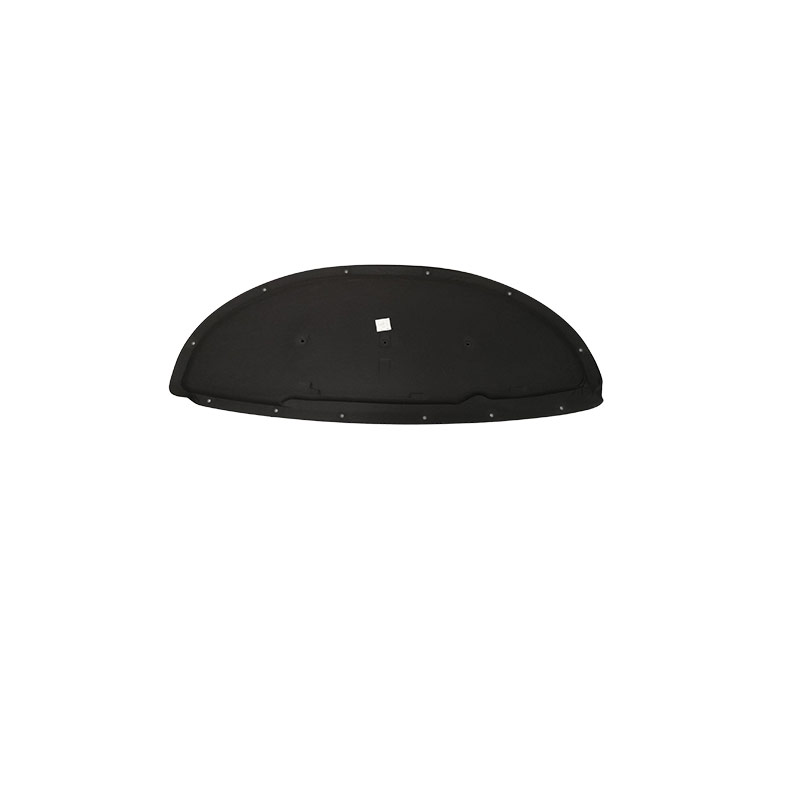

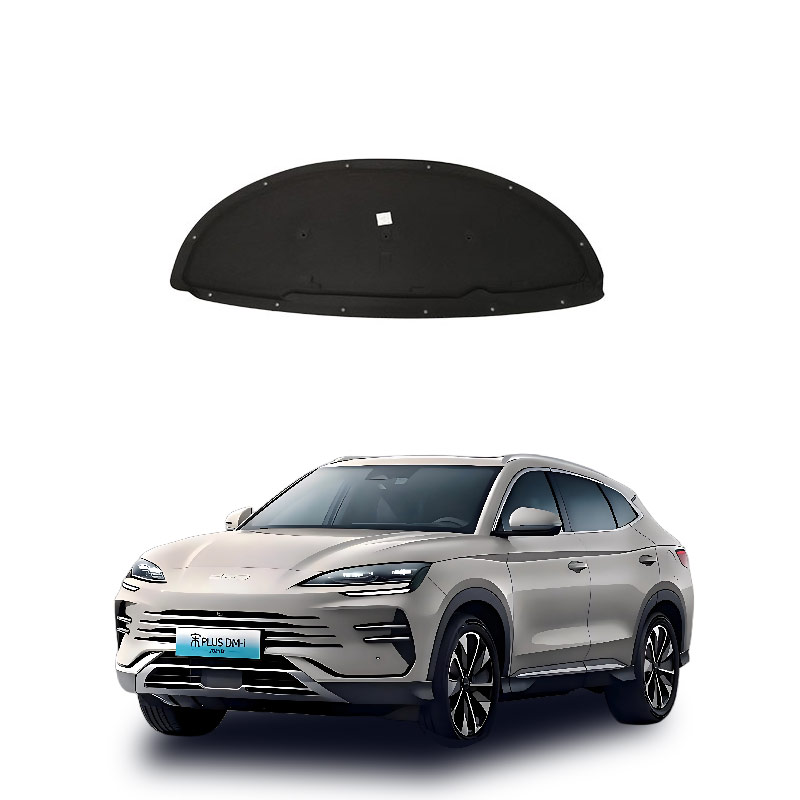

What is the heat insulation layer component of the car front cover?
The automotive front cover insulation layer component is a composite part installed beneath the inner surface of the engine cover, consisting of high-temperature-resistant fiber substrate, reflective layer (usually aluminum foil), and fixation structure. Its main function is to prevent engine heat radiation from reaching the paint surface, absorb noise, and reduce the heat load in the cockpit.
Core Components and Materials
Main Insulation Layer: Typically made of glass fiber mat, ceramic fiber, or flame-retardant polyurethane foam, it has a low thermal conductivity and non-flammable properties, with a temperature resistance range of 400°C - 700°C.
Reflective/Acoustic Surface Layer: Often combined with perforated aluminum foil film, it uses high reflectivity to block radiant heat and has a porous structure to consume sound energy for noise reduction.
Fixation and Support Structure: Includes back adhesive layer, plastic snap, trim strip or rubber pad, used to firmly attach the component to the inner plate frame of the engine cover to prevent vibration and abnormal noise.
Main Functional Roles
Thermal Management: Reflects and blocks the high-temperature radiation from the engine to prevent the outer paint surface of the engine cover from aging, blistering and discoloration due to long-term heating, and reduces heat conduction to the cockpit.
NVH Optimization: Absorbs engine high-frequency operating noise and mechanical vibrations, improves interior quietness, and prevents cover resonance.
Protection Assistance: Acts as a physical barrier to reduce the risk of dust entering and small animals gnawing at wiring harnesses. Some materials also have anti-static properties.
Common Form Differences
Original Equipment Standard: Usually a molded part that matches the inner plate shape, with moderate thickness, balancing lightweight and basic insulation and sound reduction.
Post-Market Upgrade: Mostly a thicker double-sided aluminum foil composite cotton, installed by snap or self-adhesive method, focusing on enhancing insulation effect (some models may lack this component due to downgrading).
The core function of the automotive front cover insulation layer (engine cover insulation cotton/liner) is to prevent engine heat from being transmitted to the cover to protect the paint surface, reduce cockpit heat radiation, absorb high-frequency noise, and assist in insulation. Core function
Heat insulation coating: Prevents the engine's high temperature from directly heating the inner panel of the engine cover, preventing the exterior surface of the car paint from fading, losing luster, bubbling or aging and peeling over time.
Heat management: Reduces heat transfer to the cockpit, lowers the air conditioning load; during short-term winter parking, it can slow down the heat loss in the engine compartment and assist in maintaining the working temperature.
Sound insulation and noise reduction: Absorbs high-frequency noises generated by the engine operation and the fan, suppresses panel resonance, and improves the interior quietness.
Protection and cleaning: Prevents oil stains and dust from directly adhering to the inner side frame of the engine cover. Some materials have flame-retardant properties and can reduce the potential impact of water vapor rising during rainy days on the circuits. Notes for Attention
This component is a standard part designed by the original manufacturer and is not merely a decorative item. Its absence will shorten the lifespan of the paint on the hood and increase the temperature inside the cabin.
If you install it yourself, make sure the material meets the fire-resistant standard and the reserved holes are accurate. Avoid blocking the heat dissipation or causing safety hazards.
The main faults of the car's front hood (engine hood) insulation layer are manifested as aging and detachment, damage and perforation, failure of the fixing snap, or severe oil accumulation and hardening. The core risk is accelerating the aging of the hood paint, causing abnormal noise during driving and potential high-temperature hazards; minor damage can be temporarily repaired, but large-scale detachment or material powdering must be replaced.
Fault determination criteria
Appearance abnormality: Large-scale detachment of insulation foam, significant reduction in thickness, surface powdering, perforation or hardening after absorbing oil.
Auditory signal: During low-speed acceleration or bumps, a loose knocking or frictional abnormal sound is heard from above the engine compartment (caused by loose components vibrating).
Temperature perception: The outer surface of the engine hood becomes abnormally hot after parking (far exceeding the normal temperature of the same model), or the lower part of the interior control console becomes abnormally hot.
Installation status: Broken snap fasteners, failed back adhesive causing the foam layer to sag, or residual glue stains preventing the new part from adhering.
Treatment plan suggestions
Minor small holes/edge curling: Seal and repair with high-temperature resistant aluminum foil tape to prevent water intrusion and expansion of damage (only for temporary emergency use).
Local detachment/snap breakage: Clean the old glue, replace with a dedicated plastic snap or use high-temperature resistant structural adhesive to re-fix (ensure material meets fire-resistant standards).
Severe damage/painting powdering/oil hardening: Must be replaced as a whole. Original factory parts are preferred; auxiliary parts must confirm compliance with GB8624 fire-resistant standards and avoid using recycled foam (may release toxic gases or self-ignite at high temperatures).
Prohibited actions: Do not blindly install thick insulation foam without leaving space for the original factory heat dissipation design to prevent obstruction of engine heat dissipation and excessive engine temperature.
Maintenance precautions
Material selection: Confirm aluminum foil composite fibers or regular fire-resistant foam (with a temperature resistance of over 300°C), refuse non-marked "fire-resistant foam".
Construction details: Before replacement, thoroughly clean the inner side of the hood of oil stains and residual glue; otherwise, the new part is prone to re-detachment; check if it interferes with the windshield wiper arm or lock mechanism after installation.
Safety warning: Poor-quality insulation foam may ignite or release harmful gases such as hydrogen cyanide under high temperature. If you detect an odor or smoke, stop the vehicle for inspection immediately.
