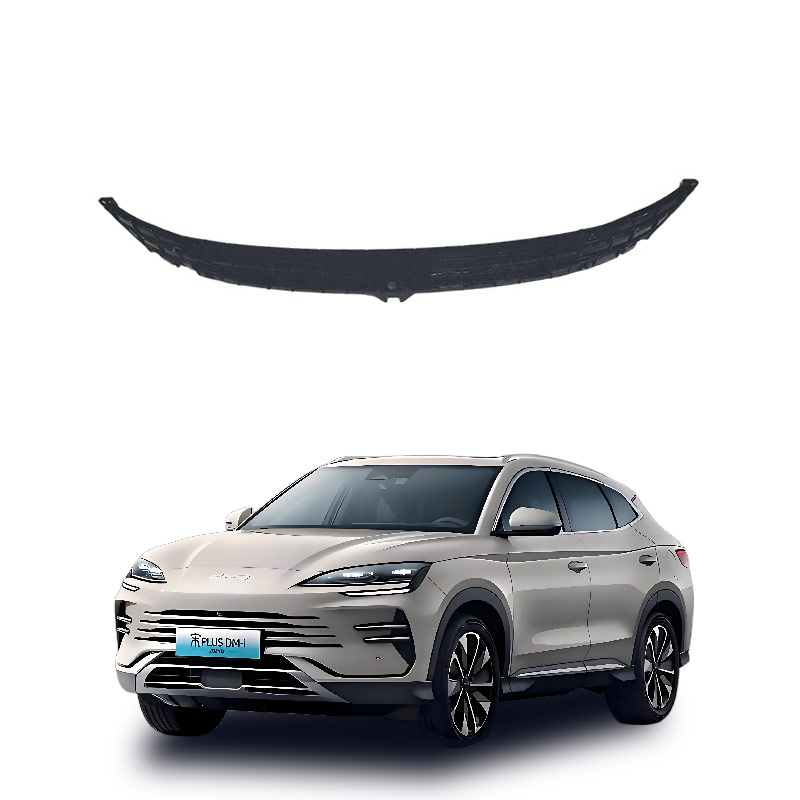

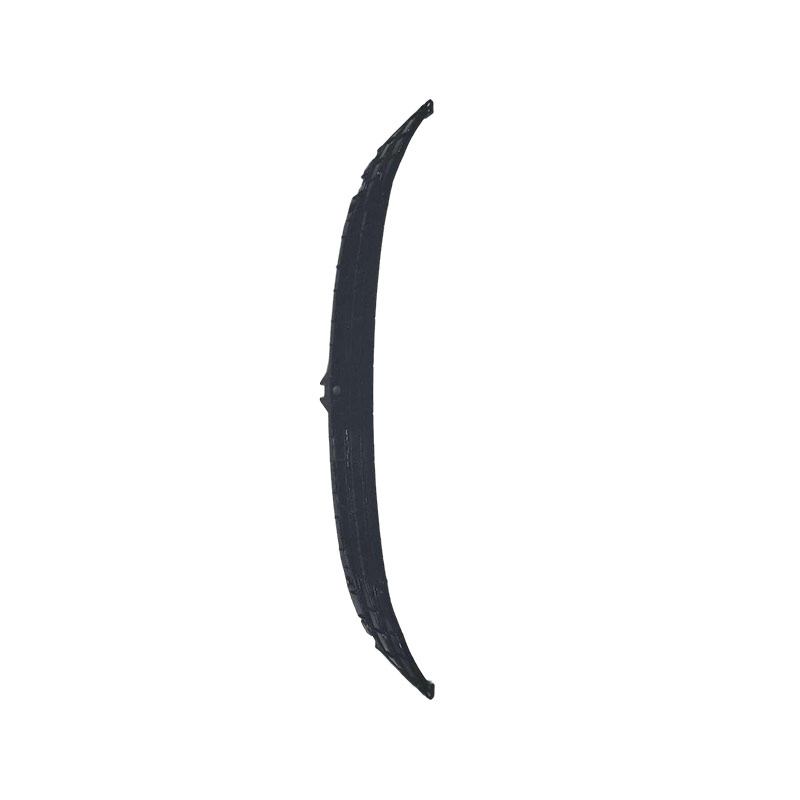

What is the front grille frame of a car?
The front grille frame is the basic supporting structure of the intake grille, usually made of plastic (ABS/PP) or metal (aluminum/steel), used to fix the bars, connect the vehicle body and maintain the overall shape stability.
Core definition and function
Structural positioning: Located at the outermost frame of the vehicle head, it bears the bars, decorative parts and active opening mechanism, and is installed between the front bumper and the front crossbeam.
Main function: Provides mechanical support and fixation points, ensuring that the grille does not deform during driving vibrations; defines the contour of the intake passage, assisting in aerodynamic design.
Material classification: Ordinary models mostly use engineering plastics (lightweight, low cost); luxury or modified models commonly use aluminum/stainless steel (high strength, good texture).
Composition relationship
The grille as a whole is usually composed of "frame + bars/net surface + (optional) insect-proof net/active blades", where the frame is the load-bearing main body, and the bars are attached to it to form ventilation holes. If the frame breaks or deforms, it will cause the grille to loosen, produce abnormal sounds, and even result in the failure of the intake function. In short, it is the "framework" of the grille, which not only determines the stability of installation but also directly affects the overall appearance of the front face.
The front grille frame of a car serves as the basic supporting structure for the intake grille, with its core functions being to fix the grille bars/netting, maintain the shape of the intake channel, transfer collision loads, and bear the brand logo.
Core functions
Structural support and fixation: As the framework, it supports the grille bars, honeycomb netting or insect-proof netting to ensure that the intake channel does not deform or fall off under vibration and wind pressure.
Airflow guidance and shaping: Limiting the opening area and shape, in coordination with aerodynamic calibration, to balance the heat dissipation requirements and wind resistance coefficient, and prevent turbulence.
Protection and force transmission: Blocking foreign objects such as flying stones and insects from directly impacting the radiator; absorbing and dispersing impact forces in minor collisions to protect the internal core components.
Installation and logo carrier: Providing a mounting base for the car logo and sensors (such as millimeter-wave radars), and forming the visual contour of the family-like front face of the vehicle. Additional Explanation
Material Differences: Ordinary models mostly use ABS plastic (balancing cost and toughness), while luxury or sport models often adopt aluminum alloy (high strength and texture).
Different from the bumper bar: The frame mainly deals with low-speed foreign object impacts and structural support, while the main energy absorption components for high-speed collisions are borne by the internal bumper bar.
Active Application: In models equipped with active closing systems, the frame needs to be equipped with a motor and shaft structure to support the adjustment of the blade opening and intake volume.
Faults of the front grille frame mainly refer to physical fracture/carding detachment causing loose abnormal noise or failure of the active grille motor/lever causing abnormal opening and closing, and the choice depends on the degree of damage: replace the assembly or repair the carding/lever.
Core Performance and Causes
Physical Structural Damage: Impact causes the frame to break, the carding to break or age and crack, manifested as grille loosening, detachment, abnormal noise during driving or excessive gap.
Active Mechanism Failure (only for models with active intake grille): Faulty temperature sensor, burned-out drive motor, stuck lever mechanism or broken circuit, resulting in the grille unable to automatically open and close according to water temperature/vehicle speed, which may cause engine overheating or slow warm air response.
Foreign Object Blockage: Leaves and mud blocks between the blades, hindering mechanical movement, causing overload of the motor or deformation of the blades.
Diagnosis and Treatment Plan
Visual Inspection: Visual confirmation of whether the frame has cracks or fractures, whether the carding is missing; manually push to check if it is loose; clean the gap to test if it can be reset.
Function Test (Active Type): Use the diagnostic computer to read the data stream, observe whether the grille opening command and actual feedback are consistent; check the motor power supply lines and fuses.
Maintenance Decision:
Minor Damage: Only carding fracture or minor cracks, can replace the dedicated carding or use plastic welding/high-strength glue bonding for repair (non-load-bearing critical positions).
Serious Damage: Frame main body fracture, motor assembly damage or lever deformation, must replace the grille assembly, local repair cannot guarantee the sealing performance and structural strength of the grille.
Line/Sensor Issues: Replace the sensor or repair the wiring, no need to replace the grille body.
Maintenance Reference Cost (Out-of-Warranty Situation) Notes for Attention
Heat dissipation risk: If the frame is damaged and causes a short circuit in the intake duct or foreign objects to enter the radiator, it may cause the engine to overheat. It is recommended to handle it as soon as possible.
Matching accuracy: When replacing, it is necessary to confirm the vehicle model year and code. For the active grille, the software code needs to be matched to prevent the fault light from constantly illuminating.
Safe operation: When removing the front bumper, pay attention to protecting the radar probe and fog lamp wiring. Non-professionals are advised to have it handled by a workshop.
