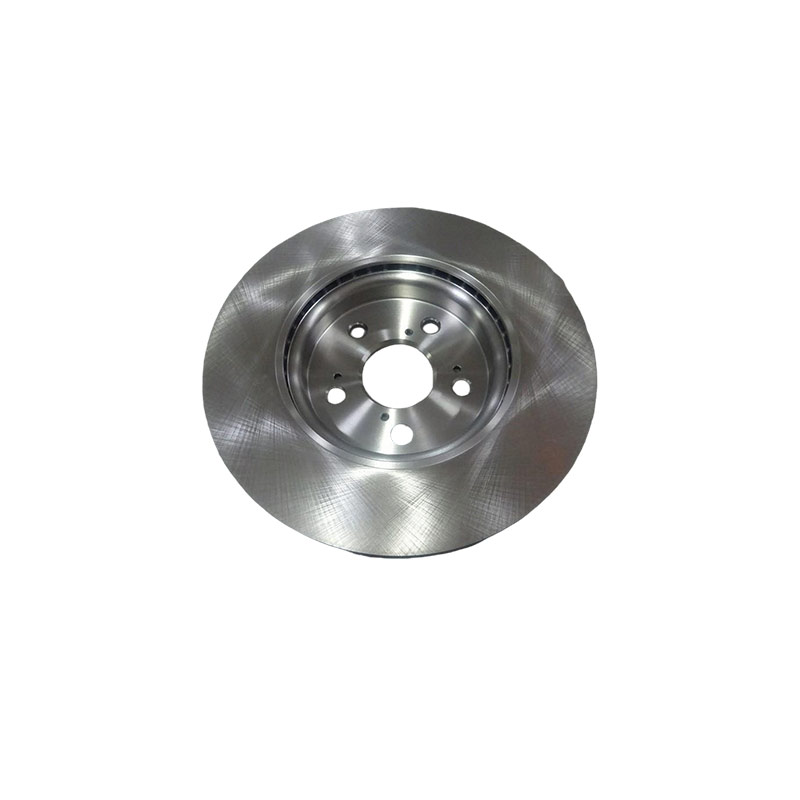

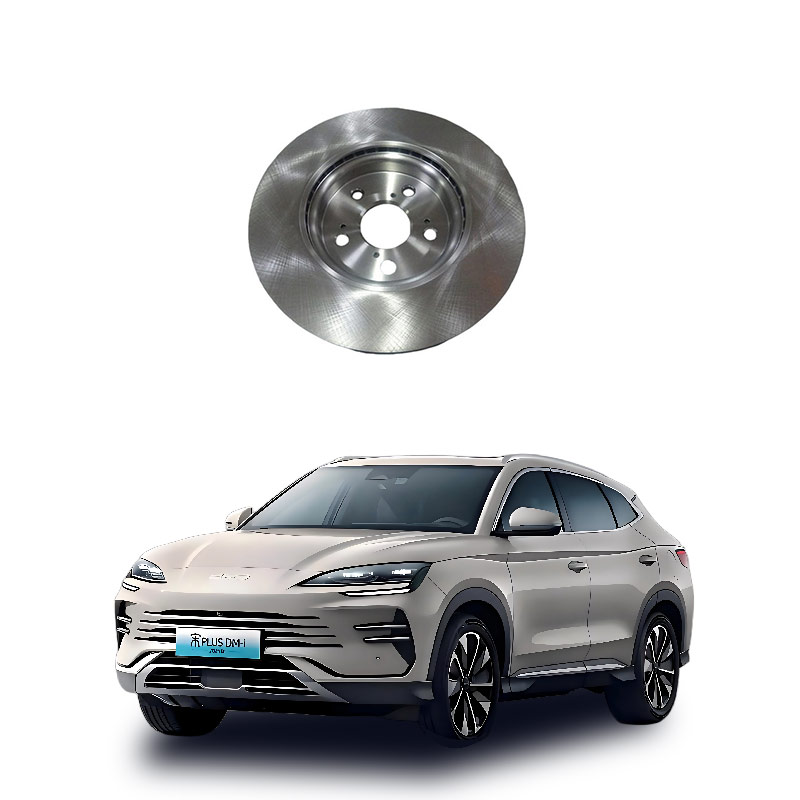

The function of the front brake disc of the car
The front brake discs are the core rotating components of the disc brake system. They convert the vehicle's kinetic energy into heat through friction with the brake pads, generating braking torque to slow down or stop the wheels. Due to their role in bearing approximately 70% of the braking load, they must have efficient heat dissipation capabilities.
Core braking function: As the wheels rotate, the brake pads inside the calipers are clamped and generate friction, directly reducing the wheel speed to achieve deceleration and braking.
Energy conversion mechanism: The vehicle's kinetic energy is converted into heat energy and dissipated to prevent the accumulation of mechanical energy, which could lead to loss of control.
Load-bearing characteristics: Due to the shift of the center of gravity during braking, the front wheels bear the majority of the braking force (typically 70%), requiring higher heat resistance and anti-degradation performance.
Heat dissipation structure design: Most front brake discs adopt a ventilated disc structure (two discs with an intermediate air duct), accelerating air circulation to quickly remove heat and prevent heat loss.
Safety synergy: Combined with systems like ABS, it enables frequent point braking, maintaining braking linearity and direction stability, and having better drainage and mud removal performance than drum brakes.
The front brake discs usually wear out faster than the rear wheels. It is recommended to inspect and replace them every 8-10 thousand kilometers. If deep grooves, steps, or shaking appear on the surface, it is necessary to repair or replace them promptly.
The front brake disc itself does not have a front or rear position. What you are asking about is the installation position of the brake caliper relative to the brake disc. This mainly affects braking stability and the bearing capacity of the axle.
How to distinguish front brakes from rear brakes
The front brake discs are usually larger and thicker than the rear brake discs because the center of gravity shifts forward, and the front wheels have to bear 70% or more of the braking force. The rear brakes only handle about 30%.
What's different when the caliper is installed in front or behind the brake disc
When the caliper is installed behind the brake disc: The caliper exerts downward force during braking, opposite to the upward force exerted by the ground on the tires. The bearing capacity is smaller, and the front wheels are more stable and less prone to nodding.
When the caliper is installed in front of the brake disc: The two forces add together, and the bearing is subjected to greater pressure. However, for stability reasons, this design is sometimes used for the rear wheels.
Which is better
The caliper installed behind the brake disc is more common because it reduces bearing load and improves stability, but this depends on the vehicle design. It cannot be judged simply based on this criterion.
The main symptom of severe wear of the front brake disc is that the braking distance becomes longer, the braking shakes/feels like the pedal vibrates/feels like the foot presses hard, there is a sharp metallic noise, the pedal travel becomes deeper, and there may be accompanying steering deviation.
Core phenomenon
Braking performance degradation: It takes deeper pedal pressure to achieve the original braking force, and in emergency situations, the braking distance is significantly prolonged, feeling like "the brakes have become softer".
Abnormal vibration: During high-speed or heavy braking, there is steering shake, body tremor, or pedal vibration. This is due to uneven friction caused by the unevenness of the disc surface.
Sharp metallic noise: During braking, there is a sharp metallic friction sound (sizzling or whistling), usually caused by direct contact of the metal.
Steering deviation: When one side is severely worn, heavy braking may cause the vehicle to pull to one side.
Visual/diagnostic signals: Visible deep grooves or edges on the disc surface; some models trigger the brake warning light to illuminate.
Potential risks and suggestions
Severe wear will accelerate the wear of the brake pads, increase the risk of heat loss, and even lead to brake failure. If any of the above symptoms occur, stop long-distance or high-speed driving immediately, and go to a professional institution to inspect the thickness and flatness of the disc surface. In necessary cases, replace the front and rear brake discs and brake pads in pairs.
