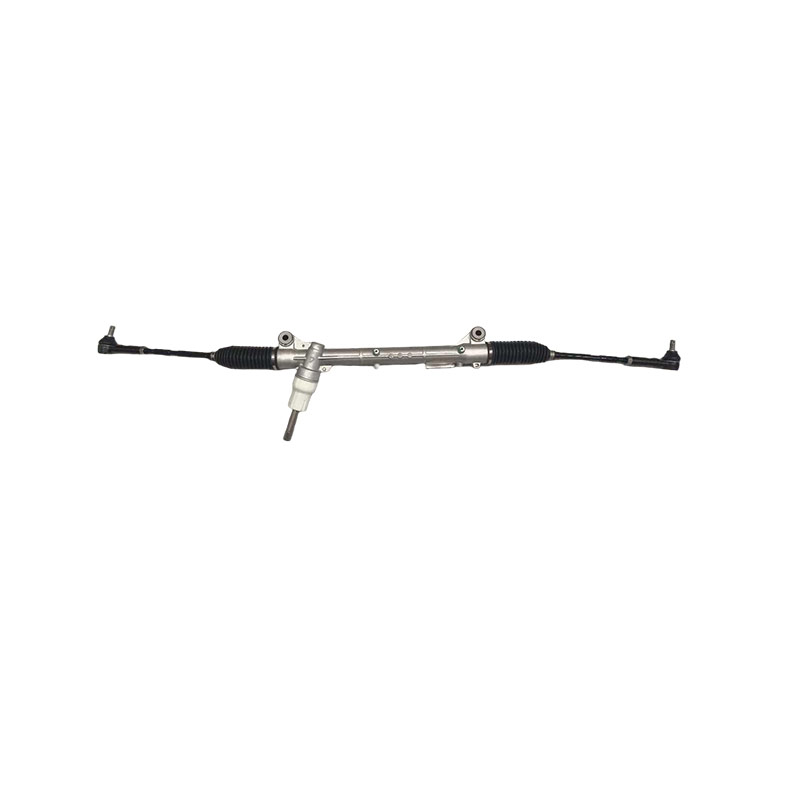

What is the mechanical steering gear with tie-rod assembly in a car?
The "mechanical steering gear with tie-rod assembly" in a car is not a single part, but refers to the "gear-rack type steering gear assembly", which consists of an "active small gear" connected to the steering shaft, a "rack" that meshes with the small gear, and a "steering cross tie-rod assembly" that is directly connected to the ends of the rack and ball-jointed or ball-hung at both ends, working together to achieve "rotary to linear" transmission and drive the wheels to turn.
Core Components and Functions
Steering Gear (Small Gear): Installed at the lower end of the steering column, it rotates with the steering wheel and is the core active component that inputs the rotational motion.
Steering Rack: Meshes with the small gear to convert the rotation of the gear into its own linear reciprocating motion.
Steering Cross Tie-rod Assembly: Usually composed of a tie-rod body, ball stud, adjustment sleeve, and dust cover, one end is directly connected to the end of the rack, and the other end is connected to the steering knuckle arm, responsible for transmitting the linear motion of the rack to the wheels and adjusting the front toe.
Shell and Adjustment Device: Contains the transmission pair and provides preload adjustment to eliminate the meshing clearance to ensure feel and accuracy.
Working Principle Flow
When the driver turns the steering wheel, the torque is transmitted through the steering shaft to the steering gear (active component).
The gear rotates and drives the rack to move linearly along the axis.
The ends of the rack drive the steering cross tie-rod to move synchronously left and right.
The cross tie-rod is pushed and pulled by the ball head to drive the steering knuckle arm, causing the wheels to rotate around the main pin and achieve steering.
This structure is compact, sensitive, and has high transmission efficiency (up to 90%), and is the mainstream form of mechanical steering systems (including the basic mechanical part of hydraulic/electric power assistance) in current cars and light vehicles.
The core function of the mechanical steering gear with tie-rod assembly in a car is to convert the rotational motion of the steering wheel into the linear motion of the rack, and drive the steering knuckle to turn through the tie-rod, achieving wheel steering and torque amplification.
Core Function Mechanism
Motion Form Conversion: The steering gear (small gear) rotates with the steering column, meshes with the rack, and precisely converts the rotational motion into the left and right linear displacement of the rack.
Torque Amplification and Transmission: Through the gear reduction ratio, the output torque is increased, reducing the driver's operating force, and the road reaction force is fed back to the steering wheel to provide road feel.
Tie-rod Linkage Drive: The end of the rack is directly connected to the steering cross tie-rod, and the movement of the rack drives the tie-rod to push and pull, driving the steering knuckle arm to rotate around the main pin, and ultimately changing the wheel angle.
Steering Geometry Guarantee: Combined with the tie-rod, it forms a steering trapezoidal mechanism, ensuring that the left and right wheels turn synchronously according to the Ackerman geometric trajectory, reducing tire wear and maintaining driving stability.
System Synergistic Relationship
Input End: Steering wheel → Steering column → Steering gear (active component).
Transmission End: Gear meshing with the rack → Linear motion of the rack → Connected ball head drives the cross tie-rod.
Output End: Cross tie-rod → Steering knuckle arm → Wheel steering.
Key Characteristics: Compact structure, high transmission efficiency (up to 90%), direct response, widely used in passenger car McPherson suspension systems.
