What is the left front brake guard plate of the car?
The term "left front car brake guard" is not a standard term and typically refers to two different components: the decorative panel above the interior pedal (commonly known as the knee guard) or the dust/ventilation shield for the braking system at the wheel, which needs to be distinguished based on the location.
Core Definition and Distinction
Interior position (above the steering wheel/ pedals): It is called the "left side lower control center cover" or "dashboard wiring harness cover" and mainly serves to shield wires, decorate, and prevent knee scratches. Some models may omit it due to the presence of knee airbags.

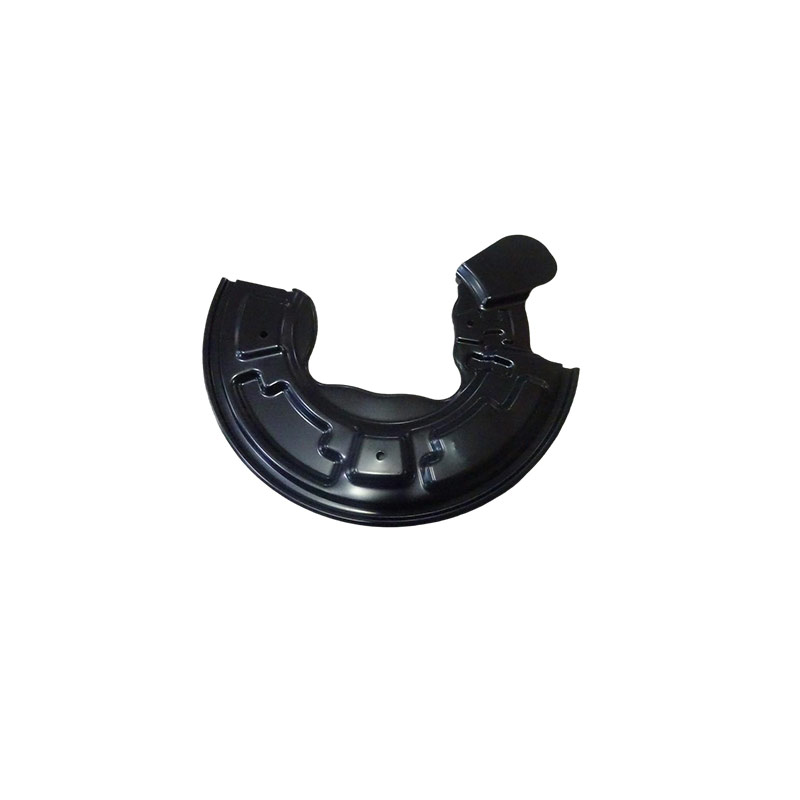

Exterior position (near the left front brake disc): It is called the "brake dust shield" (or heat shield/ventilation plate), which is attached to the rear of the brake disc and is used to prevent sand from entering the friction surface, optimize heat dissipation airflow, and prevent damage to surrounding components from high-temperature radiation.
Key Feature Comparison
Left side lower control center cover: Located in the cockpit, it is mostly made of engineering plastic and focuses on aesthetics and wire protection, without direct braking safety functions.
Brake dust shield: Located in the wheel well of the chassis, it is made of metal stamping parts or high-temperature-resistant plastic and is directly related to braking performance and heat dissipation, and its absence may lead to abnormal noise or heat attenuation.
If you are referring to the plastic cover you see above the foot brake, it is the first type; if you are referring to the metal sheet behind the brake disc when repairing, it is the second type. It is recommended to confirm based on the specific observation location.
The core function of the car's left front brake guard (brake disc dust cover/heat shield) is to prevent foreign objects from entering the gap between the brake disc plate, assist in heat dissipation and prevent heat attenuation, and protect the surrounding suspension components from being corroded by high-temperature dust. Core function
Anti-particle interference: Physical barriers prevent sand, soil, metal debris and other road debris from entering between the brake disc and the brake pads, avoiding scratches on the friction surface or causing abnormal braking sounds and reduced braking force.
Optimized heat dissipation and airflow guidance: Utilizing aerodynamic design to guide air through the ventilation channels of the brake disc, accelerating heat dissipation and preventing "thermal attenuation" phenomena caused by high temperatures during continuous braking.
Protection of surrounding components: Isolating the high temperature and metal dust generated by the brakes, protecting the steering tie rod ball joint, dust covers and semi-axle oil seals and other rubber parts from aging or corrosion damage.
Anti-rust and cleaning: Reducing the direct impact of mud and water on the back of the brake components, reducing the risk of rusting and maintaining a relatively clean interior of the braking system. Additional Explanation
This component is usually a metal stamping part or an engineering plastic, installed closely behind the brake disc. It is a key safety component of the braking system and must not be removed at will. If you hear metallic friction sounds while driving, it is often due to the deformation of the guard plate touching the brake disc. This requires immediate correction or replacement.
The main fault of the left front brake guard plate of the car is manifested as metallic friction noise, deformation scraping the brake disc or foreign objects getting stuck. The core issue is to immediately check whether it is deformed, loose or has foreign objects trapped inside. In severe cases, it needs to be reset, reinforced or replaced to avoid damaging the brake disc and causing brake failure.
Core manifestation and causes of the fault
Deformation scraping: Caused by stone impact or accidental touch during maintenance, the guard plate bends and directly rubs against the rotating brake disc, generating continuous "sizzling" or "clattering" metallic sounds.
Foreign object blockage: Sand, soil get stuck in the gap between the guard plate and the brake disc, causing periodic abnormal sounds as the wheel rotates.
Installation looseness/missing gasket: Loose screws or missing shock-absorbing rubber gaskets cause resonance or displacement scraping of the guard plate.
Misjudgment confusion: Often confused with brake pad wear alarm (sharp and piercing) or caliper guide pin rust (dull clicking), and it is necessary to remove the wheel to confirm the source of the sound.
Troubleshooting and handling steps
Preliminary listening and positioning: Lightly step on the brake and drive. If the abnormal sound changes with the vehicle speed and does not disappear with the braking force, or even continues after releasing the brake, it is mostly due to mechanical scraping of the guard plate; if it only sounds when braking, it is mostly a problem with the pad/disc.
Lift and inspection: Lift the left front wheel and visually check if there is any obvious indentation or deformation of the guard plate; shake the guard plate by hand to check if it is loose.
Cleaning and resetting: Remove the stuck stones and mud; if there is slight deformation, use tools to gently strike to reset, ensuring a safe gap of 2-3mm with the brake disc.
Reinforcement or replacement: Install or replace the missing rubber buffer pad, tighten the screws; if the guard plate is severely deformed and cannot be repaired, it must be replaced with a new guard plate.
Road test verification: After repair, drive at low speed to confirm that the abnormal sound disappears; if accompanied by brake shake or reduced braking force, it is necessary to simultaneously check if the brake disc has been scratched. Risk Warning
Do not overlook: If the guard plate is constantly scraped, it will damage the surface of the brake disc, causing brake judder, reduced braking force, or even disc fracture.
Professional intervention: If the abnormal noise persists after resetting, or if you notice obvious scratches on the brake disc, please immediately go to a repair shop for handling to avoid potential safety hazards.
