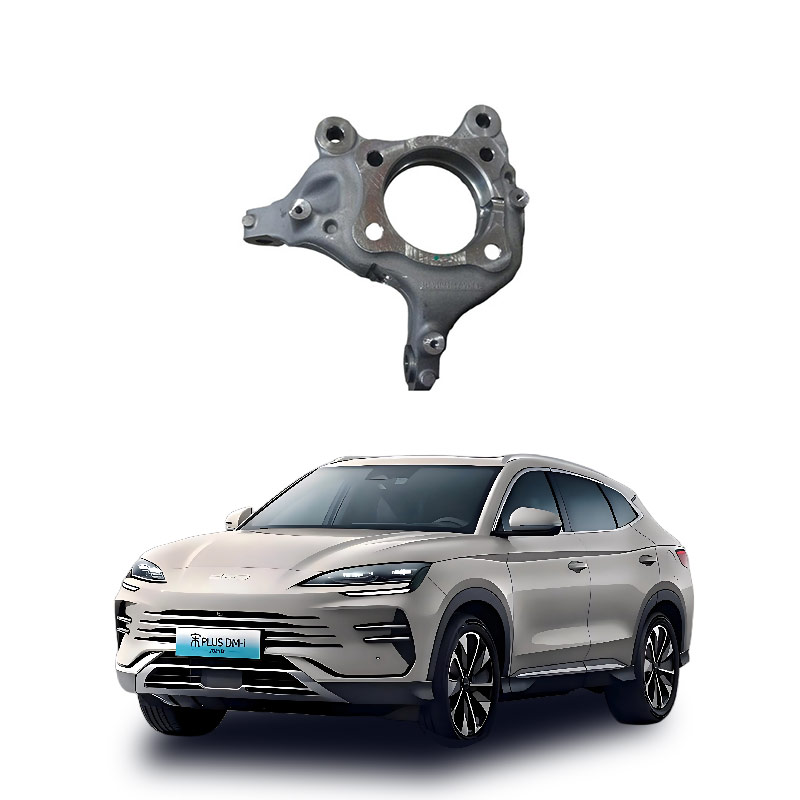

What is a car steering knuckle?
The steering knuckle (commonly known as "the sheep's horn") is the core component that connects the wheel, suspension, and steering system, responsible for supporting the load, transmitting the steering torque, and enabling the wheel to turn. It directly determines the handling stability and driving safety of the vehicle.
Core definition and function
Alias: Sheep's Horn (Steering Knuckle)
Location: Located on the inner side of the wheel, it is the pivot point for the wheel's steering, connecting the hub, upper and lower tie rods, steering tie rods, and braking components.
Main functions:
- Bearing: Withstanding the vertical load of the vehicle and the impacts, braking, and lateral forces during steering
- Steering: Driving the front wheels to rotate around the main pin (or ball joint) to achieve direction change
- Connection: Integrating the suspension, steering tie rods, half shafts, and brake calipers to maintain the wheel alignment parameters (such as camber angle)
Structural and material characteristics

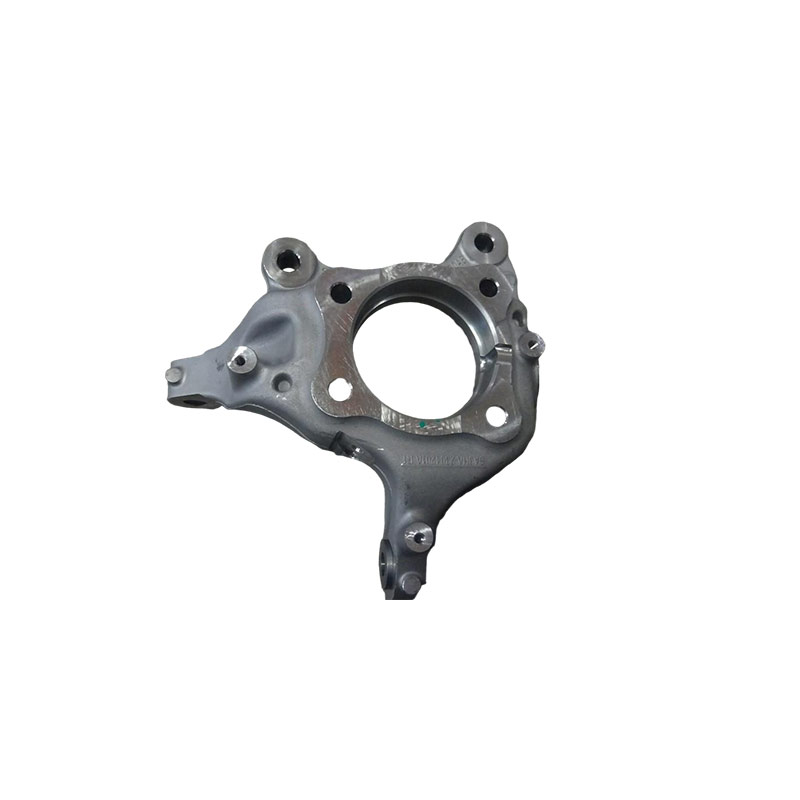

Typical structure: Mostly in a fork shape, including the support pin (for the wheel), the flange (for the brake), and the fork (for the main pin/ball joint)
Key requirements: Must have extremely high strength to withstand dynamic impacts, while also being lightweight
Common materials: Traditionally, it is made of forged steel or cast iron. Modern models often use aluminum alloy to reduce the unsprung mass and improve the response of the steering.
If the steering knuckle is deformed or worn, it will cause the steering wheel to shake, veer, or feel heavy to steer. It needs to be repaired or replaced in time.
The steering knuckle is mainly responsible for bearing the vehicle's weight and driving the wheels to turn. It is the key hub that connects the wheels, the suspension, and the steering system, commonly known as the "sheep's horn".
What does it do
Transmit and bear the load of the front part of the vehicle, support and drive the front wheels to rotate around the main pin to achieve steering, allowing the driver to control the driving direction through the steering wheel.
What are the special requirements
It must have extremely high strength to withstand the variable impact loads, and also be lightweight. It is usually forged from medium-carbon alloy steel and undergoes heat treatment to strengthen it.
If the steering knuckle is deformed or cracked, the vehicle will exhibit symptoms such as abnormal tire wear, steering wheel veering, heavy steering, or difficulty in steering correction, and it needs to be repaired or replaced in time.
Steering knuckle failure refers to the wear, deformation, or fracture of the key component connecting the wheel and the suspension, which will cause steering heaviness/loss of function, veering during driving, abnormal tire wear, and a high risk of severe loss of control, and is a high-risk chassis fault. It requires immediate stopping for maintenance.
Common symptoms and identification
- Abnormal noise and vibration: A "clicking/cracking" metal friction sound is emitted when turning at high speed and large angles or when crossing obstacles. The steering wheel shakes abnormally or there are periodic noises in the chassis during driving.
- Poor control: Heavy steering, excessive free travel of the steering wheel, the vehicle veers without reason or has difficulty steering back.
- Tire and appearance: Single-sided severe wear (tire wear) of the tires; visible cracks in the steering knuckle, excessive clearance of the main pin bushing, or oil leakage traces on the steering knuckle.
- Extreme risk: A severe fracture will cause the wheel to detach instantly or lose steering ability completely.
Common causes
- Mechanical wear: Long-term friction between the main pin and the bushing leads to excessive clearance, dry lubricant, or sand intrusion.
- Impact damage: High-speed impact on the shoulder of the road, deep pits, or long-term overloading driving leads to metal fatigue deformation/cracking.
- Maintenance deficiency: Damage to the dust cover not being replaced in time causes internal rust and accelerated wear.
- Manufacturing/material defect: In rare cases, it is caused by improper heat treatment of the material leading to early fracture.
Disposal and maintenance process
- Emergency response: Once obvious symptoms (especially abnormal noise accompanied by veering or steering jamming) are detected, immediately pull over to the side of the road, do not continue driving at high speed, and call for a tow truck for repair.
- Professional inspection: Lift the vehicle, check the main pin clearance (using a feeler gauge), whether there are visible cracks or deformations in the steering knuckle, and check the condition of the ball joint and bearings.
Maintenance Plan:
Minor Wear/Insufficient Lubrication: For some older structures, the main pin bushing can be replaced and lubricating grease can be re-added (most modern models are maintenance-free or have integrated components, specific vehicle models need to be analyzed).
Deformation/Severe Wear/Rupture: Must directly replace the steering knuckle assembly. Welding or corrective repair is strictly prohibited (the metal structure has been damaged and there is a risk of fracture).
Subsequent Calibration: After replacement, the four-wheel alignment must be adjusted for the front toe and camber, and a road test must be conducted to confirm there are no abnormal noises or deviation.
Safety Warning
The steering knuckle is the core load-bearing component that supports the vehicle weight and controls the direction. There is no such thing as "putting up with it". It cannot be resolved by adding lubricating grease for structural damage. Do not blindly believe the "partial repair" suggestions from unqualified repair shops. It is essential to replace qualified parts and perform professional alignment.
