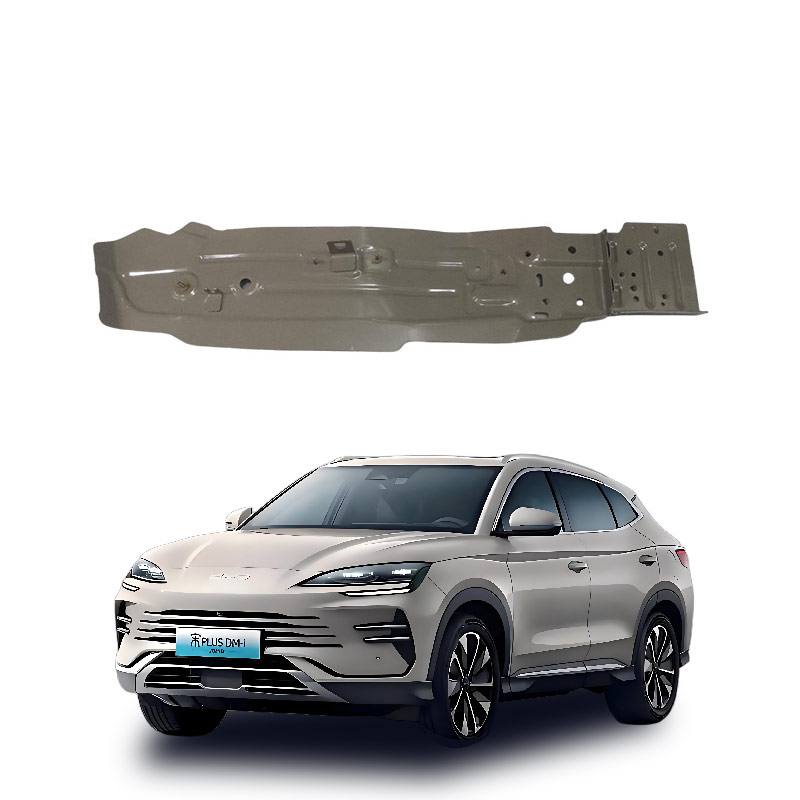

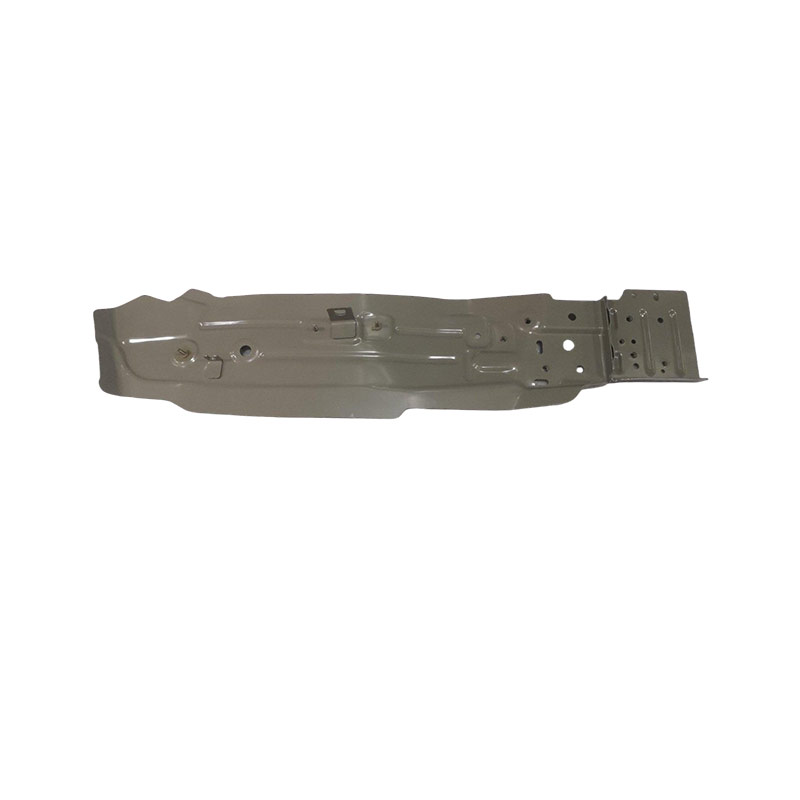

What is the sealing plate assembly for the left front longitudinal beam of the car?
The left front longitudinal beam sealing plate assembly is a metal/composite sheet that covers and seals specific connection points or holes on the left front longitudinal beam. It mainly serves the functions of dust-proofing, waterproofing, sound insulation, and assisting in structural sealing and closure. It is not a primary load-bearing or energy-absorbing component.
Core Definition and Function
Essence: It is a body structure accessory, usually welded or bolted to the surface, end, or connection node of the left front longitudinal beam, used to seal process holes, wiring harness holes, or the gap between the longitudinal beam and the energy absorption box/beam frame.
Main Function: Prevents sand and water from entering the interior of the longitudinal beam, causing corrosion; blocks engine compartment noise from entering the driver's cabin; maintains the airtightness and local stiffness integrity of the vehicle body.
Non-critical Safety Component: Different from the longitudinal beam itself (responsible for collision collapse energy absorption) or the energy absorption box, this sealing plate does not participate in the main collision energy absorption. Damage usually does not affect the core passive safety performance of the vehicle, but a long-term absence may lead to rusting of the longitudinal beam.
Location and Structural Characteristics
Location: Located in the left front engine compartment of the vehicle, on the upper surface, side, or front end of the longitudinal beam where it connects to the energy absorption box, often obscured by the bumper liner or wheel well part.
Material: Mostly thin steel sheet stampings (with anti-rust coating) or engineering plastics, with a thickness much smaller than that of the longitudinal beam body.
Related Components: Adjacent to the left front longitudinal beam, energy absorption box, front crossbeam, and lower part of the front fender, often installed in conjunction with wiring harness covers or sound insulation materials.
Maintenance and Inspection Tips
Accident Vehicle Judgment: If this component has cutting, welding, or severe deformation repair marks, further inspection is required to determine if the left front longitudinal beam body is damaged; simply replacing the sealing plate is usually a normal repair or rust prevention measure, not a major accident.
Replacement Scenarios: Commonly seen in accident prevention maintenance after vehicle immersion cleaning, local repair， or after the sealing restoration of wiring harness modification， not a vulnerable part， and there is no regular replacement requirement.
Note： This name is often found in component catalogs or accident damage assessment lists， not a common vernacular term. The specific structure varies greatly depending on the vehicle model design， and the form needs to be confirmed based on the specific vehicle repair manual.
The core function of the left front longitudinal beam sealing plate assembly is to seal the longitudinal beam cavity to prevent corrosion， optimize the collision force transmission path， assist in structural sealing and sound insulation， and is a key accessory of the front longitudinal beam's energy absorption/strongening structure.
Anti-corrosion Sealing： Welds the opening of the longitudinal beam's slot or box-shaped section to prevent water vapor and sand from entering the cavity， preventing the longitudinal beam from rusting from the inside， ensuring the structural lifespan.
Collision Mechanics Assistance： Forms a specific cavity structure with the longitudinal beam body to guide collapse deformation and enhance local stiffness， assisting the energy absorption box and longitudinal beam in absorbing impact energy in a coordinated manner.
Installation and Isolation： Provides a flat welding surface or positioning reference for engine mounts， steering gears， etc.， while blocking noise and heat from the engine compartment from being transferred to the passenger cabin.
This component is usually located in the front or middle section of the longitudinal beam (the transition zone between the energy absorption area and the load-bearing area)， not an independent load-bearing component but directly affects the overall performance of the longitudinal beam； if it deforms or is replaced due to a collision， it often indicates that the longitudinal beam body structure has been damaged， and a professional safety assessment is required.
There is no standard component called "left front longitudinal beam sealing plate assembly" in automobiles. The so-called faults usually refer to the cracking of the sealing glue at the connection between the longitudinal beam and the reinforcement plate/energy absorption box， rust holes， or structural deformation causing sealing failure， and the core risk is the decline in vehicle rigidity， loss of rust prevention ability， and potential safety hazards.
Core Judgment and Impact
Non-independent Component： The longitudinal beam sealing usually refers to the original factory sealing glue/anti-vibration plate process at the connection between the longitudinal beam and the reinforcement plate， firewall， or fender inner liner， not a replaceable functional component； the fault essence is usually the accident repair marks， aging cracking of the glue layer， or structural deformation. Main hazards: Failure of the sealant will cause water vapor to invade and lead to internal rusting (penetrating from the inside). If accompanied by deformation of the crossbeam, it will directly weaken the collision energy absorption capacity, resulting in steering deviation, abnormal noises, and a significant reduction in the secondary collision protection level during driving.
Accident vehicle definition: If the crossbeam is cut, welded, or severely corrected and repaired, regardless of whether the sealant is reapplied, it is considered a major accident vehicle, seriously affecting safety and residual value.
Causes and manifestations of the fault
Accident repair remnants: After the front collision, the correction of the crossbeam was not thorough, and the uneven stress caused the original factory sealant to be pulled apart, or the sealing process was not properly re-done during the repair.
Natural aging and rusting: Long-term exposure to water or impact from high-pressure water guns during car washing led to the detachment of the sealant layer, and rainwater seeped into the crossbeam cavity, causing internal rusting and expansion, with visible rust seeping out or paint blistering on the surface.
Structural deformation and accompanying issues: Minor bending of the crossbeam that was not reset led to a larger gap between the welded reinforcing plate or sealing plate, losing the sealing effect and possibly causing driving abnormal noises.
Treatment suggestions and solutions
Professional inspection: The vehicle must be lifted onto a jack, and the internal rust condition of the crossbeam should be inspected using an endoscope, and the diagonal data should be measured to determine if it is deformed; key checks should include whether the weld points are flat and if there are any traces of secondary application or flowing of the sealant.
Repair principles:
Only if the sealant layer is cracked but there is no structural deformation: Clean the old sealant, use automotive-specific structural sealant to reapply and seal, and perform rust prevention treatment.
Accompanied by crossbeam deformation or severe rusting: It is strictly prohibited to simply apply sealant to cover up; it is necessary to assess whether the crossbeam assembly or damaged reinforcing plate should be replaced; if cutting and welding repair is carried out, the vehicle is already classified as an accident vehicle.
Safety warning: Issues related to the sealing of the crossbeam structure cannot be handled by oneself; it must be constructed by a professional institution with bridge correction equipment; otherwise, it will seriously affect the passive safety performance.
If you encounter this description in a used car transaction, it is highly likely that the seller is using a euphemistic expression for an accident-repaired vehicle. It is recommended to immediately conduct a third-party chassis structure inspection; do not simply rely on the appearance of the sealant being intact while ignoring the internal structural damage.
