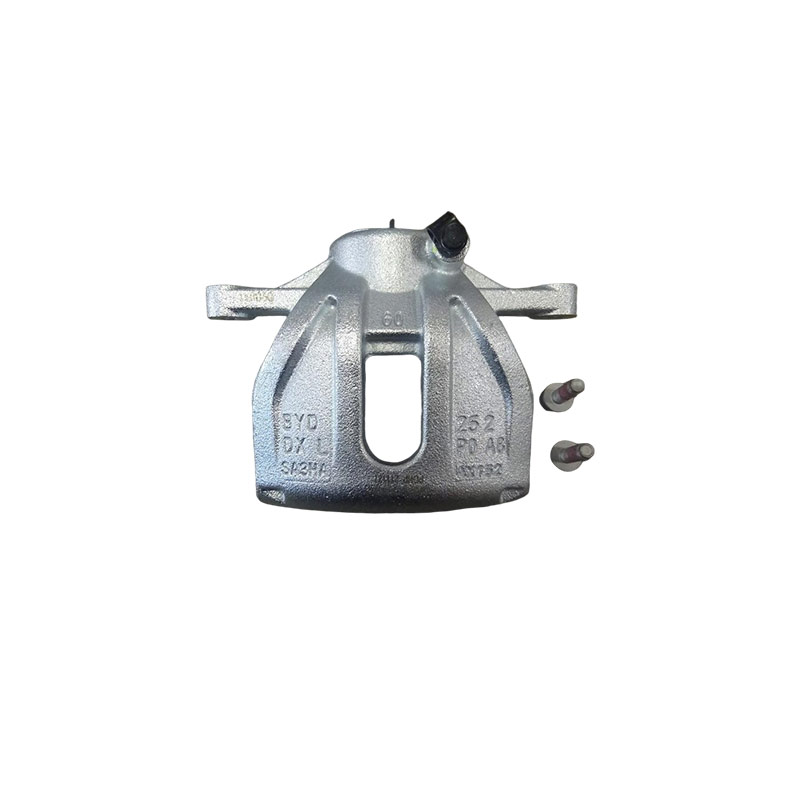

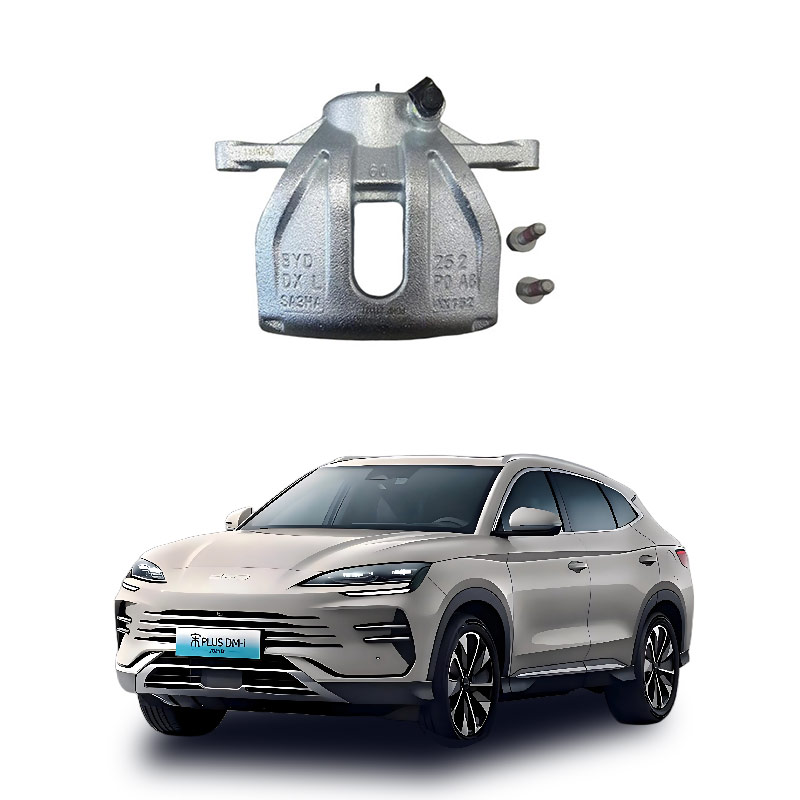

What is the front brake caliper assembly of a car?
The front brake caliper assembly of a car is a collection of core components that form the disc brake core mechanism for converting hydraulic pressure into mechanical clamping force to clamp the brake disc and achieve deceleration or braking. It includes the caliper body, piston, guide pin, brake pads, and seals, among other working units.
Core Definition and Function
Essentially: The "muscle" of the front-wheel disc braking system, receiving hydraulic pressure from the brake master cylinder and driving the piston to push the brake pads to clamp the rotating brake disc, converting kinetic energy into heat energy for braking.
Location: Fixed on the front wheel steering joint or shock absorber bracket, spanning both sides of the brake disc.
Assembly Meaning: It is not a single part, but a functional module composed of the caliper body, piston assembly, guide pin/sleeve, inner and outer brake pads, dust-proof seals, and installation bolts, allowing for independent replacement to ensure synchronous force application and reliable return.
Key Components
Caliper Body: The main structure, divided into floating type (single piston, driven by sliding to push the outer pad) or fixed type (multiple pistons, independently pressurized on both sides).
Piston System: Hydraulic drive component, commonly single/double/four pistons, directly pushing the inner brake pad.
Guide Pin and Dust-proof Sleeve: Ensure smooth sliding of the floating caliper or precise positioning of the fixed caliper, preventing jamming and drag braking.
Brake Pad Assembly: Friction material, the assembly usually contains matching inner and outer friction plates.
Seals and Oil Channels: Internal oil passage for pressure transmission, rubber seals prevent oil leakage and assist piston return.
Correlation with Front Wheel Braking Characteristics
The front wheel bears approximately 60%-70% of the braking load, so the front brake caliper assembly must have higher heat dissipation resistance and braking force output; its condition directly determines the braking distance, pedal feel, and whether it is under-braking. Daily maintenance should focus on lubrication of the guide pin, integrity of the dust-proof sleeve, and piston return status, rather than just the number of pistons.
Core Function Mechanism
Force Conversion and Transmission: Receiving hydraulic pressure from the brake master cylinder, driving the internal piston to move, converting hydraulic energy into mechanical thrust on the brake pads.
Friction Braking Generation: Driving the inner and outer brake pads to synchronously clamp the rotating brake disc, generating controllable friction force, converting vehicle kinetic energy into heat energy for dissipation.
Dynamic Control Execution: Responding to the driver's pedal command, achieving smooth deceleration, emergency braking stop, and static parking (combined with handbrake or electronic parking).
Structural Protection and Stability: Integrated dust-proof sleeve to isolate dust, water vapor, and protect the piston, using shock-absorbing spring plates to suppress vibration noise, ensuring smooth and quiet operation over the long term.
The Importance of Front Wheels
Brake Force Distribution Main Force: During vehicle braking, the center of gravity shifts forward, with the front wheels bearing approximately 70%-80% of the braking force. The performance of the front brake caliper directly determines the braking distance and safety margin.
Heat Dissipation and Response Requirements: Due to the high load, the front brake caliper needs to have better heat dissipation design (such as ventilation disc) and rigid support (fixed type or multi-piston structure is common in front wheels) to prevent heat attenuation.
In short, it is the "last link" of the braking command, directly affecting driving safety and confidence in handling.
