What is the outer pull rod of the right front door lock of the car?

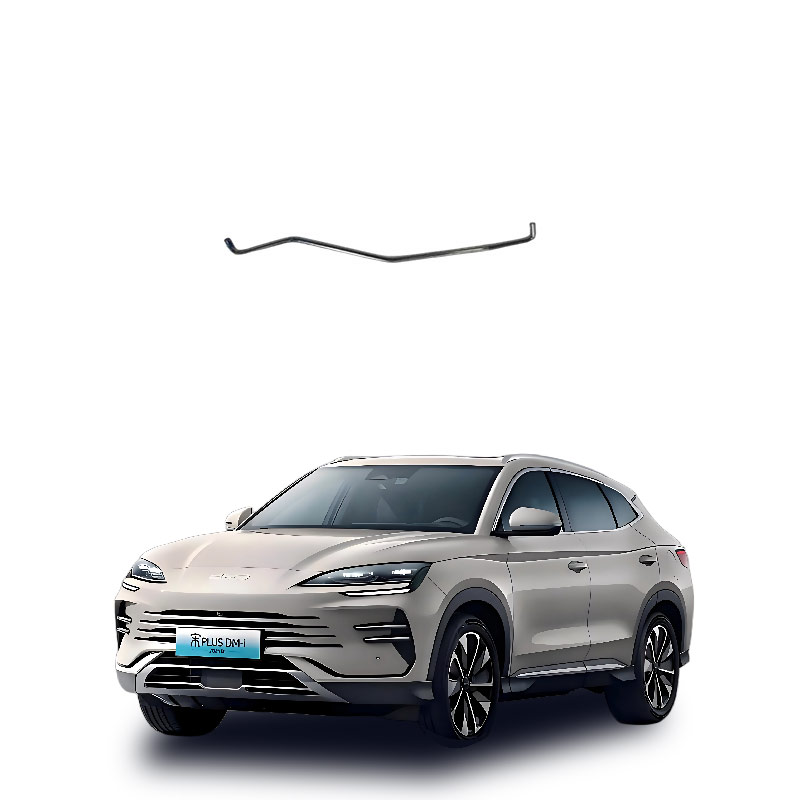

The right front door lock's outer pull rod - the mechanical transmission link in the door lock block mechanism - specifically refers to the metal cable or rigid pull rod that connects the door handle to the door lock assembly (the lock block).
Core definition and function:
Location: Located inside the right front door interior panel, one end is connected to the door handle, and the other end is inserted into the door lock actuator.
Function: When you pull the outer door handle, the outer pull rod mechanically transmits the force to the lock block, triggering the unlocking or opening action; if the pull rod is detached, broken, or deformed, it will cause the outer handle to fail (unable to pull or pulling weakly), but the inner handle or electric unlock usually remains normal.
Structural features: Mostly steel wire soft shafts or rigid rods with ball heads, both ends are equipped with plastic snap fasteners for fixation, and lubrication is required to prevent sticking.
Common fault manifestations:
The outer handle cannot be pulled with resistance or feels "empty", and the door cannot be opened.
After closing, a "click" sound is heard, possibly due to the loosening of the pull rod's latch causing interference.
Only the right outer handle fails, while the remote key and the interior switch's unlocking function are normal.
Maintenance tip:
This component is a purely mechanical structure, and faults are mostly caused by latch breakage or pull rod detachment, with low replacement costs. Maintenance requires disassembling the door panel interior, reinstalling or replacing the same model pull rod to restore functionality. If it involves an electronic central locking motor failure, it does not fall within the scope of the outer pull rod issue.
The outer pull rod of the car's right front door lock's core function is mechanical transmission, converting the pulling action of the door handle into an unlocking signal inside the lock block.
Power transmission: When the driver or passenger pulls the right front door handle outward, the outer pull rod moves accordingly, directly pulling the lever or release lever inside the door lock mechanism.
Release locking: Through mechanical linkage, the locking tongue or pawl is forcibly opened, switching the door from "locked" to "openable" state, achieving physical unlocking.
Independent redundancy: As a purely mechanical connection component, it does not rely on circuits or motors. Even if the vehicle is powered off, the battery is depleted, or the electronic system fails, it can still open the door normally by pulling the handle manually, ensuring emergency escape safety.
If the outer pull rod is detached, deformed, or broken, it will cause the outer handle to be ineffective (unable to pull or weak pulling), at which point it is necessary to manually unlock from the inside or replace the pull rod/handle assembly.
The failure of the car's right front door's outer pull rod usually manifests as being unable to open the door from outside, while it can be opened normally from inside. The main reason is the detachment, fracture, or jamming of the cable (pull rod) connecting the outer door handle to the lock block.
Typical fault phenomena:
Only the outside door cannot be opened: Pulling the outer door handle without resistance or with a weak pull, the lock block does not move; the interior handle or the central lock can be normally unlocked and opened.
Strange sounds or sticking: When operating the outer handle, a "click" sound is heard but the door does not open, or the feel is rough and the rebound is weak.
Cable loosening: In some models, due to aging plastic snap fasteners, the cable (pull rod) may detach from the lock block or handle end, causing transmission failure.
Quick troubleshooting and emergency handling:
Confirm the fault range: Try unlocking with the remote key and then pull the outer handle; if it still fails, it is basically confirmed as a mechanical transmission fault (not an electronic lock motor problem).
Emergency entry:
优先 use the interior handle or the central unlock to enter the vehicle.
If you need to enter the vehicle from outside urgently， you can use tools to hook the inner handle and pull (only when the glass is lowered)， or use a mechanical key to open the door (if the lock core is independent and not damaged).
Do not use violent operations： Do not forcefully pry the door or pull the handle forcefully， as this may damage the door panel trim or the lock core. Wire breakage/deformation: A new wire must be replaced. Pay attention to choosing accessories that match the original vehicle specifications. During installation, the tightness of the wire needs to be adjusted. If it is too tight, the lock block will not reset properly; if it is too loose, the lock cannot be opened.
Lock block linkage mechanism damage: If the wire is normal but the internal gears of the lock block are worn, the door lock assembly needs to be replaced directly. Notes for Attention
Construction difficulty: The interior panels of the car doors need to be removed (including snap fasteners, waterproof films, and wiring harnesses). It is recommended to have this done by a professional repair shop to avoid damaging the sound insulation materials or causing water leakage.
Prevention suggestions: Spray a small amount of WD-40 or lubricating grease at the outer pull rod joint regularly to prevent rust and sticking; avoid frequently forcefully opening or closing the car doors.
If you do not have the experience in disassembly and assembly, please go directly to the repair station and clearly state "fault of the outer pull handle cable on the right front door", which can shorten the diagnosis time.
