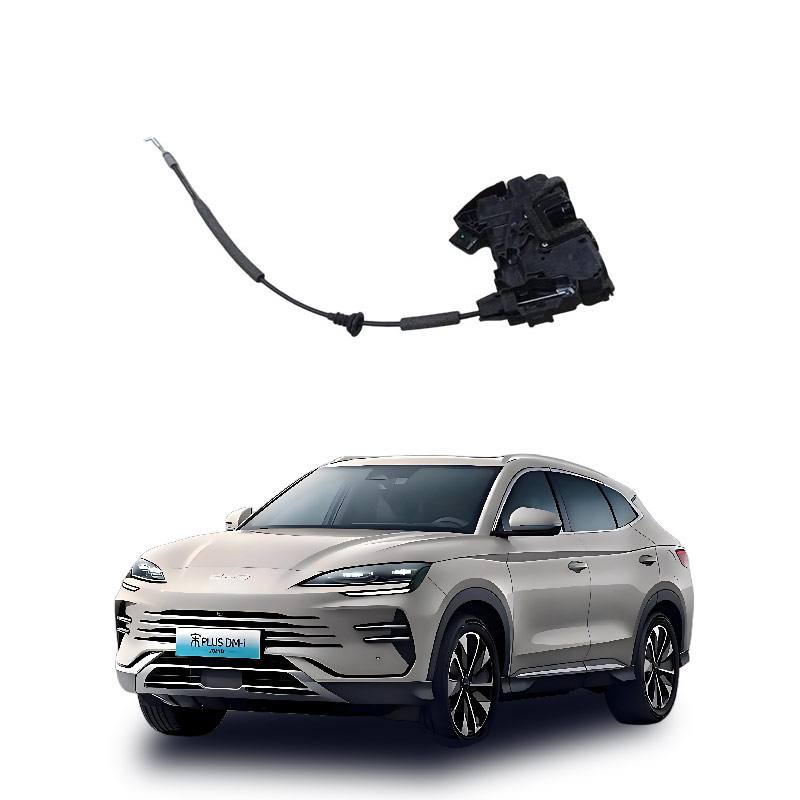

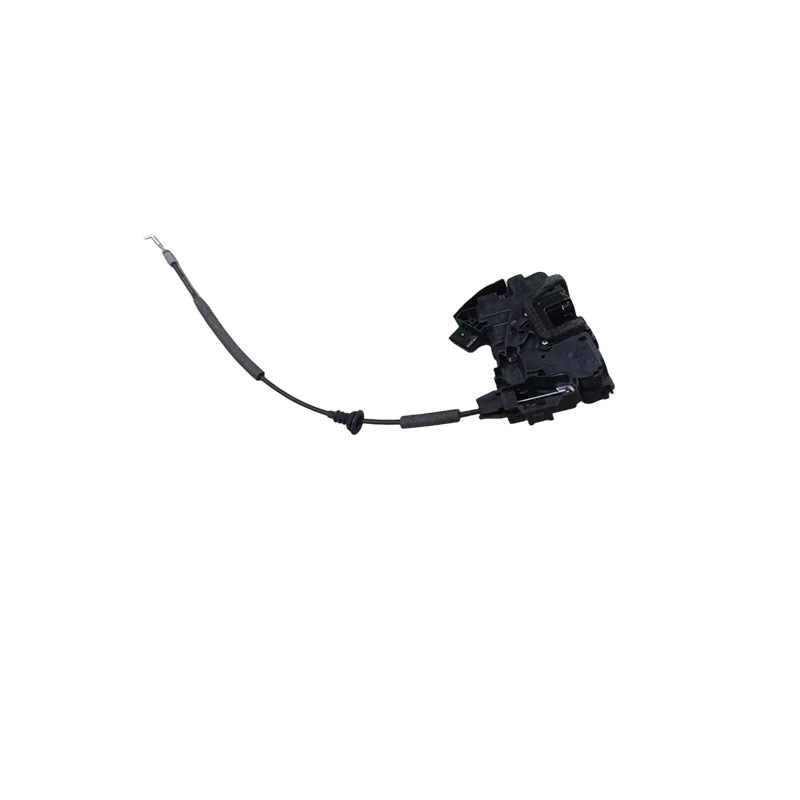

What is the left front door lock assembly of the car?
The left front door lock assembly is a core safety component installed on the driver's side door, responsible for achieving mechanical locking, electric control, and anti-theft functions, ensuring the sealing and safety of the vehicle during driving and parking.
The core components include:
- Lock body mechanism: consisting of the lock core, lock tongue (screw), and connecting rod, which physically bite to prevent the door from accidentally opening.
- Actuating motor: receiving signals from the central control or remote control to drive the lock tongue to extend and retract, achieving automatic locking/unlocking.
- Electronic control module: connected to the vehicle's CAN bus, responding to commands such as keyless entry and remote vehicle control.
- Linkage interface: reserved mechanical interfaces for connecting the inner and outer handles and key pullers, ensuring manual emergency operation.
Main functions:
- Safety locking: maintaining the locked state in the event of collision or vibration, preventing the door from opening due to inertia.
- Anti-theft protection: linked with the central door lock system, forming a closed protection circle, triggering alarms in case of illegal intrusion.
- Convenient control: supporting various unlocking methods such as remote key, interior buttons, and keyless entry.
- Special protection: some models integrate child lock logic or anti-misoperation design, enhancing passenger safety.
Common fault manifestations:
If this assembly is damaged, phenomena such as inability to lock/unlock the door, repeated jumping of the central lock, and no response when turning the key may occur. Usually, the entire assembly needs to be replaced rather than repairing individual parts.
The left front door lock assembly is the core execution component of the vehicle's access system, mainly responsible for three core functions:
- Basic locking and safety protection: through the mechanical lock tongue engaging with the vehicle body lock, ensuring the door remains closed during driving and preventing it from opening due to inertia, serving as the first line of defense for vehicle passive safety.
- Central control and convenient control: as the main lock on the driver's side, it receives signals from remote keys, keyless entry, or interior switches, and drives the motor to achieve synchronous locking/unlocking of all vehicle doors, improving operational efficiency.
- Status feedback and anti-theft coordination: with built-in position switches, it detects the opening/closing status of the door and transmits the signal to the vehicle body control unit (BCM), cooperating with the vehicle's anti-theft system to trigger alarms or prohibit starting, ensuring static vehicle safety.
Additionally, some models integrate child lock logic or anti-clamping functions, further considering the safety protection of passengers. If there are locking noises, inability to control remotely, or jamming phenomena, usually the lock block motor, connecting rod mechanism, or microswitch need to be checked for damage.
Left front door lock assembly faults typically manifest as inability to lock/unlock the door, inability to open the door, or abnormal noises during driving. The most common faults occur in mechanical jamming, loose pull lines, motor aging, and wire bundle breakage.
Core fault causes and troubleshooting:
- Mechanical structure issues: rust or dust accumulation inside the lock block causing the lock tongue to get stuck; loose or broken door handle pull lines, unable to transmit opening/closing force; misaligned hinges causing incorrect lock engagement.
- Electrical system faults: aging and weak motor (actuator) or burnout of the door lock; broken or short-circuited wire bundles at the door hinge due to long-term bending, preventing signal transmission; malfunction of the central lock control module.
- External factors: triggering sensor protection due to the door not being fully closed; low battery level of the remote key or signal interference (if only remote control fails, the mechanical key is usually normal and the problem is likely with the signal).
- Simple self-check steps:
- Listen for sounds: when operating the key, place it close to the left front door and listen for the motor's "sizzling" sound. If there is sound but the lock does not move, it is mostly mechanical jamming or loose pull lines; if there is no sound, it is mostly motor damage or circuit breakage. Inspecting the wiring harness: Focus on checking the rubber corrugated tube at the connection between the left front door and the vehicle body. Tear it open to see if the internal wires are broken or corroded (high-frequency fault point).
Lubrication test: Spray the lock cylinder and lock tongue with a special lubricant (such as WD-40), and try to manually open and close. If it recovers, it is only due to lack of oil and rust.
Maintenance suggestions
Minor fault: Clean the lock block, lubricate the mechanical parts, or adjust the lock catch position. This is a cost-effective solution.
Serious fault: If the motor is damaged or the internal gears of the lock block are broken, it is necessary to replace the left front door lock assembly. The disassembly requires removing the door interior panel, sound insulation film, and pull wire. The operation involves circuit matching and waterproof sealing. Professionals are recommended to handle it if you are not familiar with the process to avoid damaging the door seal or the latch.
Cost reference: The cost of an aftermarket assembly is about several tens to hundreds of yuan, while the original factory assembly costs several hundred yuan or more, including labor costs.
If the vehicle is still within the warranty period, contact the 4S store for claim first; if it has exceeded the warranty period, it is more reliable to choose a reputable repair shop to replace the assembly.
