What is the key component of the vehicle lock for automobiles?

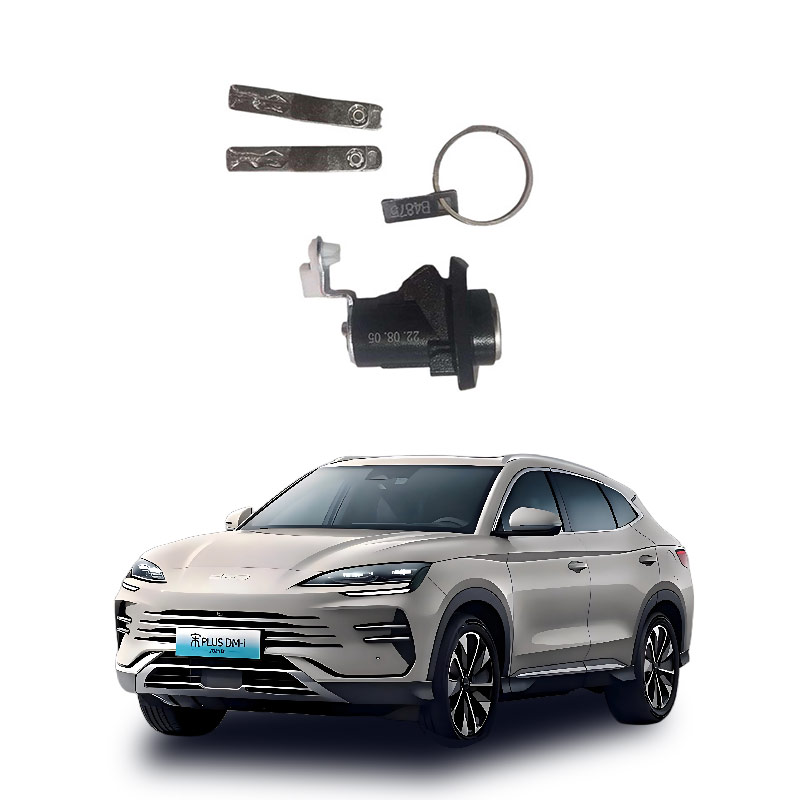

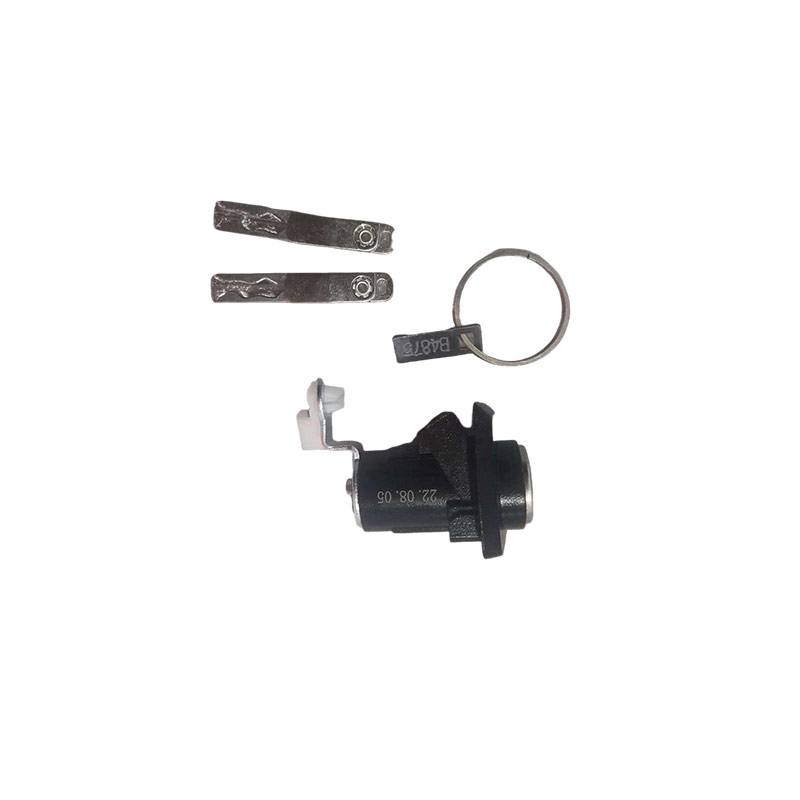

The vehicle lock cylinder key assembly is a core integrated system combining mechanical locking and electronic anti-theft verification. It consists of a physical lock cylinder, matching keys, and an internal identification module, used to control the opening and activation permissions of the doors, trunk, or ignition system.
Core components
Lock cylinder body: Usually in the form of a blade or pin structure, it contains blades/pins, springs, and a lock cylinder. When the key is inserted, the teeth or inclined surfaces push the internal components into alignment, releasing the lock pin jamming and allowing the lock cylinder to rotate.
Key body: Includes a mechanical toothed part (for physical unlocking) and an internal RFID chip (RFID/transponder). The chip stores a unique encrypted code and can interact with the vehicle's anti-theft system through electromagnetic induction without a battery.
Electronic verification unit: Integrated into the ignition switch or door lock controller, it reads the signal from the key chip. If the code matches, the ECU allows the starting circuit to be connected; if not, it cuts off the fuel or ignition supply to prevent illegal starting.
Main functions
Mechanical locking: Directly drives the lock tongue or linkage through the rotation of the key to achieve the physical opening and closing of the doors, trunk, or ignition switch.
Identity authentication: Communicates bidirectionally with the vehicle's anti-theft system (Immobilizer) using the chip to ensure only authorized keys can start the vehicle.
Signal linkage: On the basis of the traditional mechanical lock, some components also undertake the functions of transmitting remote control signals or keyless entry (Kessy) sensor triggering.
This component is the first line of defense for vehicle passive safety. Modern models mostly adopt a dual verification mechanism of mechanical and electronic, and simply replicating the mechanical toothed part cannot start the vehicle.
The lock cylinder key assembly of a vehicle is the core combination of mechanical anti-theft and electronic identity authentication, mainly responsible for three functions: physical opening, anti-theft verification, and emergency backup.
Core function
Mechanical unlock control: The key teeth precisely match the pins/leaves or blades inside the lock cylinder when rotated, pushing the lock tongue back and directly achieving the physical opening and closing of the doors, trunk, or ignition switch, without relying on power.
Electronic anti-theft authentication: The key contains an anti-theft chip (Transponder), which interacts with the vehicle's ECU through encrypted signals when inserted into the ignition lock or when near the sensing area; only when the chip code matches, the engine allows fuel injection and ignition, preventing illegal starting.
System emergency backup: In the event of depleted remote control batteries, electronic system failures, or keyless entry failure, the mechanical key serves as the final line of defense, allowing the unlocking of the doors and vehicle startup, ensuring the continuity of vehicle usage.
Key component synergy
Lock cylinder structure: Contains pins/leaves, springs, and a clutch mechanism. Some high-end models adopt an "idle lock cylinder" design, where non-original keys inserted cannot drive the transmission mechanism, providing stronger anti-tech opening capabilities.
Key chip: Passive integrated circuit that does not require a battery, activated by electromagnetic induction and transmitting the unique identity code back; it is the key to distinguishing whether the key can open the door or start the vehicle.
Read coil: Surrounding the ignition lock cylinder, responsible for transmitting low-frequency signals to activate the chip and receiving feedback codes to complete the identity verification loop.
Although modern vehicles mainly rely on electronic remote control, the lock cylinder key assembly remains the cornerstone of the safety system, balancing high reliability and survival capabilities in extreme situations.
