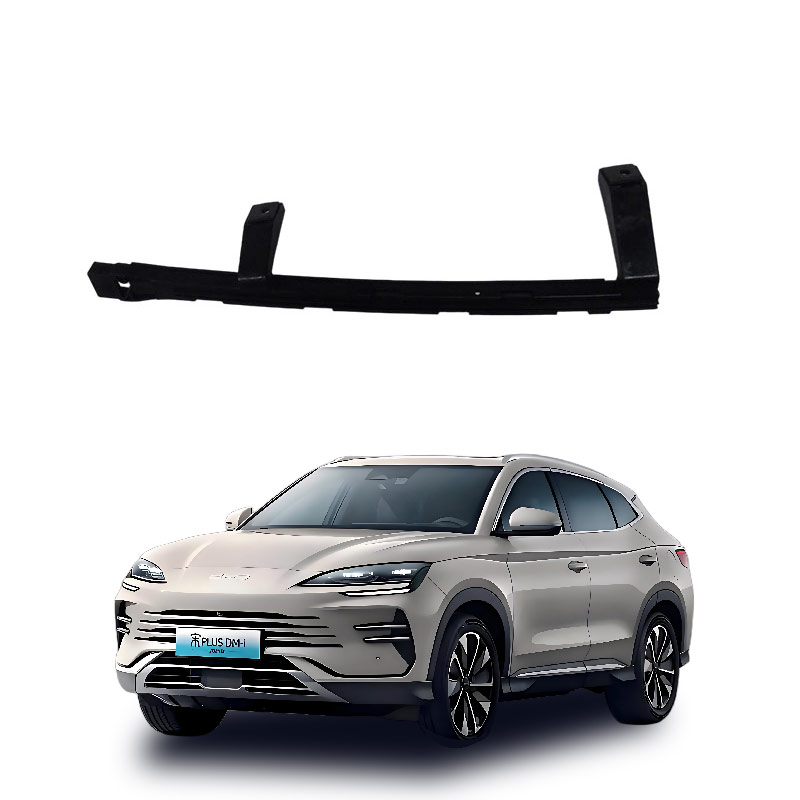

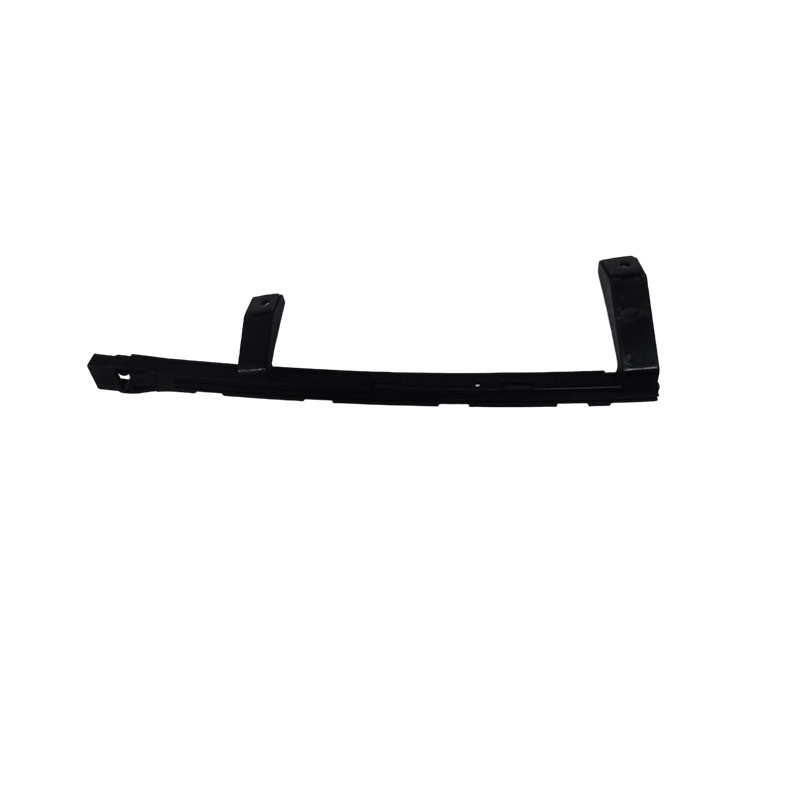

What is the movable guide rail and groove assembly for the left front door of the car?
The "movable guide rail and groove assembly" for the left front door of a car usually refers to the guiding and sealing assembly of the window glass lifting system, not the sliding rail for the overall opening and closing of the door (the left front door of a regular sedan is hinged and has no external movable sliding rail). This component is composed of a metal guide rail frame and a rubber/composite material groove, and its main function is to guide the glass to rise and fall smoothly and achieve sealing.
Core Components
Metal Guide Rail (Frame): Mostly made of cold-rolled steel plate (SPCC) in a U-shaped slot structure, with a thickness of approximately 0.7-0.8mm. It is fixed to the inside of the door by clamping or bolts, providing a rigid support track for the glass.
Glass Guide Groove (Sealing Strip): Wrapped around the outside of the metal guide rail or embedded in the groove, made of TPE soft rubber, EPDM rubber or composite materials, directly contacting the edge of the glass, providing lubrication, shock absorption, waterproofing, dustproofing and sound insulation functions.
Connection Structure: Some designs include bent hooks or clasps to ensure a tight fit between the groove and the rail, preventing detachment or shaking. Main function
Stability-oriented: Limit the movement trajectory of the glass, keep the gap within 2-2.5mm, to ensure no jolting or shaking during the lifting process.
Sealing protection: Block rain, dust and foreign objects from entering the interior of the door, protecting the lifting motor and wiring.
Noise reduction and vibration suppression: Absorb the vibrations generated by the glass movement, suppress wind noise and mechanical abnormal sounds.
Common fault manifestations
If this component is aged or damaged, it may cause phenomena such as window lifting jamming, abnormal sounds (creaking), rain leakage in rainy weather, and glass shaking, requiring replacement of the original or high-quality compatible parts to restore performance.
Note: If your vehicle is a side-hinged door model (such as some MPVs), then "movable guide rail" may refer to the upper/middle/lower three-track system of the door body sliding, but the left front door in most passenger cars only involves glass lifting guidance.
The "movable guide rail and groove assembly" of the left front door of a car usually refers to the window glass lifting guide rail and groove sealing assembly, whose core function is to guide the glass to rise and fall smoothly and provide sealing protection.
Core functions
Guidance and support: As the mechanical track for window lifting, it limits the movement trajectory of the glass, ensuring its vertical or smooth movement at the set angle, preventing the glass from shaking, jamming or derailing during operation.
Sealing protection: The rubber/TPV material lips on the inner side of the guide groove closely adhere to the glass, providing waterproof, dust-proof and sound insulation functions, blocking rain, sand and other substances from entering the interior of the door, protecting the lifting motor and wiring.
Vibration reduction and noise suppression: Through elastic materials to buffer the contact between the glass and the metal structure, suppressing abnormal sounds and vibrations during the lifting process, improving NVH (noise, vibration and sound insulation roughness) performance.
Common misunderstandings clarification
If it refers to a side-hinged door (such as MPV models), then the guide rail is responsible for bearing the weight of the door and guiding horizontal sliding; but the left front door of most passenger cars is a flat door, and there is no "door body moving guide rail", only the "window lifting guide rail" exists. The "slot" commonly referred to in daily life mostly refers to the external "glass groove" (for ventilation/cleaning assistance) or the internal "lifting groove", which work together to ensure the normal operation of the window system.
Maintenance tips
If there is difficulty in lifting, abnormal sounds or water leakage, it is usually caused by accumulated dirt on the guide rail, lubrication failure or aging of the rubber strip, and requires timely cleaning of dirt and application of special lubricating grease. Severe deformation requires replacement of the assembly.
