What is the front door glass assembly of a car?
The front door glass assembly of a car refers to a movable window assembly installed inside the vehicle's front door, consisting of tempered glass, a lifting mechanism, and a sealing system. It mainly serves the functions of providing lateral vision, noise and heat insulation, and supporting the rigidity of the vehicle body.
Core Components

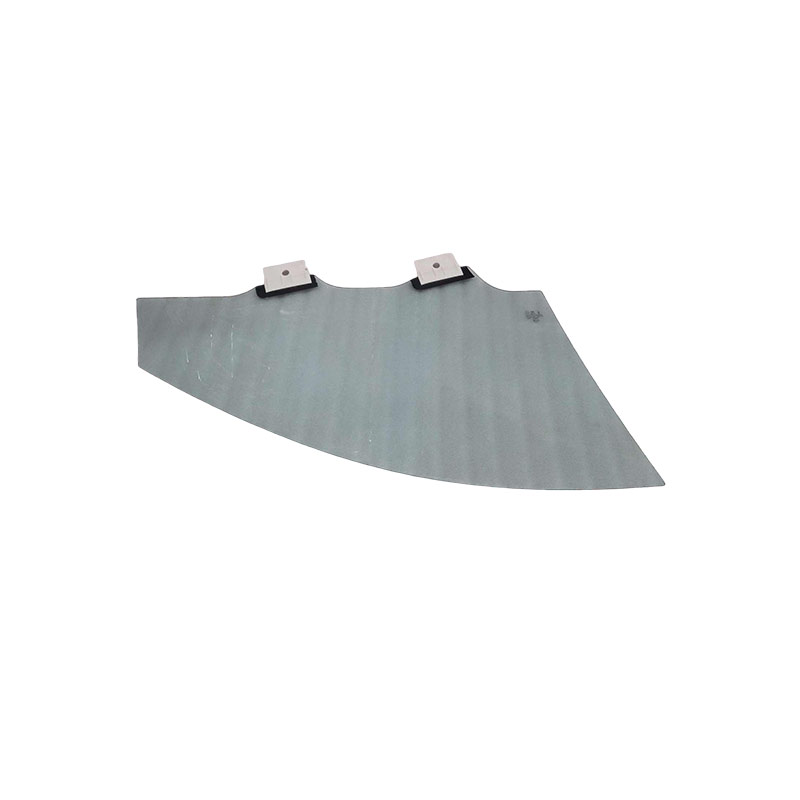

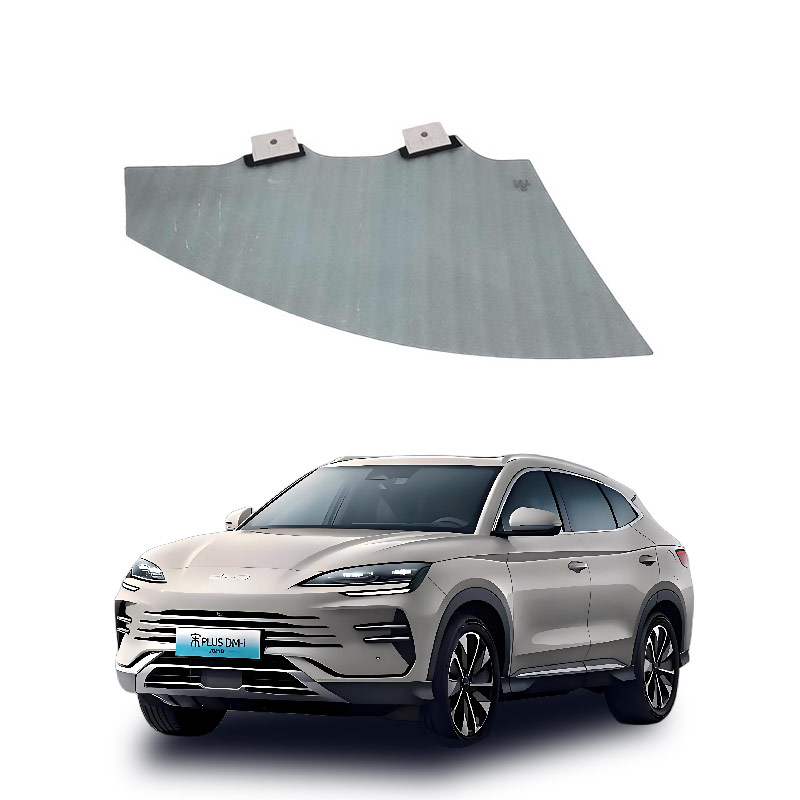

Front Door Glass Body: Usually made of tempered glass with a thickness of approximately 3.5mm (some high-end models include a sound insulation layer), which breaks into blunt small particles to reduce the risk of injury; some models also include fixed front door triangular glass to optimize the vision in the A-pillar blind spot.
Glass Lifter: The mechanical structure that controls the up and down movement of the glass. The mainstream type is electric (including motor, guide rail, and anti-clamping module), while a few are manual.
Sealing and Guidance System: Includes glass guide channels (made of bristles or rubber, reducing friction and wind noise) and waterproof sealing strips, ensuring the airtightness and watertightness when the door is closed.
Auxiliary Accessories: Such as glass positioning pins, limit blocks, and exterior decorative strips, used to fix the glass position and enhance the appearance quality. Main function
Safety and Vision: Provides a side-view perspective, combined with triangular glass to eliminate blind spots during turns; the tempered feature ensures that fragments do not fly off during a collision.
Silence and Protection: Multi-layered sealing structure isolates external wind noise and rainwater, and some components integrate sound insulation layers to enhance the comfort of the driver and passengers.
Structural Synergy: Forms a closed frame with the door sheet metal and A-pillar, assisting in the dispersion of side-impact forces and enhancing the overall rigidity of the vehicle body.
This component needs to work in coordination with the door lock, interior panel, and electronic control system. If there is a problem with the up and down movement or a seal failure, it usually involves a malfunction of the up and down motor or aging and deformation of the guide slot.
The front door glass component of a car is the core part of the side window system, mainly responsible for four functions: providing side-viewing, isolating the external environment, providing passive safety protection, and assisting in structural support:
Providing Side View: As the main window for the driver and front passengers to observe the side road conditions, blind spots, and rear vehicles, it is combined with the triangular window (if present) to optimize the visual coverage during turns and lane changes.
Isolating the External Environment: Through the combination of sealing strips and the door frame, it effectively blocks wind, dust, noise, and foreign objects from entering, maintaining the quietness and cleanliness inside the vehicle, and enhancing the comfort of the passengers.
Passive Safety Protection: Modern front door glass often uses tempered glass, which forms blunt-angle small particles when broken, reducing the risk of cuts to the occupants; some models integrate privacy coatings or heat insulation layers to block ultraviolet and infrared rays.
Assisting in the Overall Body Rigidity: After the glass is installed, it forms a closed force surface with the door sheet metal, assisting in the dispersion of impact forces during side collisions, reducing door deformation, and protecting the integrity of the passenger compartment.
It should be noted that the front door glass is usually a liftable tempered glass, and there are differences in material and safety standards compared to the laminated glass used in the front windshield.
The failure of the front door glass component is usually manifested as inability to lift, abnormal noise, sticking, or automatic rebound. The main causes are concentrated in mechanical obstruction, electrical failure, and system logic errors.
Common Fault Causes and Troubleshooting
Mechanical Obstruction (Frequent): Dust/foreign objects accumulate in the glass guide slot, aging and hardening of the sealing rubber strip, or deformation, resulting in excessive resistance; the steel wire rope of the up and down motor is off the track, the installation deviation of the guide rail, or loose fixing screws, causing the glass to deviate from its running trajectory.
Electrical Components Failure: The up and down motor burns out, overheats, or has internal coil short circuits; the contact points of the control switch are worn and contact poorly; the wire harness is broken, the plug is loose, or the corresponding fuse melts.
System Logic Issues: Battery disconnection or voltage fluctuation causes data loss in the control module, resulting in "one-click lift" failure or incorrect triggering of the anti-clamping function.
Quick Self-Check and Resolution Steps
Basic Reset: Close all doors, lower the faulty window to the bottom, hold the up button for 3-5 seconds; then raise it to the top and hold for 3-5 seconds, attempting to restore the initialization of the control module.
Physical Cleaning: Check if there are any foreign objects in the glass guide slot, wrap a wet towel around a chopstick to clean the dirt; if the rubber strip is dry, apply a small amount of silicone grease or a dedicated lubricant (avoid using oil-based lubricants that may absorb dust).
Listening for Sound Identification: If you hear the motor running but the glass does not move when pressing the switch, it is usually a mechanical failure of the up and down motor (such as a broken steel wire rope); if there is no sound and no current sound, prioritize checking the fuse and the power supply line of the motor.
Temperature Test: If the motor overheats and stops after continuous operation, wait for 15-20 minutes to cool down before trying again; if it recovers, it indicates that the motor has overheating protection or is overloaded.
Maintenance Suggestions
If the troubleshooting fails or involves motor replacement or disassembly of the up and down assembly, it is recommended to handle it at a professional repair shop. The interior panel of the door needs to be disassembled and the glass sealingity needs to be re-adjusted. Some models (such as Tesla and other electric vehicles) require resetting the window parameters using a dedicated diagnostic tool. Do not perform any forceful or violent operations to avoid damaging the anti-pinch sensor.
