What is the seat belt buckle assembly for the left rear seat of the car?
The left rear seat belt buckle assembly is the fixed locking interface for the rear left passenger's seat belt, a key component of the passive safety system, used to lock with the seat belt tongue to effectively restrain the occupant during a collision.
Core composition and function

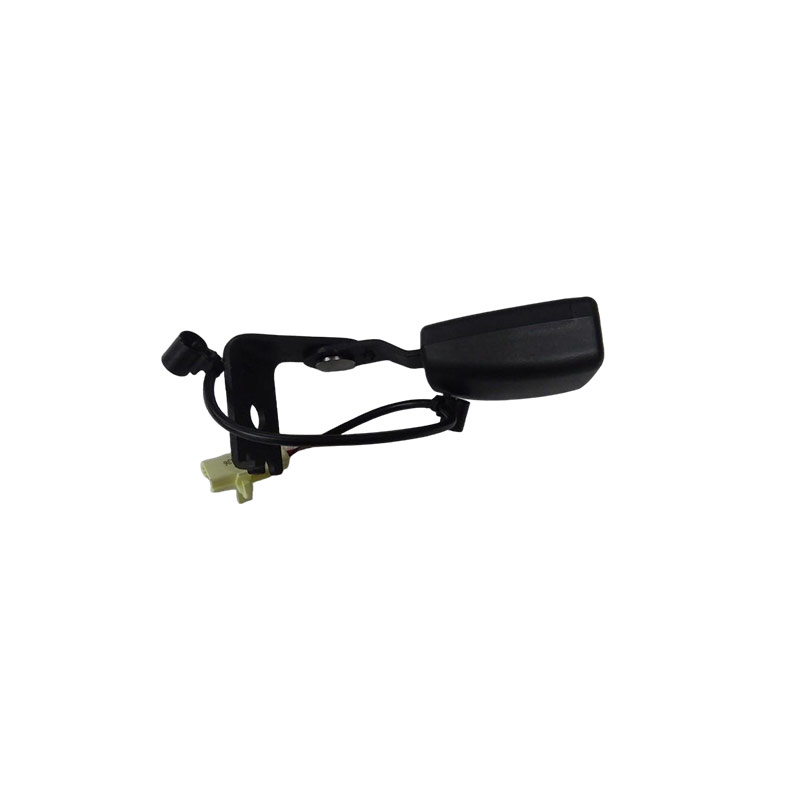

Basic structure: Usually consists of a metal base (fixed to the seat frame or vehicle body), an internal locking mechanism (including springs, lock tongues/springs), and an external plastic housing, with a red release button on the housing.
Main function: Receives and locks the metal tongue at the end of the seat belt, bearing huge tension during sudden braking or collision, preventing the occupant from moving forward; when not fastened, it will trigger the dashboard seat belt not fastened warning light or buzzer.
Position characteristics: Located at the seam between the left rear seat cushion and backrest or on the side of the seat, some models may be hidden under the seat cover or need to be pried open to find it. Notes for Attention
Prohibition on Using "Fake Buckles": There are inferior "safety belt snap-on clasps" available on the market that are used to mute the alarm sounds. These products have no locking strength and will fail to provide protection during a collision, constituting illegal and extremely dangerous behavior.
Maintenance Advice: If there is jamming, inability to lock, or malfunction of the buttons, directly replace the original factory components. Do not disassemble for repair as it may cause the strength to decrease and lead to safety hazards.
The core function of the left rear seat safety belt buckle assembly is to lock the safety belt tongue, fixing the occupant to the seat, and reducing injury risks during collisions or sudden braking through body restraint.
Specific Functions:
Mechanical Locking and Fixation: As the end anchor point of the three-point safety belt, it locks the tongue through the internal locking mechanism, ensuring that the safety belt does not detach under force, and dispersing the impact force to the pelvic and chest bones.
Signal Triggering and Warning: The internal microswitch sends a signal to the vehicle ECU when the tongue is not inserted, triggering a "safety belt not fastened alarm" (sound or dashboard indication) to urge the occupant to wear it properly.
System Integrity Assurance: When working with the tauter, it ensures the smooth retraction of the safety belt in non-emergency situations and rapid locking in emergency moments, maintaining the overall effectiveness of the restraint system.
Note: This component is a passive safety critical part. It is strictly prohibited to use "safety belt snap-on simulator" or other cheating accessories to mute the alarm. Otherwise, the safety system will fail and bring great risks.
Left rear seat safety belt buckle failures are often caused by foreign object blockage or internal mechanical wear. They involve driving safety. It is recommended to prioritize cleaning. If the structure is damaged, replace the assembly directly.
Quick Self-check and Temporary Repair
Clear Foreign Objects: Check if there are dust, paper scraps, or beverage residues in the socket. Use a flashlight to illuminate and carefully remove the debris with non-metal tools (such as toothpicks, plastic tweezers); spray a small amount of "high-concentration alcohol" or dedicated electronic cleaner, repeatedly plug and unplug the tongue piece to dissolve oil stains and evaporate and dry.
Lubricate Moving Parts: If the buttons are stuck or difficult to press, drop a small amount of "silicone-based lubricant" (avoid using ordinary engine oil as it may adsorb dust) into the lock gap, and repeatedly press to test if the elasticity is restored.
Confirm Interface Compatibility: For some models, the left rear seat buckle positions are concealed or easily confused. Confirm that it is not mistakenly inserted to the right or other non-corresponding interface, and check if there are coins or other hard objects blocking the base causing displacement in the seat gap.
Must Replace Situations
If any of the following situations occur, attempting to repair it yourself is extremely risky. Do not forcibly use it; immediately replace the component:
Locking Failure: Unable to "click" lock or easily detach when pulled, indicating a broken internal spring or worn metal tongue.
Physical Damage: Cracked shell, brittle plastic parts, or deformed metal components, and adhesive bonding cannot ensure the strength during a collision.
Circuit Abnormality: If the vehicle is equipped with a safety belt not fastened alarm, and the fault is accompanied by the constant illumination of the dashboard airbag/safety belt fault light, it may involve sensor line problems, requiring professional diagnosis.
Maintenance Advice and Cost Reference
Professional Replacement: Safety belts are passive safety core components. Removal requires removing the seat cushion and side trim, and reconnecting the sensor wiring. It is recommended to go to a 4S store or a reputable repair shop to ensure torque standards and circuit normality.
Accessory Selection: Be sure to purchase model-matched original or certified brand parts.
Safety Warning: Do not use ropes to bind or homemade fixation devices as a substitute. In an emergency collision, it is very likely to fail and cause secondary injuries.
