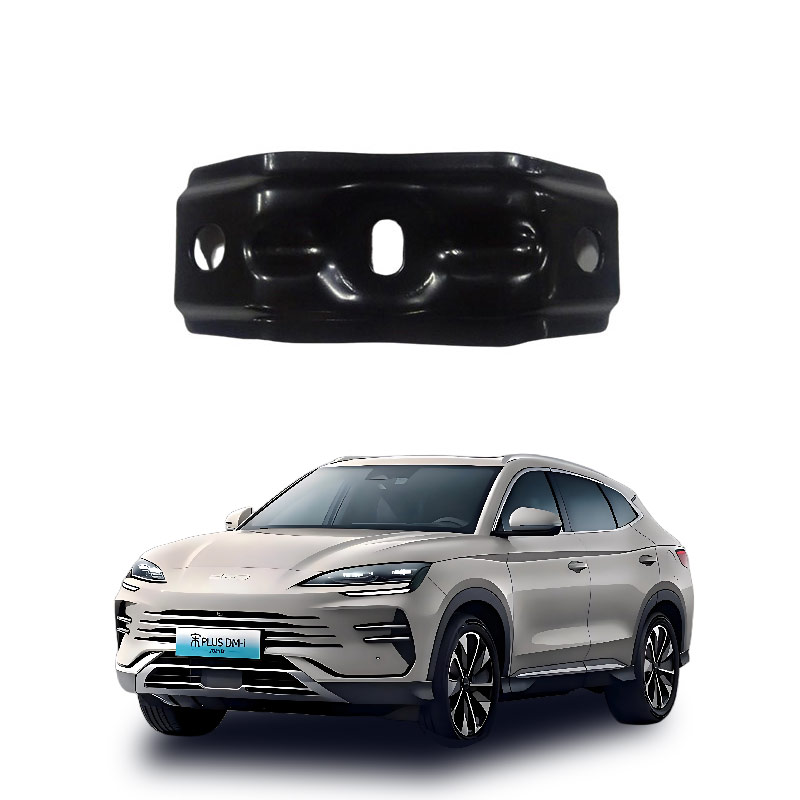

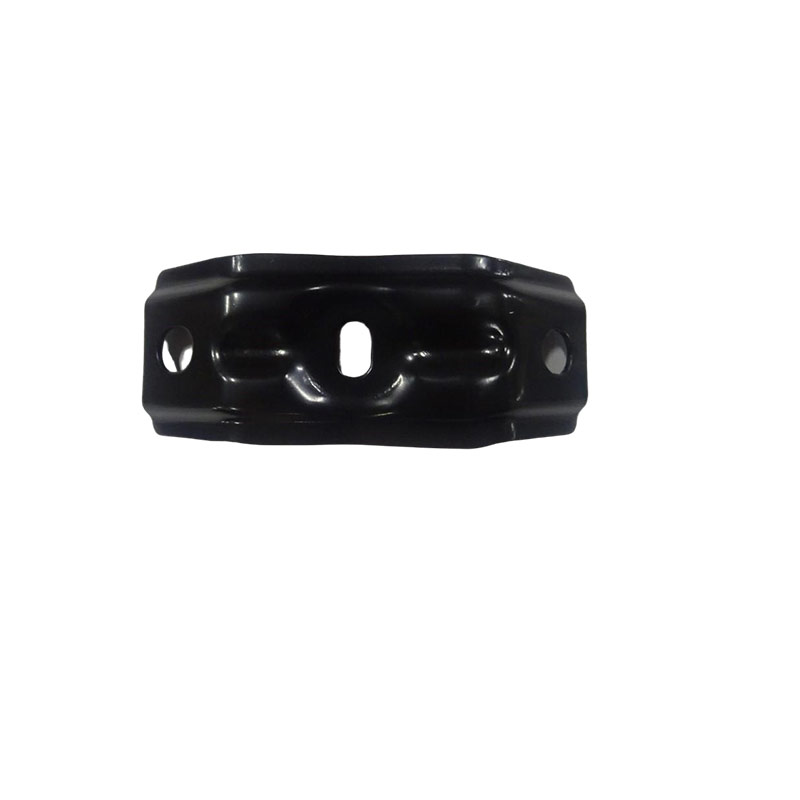

What is the car guard plate reinforcement plate - bracket?
The car guard plate reinforcement plate - bracket is a connecting and supporting component in the chassis protection system. It mainly refers to a metal or high-strength plastic component used to fix the engine or chassis guard plate and enhance the structural rigidity of the guard plate. It is not a single part and usually includes two meanings: "installation bracket" and "internal reinforcement ribs/plates of the guard plate":
Core definition
Installation bracket: A transitional piece connecting the reserved holes in the vehicle body chassis and the guard plate. For some models (such as the Volkswagen series), due to the special structure of the chassis, the original factory did not provide screw holes for the guard plate. Additional special brackets need to be installed to fix the guard plate.
Reinforcement plate/rib: The three-dimensional protruding structure or additional metal plate on the guard plate. It disperses the road impact force through a similar principle of building beams and columns, preventing the guard plate from cracking or deforming due to excessive force at a single point, and reducing the resonance noise during driving. Main function
Stability fixation: Ensure that the guard plate does not loosen or fall off on bumpy roads, and avoid abnormal sounds.
Enhanced rigidity: Disperse the local impact force to the entire surface of the guard plate, protecting key components such as the engine oil pan and transmission from direct impact.
Optimized stress distribution: Add reinforcing elements at weak connection points of the guard plate to enhance the overall impact resistance while maintaining lightweight.
Common materials and scenarios:
Material: Mostly made of steel, aluminum alloy or high-strength engineering plastics. They need to match the material of the guard plate to prevent electrochemical corrosion.
Applicable scenarios: Often seen when installing third-party guard plates (if the original vehicle does not have corresponding brackets), or in high-performance guard plate designs (with built-in reinforcing ribs to enhance the protection level). If the vehicle's original factory already has an integrated guard plate, this component is usually integrated within and does not need to be replaced separately.
In short, it is the "skeleton" and "joint" of the guard plate, responsible for firmly fixing the guard plate on the vehicle and making it harder and more resistant to impact.
The core function of the guard plate reinforcement plate and bracket is to enhance the rigidity of the chassis protection structure, disperse impact forces, and ensure the stable installation of the guard plate, preventing deformation or detachment of the guard plate due to single-point force. Core function
Distributing impact loads: By using three-dimensional ribs or support rods, the concentrated force generated by the impact and sinking of road stones is dispersed over the entire surface of the guard plate and the main beam of the vehicle body, preventing local cracking or dents.
Enhancing structural rigidity: It compensates for the insufficient stiffness of single-layer guard plates (especially resin or thin aluminum plates), reduces resonance noise during driving, and improves the overall solidity of the chassis.
Stable connection and fixation: As the "framework" between the guard plate and the vehicle body, it firmly locks the guard plate onto the subframe or longitudinal beam to prevent the guard plate from loosening, making abnormal sounds or even falling off in bumpy road conditions.
Protecting key components: It indirectly protects the engine oil pan, transmission, and new energy battery pack, avoiding damage to core components caused by hard objects directly penetrating the guard plate.
Common application scenarios
Reinforced rib design: Commonly found inside aluminum-magnesium alloy or plastic-steel guard plates, forming a supporting system similar to building beams and columns, taking into account both lightweighting and impact resistance.
Independent bracket reinforcement: Commonly seen in off-road modification scenarios, using metal tubular brackets to secure the guard plate to the main beam of the vehicle body, replacing the weak fasteners of the original vehicle to cope with extreme off-road conditions.
If it is for daily urban commuting, the original factory plastic guard plates usually do not require additional brackets; if one often travels on unpaved roads or has already installed metal guard plates, it is recommended to check if a strengthened structure is equipped to ensure the effectiveness of protection.
