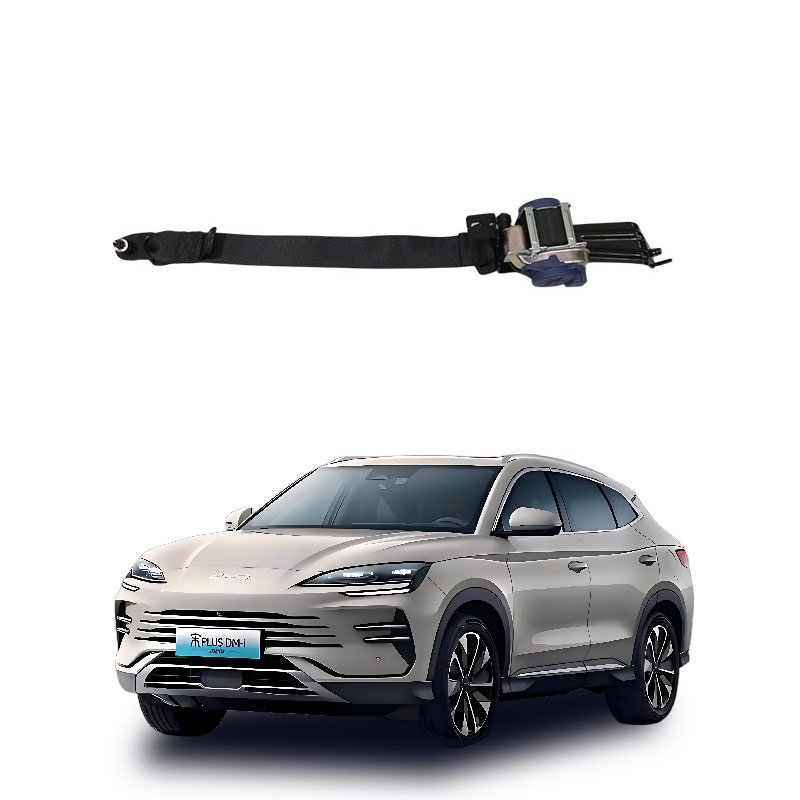

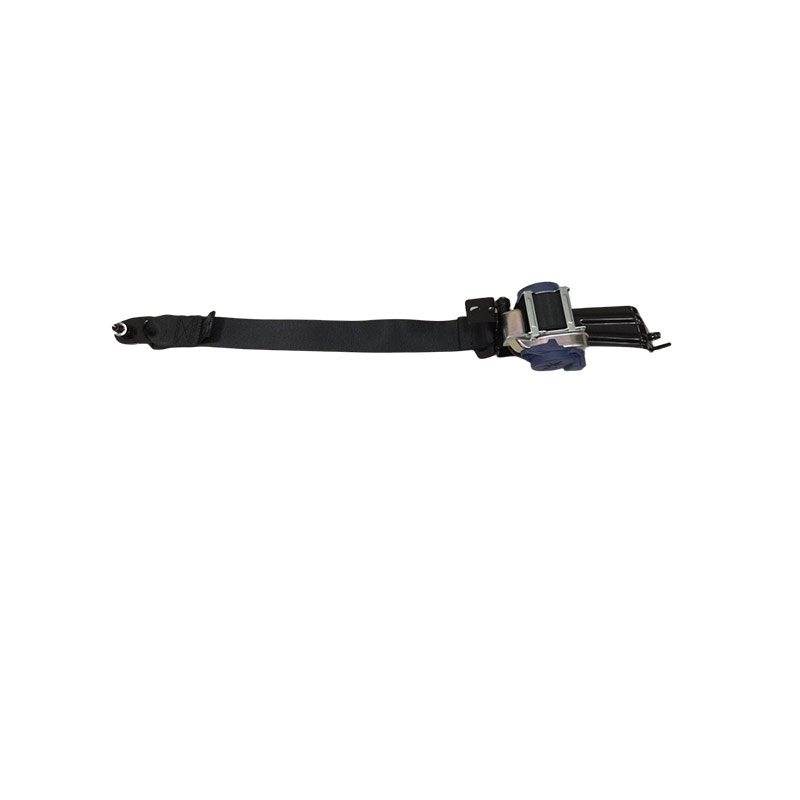

What is the left rear seat safety belt assembly of the car?
The left rear seat belt assembly of a car typically refers to the left rear three-point seat belt assembly, which is the core passive safety device for ensuring the safety of the left rear passenger. It is mainly composed of the following core components:
- High-strength webbing: Made of synthetic fibers such as polyester, it directly restrains the passenger's body and absorbs the impact energy from the collision.
- Retractor: Installed on the vehicle body or seat structure, it contains springs and locking mechanisms (such as centrifugal clutches). It is freely adjustable when not in use and locks the webbing instantly during emergency braking or a collision.
- Buckle and tongue: The buckle is fixed to the side of the seat or the floor, and the tongue connects to the end of the webbing. They are inserted and fixed to achieve a secure connection. Pressing a button can quickly unlock.
- Height adjuster: Located near the B-pillar or C-pillar, it allows for up and down sliding to adjust the height of the shoulder strap outlet to accommodate different height passengers.
- Pre-tensioner and force limiter (for high-end models): During a collision, the pre-tensioner instantly tightens the webbing to eliminate slack and eliminate the risk of excessive displacement due to inertia; the force limiter releases the tension moderately when the force is too great to protect the chest from excessive compression.
This assembly forms a triangular restraint structure through three fixed points (two on the vehicle body/floor and one on the pillar), which is consistent with the principle of the front seat belt, but is specifically installed for the left rear seat. If replacement or repair is needed, specific part numbers for the corresponding model (such as some models containing "left rear" or "REAR LEFT" markings) should be matched. It is recommended to query the compatible models through official channels.
The core function of the left rear seat belt assembly is to restrain the movement of the passenger during a collision or emergency braking, reducing secondary collision injuries by absorbing impact energy. It is the core defense line of the rear passive safety system.
Core protective functions
- Inertial restraint and fixation: When the vehicle experiences a collision or sudden braking, the retractor locks instantly, firmly fixing the passenger to the seat, preventing them from being pushed forward against the windshield, front seat, or other hard objects due to inertia.
- Energy absorption and buffering: When the webbing is subjected to force, it undergoes a slight stretch deformation, combined with the force limiter mechanism, to extend the force application time and distribute the impact force on the chest and abdomen, avoiding rib fractures and other compression injuries.
- Coordinated airbag protection: Ensuring that the passenger remains within the effective protection range of the airbag to prevent additional injuries caused by displacement when the airbag pops out.
- Anti-swing-out protection: In cases of rollover or severe side impact, preventing the passenger from being ejected from the vehicle or experiencing severe lateral displacement collisions within the cabin.
The component's collaborative working mechanism
The left rear seat belt usually functions through the coordinated work of the following components:
- Webbing: Made of high-strength nylon/polyester fibers, it directly provides restraint force and absorbs part of the kinetic energy.
- Pre-tensioner: Instantly pulls the webbing back during a collision, eliminating slack and ensuring the passenger enters a protected position immediately.
- Force limiter: When the tension exceeds the threshold (such as 1.5kN-2.5kN), it automatically releases a small amount of webbing to reduce the compression injury to the chest.
- Buckle and retractor: The buckle achieves quick fastening and unfastening, and the retractor determines whether to lock based on the pulling speed or the vehicle's deceleration.
Note: The left rear seat belt is usually a three-point belt (shoulder strap + waist strap), and it is necessary to ensure that the shoulder strap crosses the middle of the chest and the waist strap adheres closely to the hip bone. Incorrect wearing (such as placing the shoulder strap under the armpit) will result in protection failure or even neck injury.
