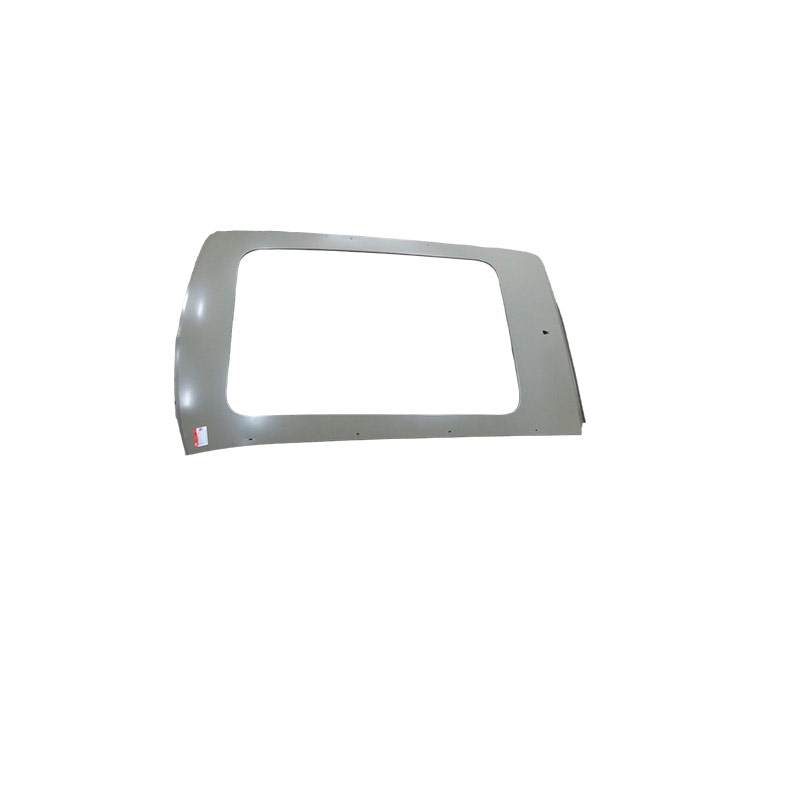

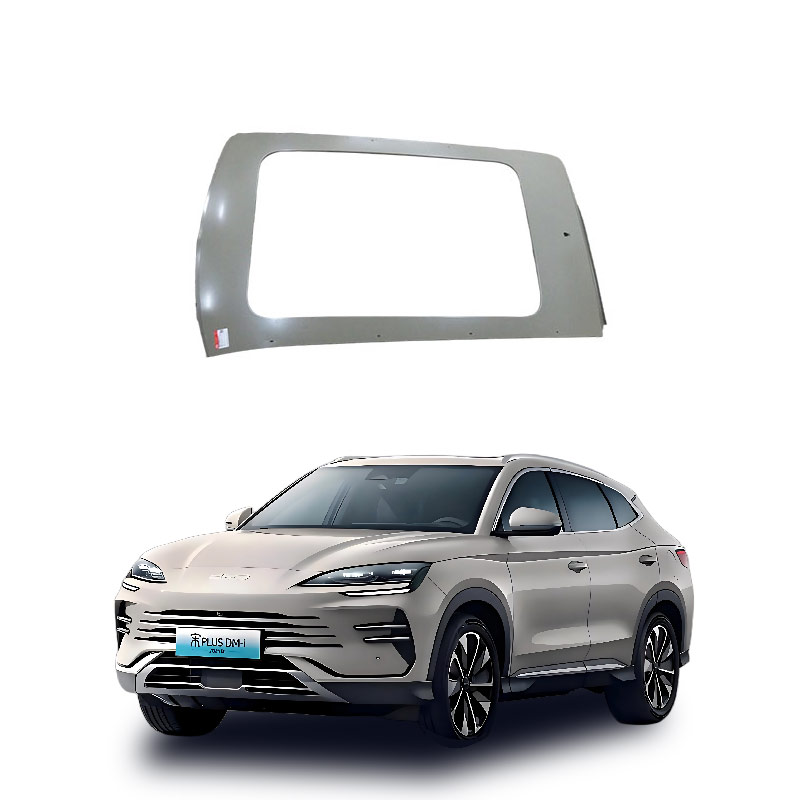

What is the roof panel of the car roof assembly - the sunroof panel?
"Car roof assembly - Sunroof panel" usually refers to the glass panel component (including the frame, sealing strips, and drive connection structure) installed in the roof sunroof assembly. It is a core external component of the sunroof system that is directly responsible for light collection, ventilation, and waterproofing.
Core definition and composition
Essence: It is the "lid" of the sunroof, mostly made of tempered glass or laminated glass. Some models use composite materials such as polycarbonate. It is connected to the roof frame through sliding rails or hinges.
Composition: It not only includes the transparent glass body but also integrates water drainage channels, sealing strips, sensor contacts for preventing occlusion, and mechanical interfaces linked to the motor. It is a key structural component of the roof assembly.
Distinguishing concepts: Please do not confuse it with the "sunroof sunshade/curtain" on the inner side, which is a soft or hard barrier located on the inner side of the glass for shading, while "sunroof panel" specifically refers to the outermost rigid covering piece.
Main functions
Basic protection: Provides roof structural integrity, has waterproof, dust-proof, sound insulation, and impact resistance capabilities, ensuring driving safety.
Environmental regulation: Cooperates with the opening mechanism to achieve ventilation and natural lighting. Some high-end panels have heat insulation and UV protection coatings.
Aerodynamics: The design needs to meet the requirements of wind resistance. At high speeds, it reduces wind noise and prevents airflow disorder.
If maintenance or component procurement is involved, "sunroof panel" is usually sold as a complete assembly. Replacing the glass alone requires professional equipment to ensure sealing, otherwise, it is prone to water leakage or abnormal sounds.
The "sunroof panel" in car roof assembly usually refers to the "sunroof glass panel" and its accompanying "sunshade/heat insulation cover plate". The two work together, and their core functions are as follows: Core function
Lighting and View Expansion: Transparent glass panels introduce natural light, eliminating the oppressive feeling inside the vehicle and providing an open view above, enhancing the psychological comfort of passengers.
Sunshade and Heat Insulation Protection: Built-in or external sunshades (curtains) are used to block direct sunlight, reducing UV damage and slowing down the temperature rise inside the vehicle, avoiding driver glare interference.
Ventilation and Air Exchange Assistance: Combined with the opening (upward tilting or horizontal sliding) of the glass panels, it efficiently expels hot air, smoke or moisture from the vehicle using the negative pressure principle of the roof airflow, with much lower wind noise than side windows.
Structural and Safety Functions
Aerodynamic Flow Guidance: Some front ends of the roof panels are designed with flow guiding plates to optimize the roof airflow, reducing wind noise and air resistance at high speeds, and preventing resonance.
Emergency Escape Channel: In case of vehicle immersion or deformed doors preventing opening, the roof can serve as an independent emergency exit. Some models support manual or electric window-breaking/escape.
Structural Reinforcement: Modern roof panels are surrounded by high-strength steel frames, and the glass panels themselves also participate in the rigidity support of the roof, without affecting or even enhancing the roof's resistance to pressure through reinforcing components.
Note: If referring to "sunshade", its sole core function is to block sunlight and heat; if referring to "glass panel", it has multiple functions including light transmission, sealing, ventilation, and escape. Regular cleaning of the tracks and drainage holes is necessary to prevent leakage.
"Roof Assembly - Fault of the Sunshade Panel" usually refers to mechanical or electrical failures caused by the collapse or detachment of the sunshade panel or the misalignment of the roof glass and frame assembly. The main causes are aging of the adhesive layer, foreign objects getting stuck in the tracks, or abnormal motor control modules.
Common Fault Types and Causes
Sunshade Panel Inner Liner Collapse/Detachment: Long-term exposure to sunlight leads to the aging and deterioration of the adhesive layer and sponge, causing the fabric to lose its stickiness and sag or separate, common in vehicles over 5 years old.
Roof Unable to Open/Clog: Dust, sand, or leaves accumulate in the sliding track, increasing friction; or the drive motor is damaged, the circuit is not properly connected, and the power transmission is interrupted.
Roof Leakage/Strange Noise: Drainage holes are blocked, causing water accumulation and backflow; the sealing rubber strips age and crack; insufficient lubrication of the tracks generates frictional noise.
Misalignment/Unevenness: Manufacturing tolerances, installation errors, or body deformation cause the roof glass to be uneven with the roof surface, possibly accompanied by sealing failure.
Quick Troubleshooting and Handling Suggestions
Check fuses and switches: First, confirm if the roof fuse is blown, test if the switch has an electrical response, and rule out basic circuit problems.
Clean and lubricate the tracks: Open the roof, use a damp cloth to clean the gaps in the sliding track, remove old grease, and apply special "roof lubricant" (avoid using engine oil, as it is prone to stick to dust).
Initialize Settings: If the anti-cling function of the roof is triggered mistakenly or the position is incorrect, try long-pressing the close button for "system reset/initiation" (refer to the vehicle manual for specific operations).
Sunshade Panel Repair: If only the inner liner is detached, remove the liner, clean the remaining glue, and use special strong glue to reattach the fabric. This is much cheaper than replacing the entire assembly.
Maintenance Guidelines
Minor Faults: Cleaning the tracks, lubricating, or resetting can solve most jamming problems.
Serious Faults: Involving motor replacement, circuit repair, or structural assembly errors, it is necessary to go to a professional repair shop to use a diagnostic tool to read fault codes and disassemble for inspection and repair.
Note: If there are signs of leakage, immediately check if the drainage hose is loose or clogged to prevent water erosion of the interior circuits and Interior.
