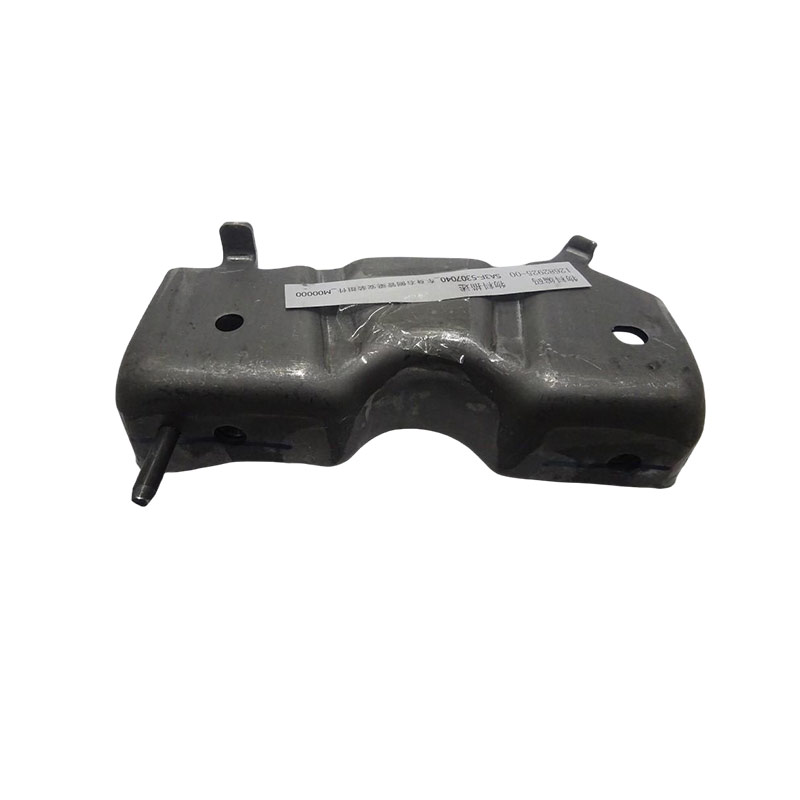

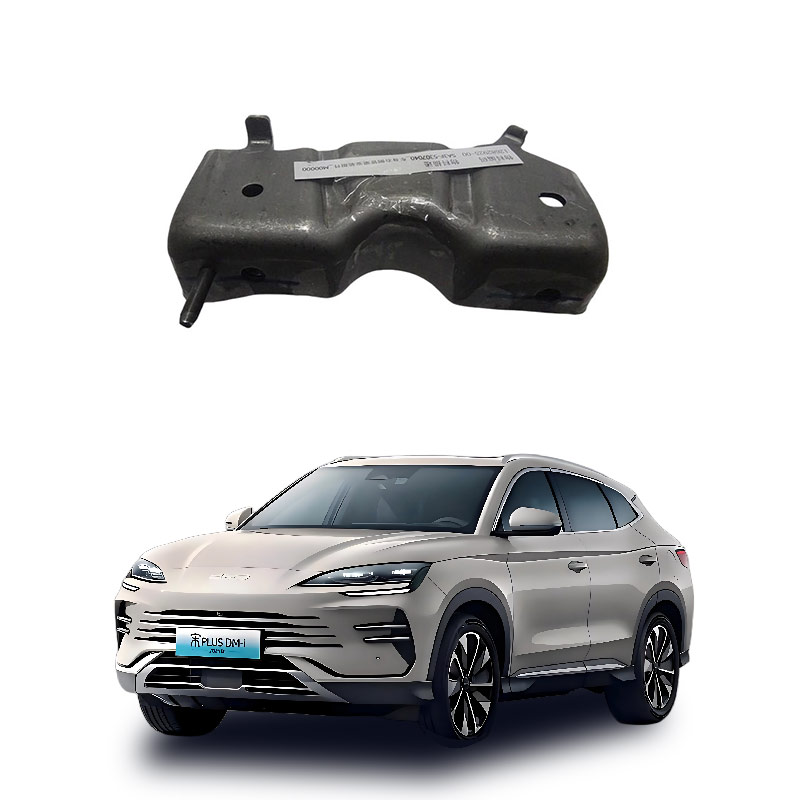

What is the component for installing the right side beam of the car?
The right side pipe beam installation assembly of a vehicle typically refers to the installation bracket assembly on the right side of the instrument panel pipe beam (CCB), which is a key load-bearing component connecting the pipe beam body to the vehicle frame.
Core definition and function
Main components: mainly consists of the right side installation bracket body, fixing bolts/bracing points, and possibly shock-absorbing rubber pads. In some designs, it may also include wire harness clips or air conditioning pipe support positions.
Main function: securely fixes the instrument panel pipe beam (IP Beam) to the vehicle A-pillar, firewall, or side panel structure, ensuring the stability of the instrument panel during a collision and transferring part of the load to enhance the vehicle's torsional stiffness.
Position characteristics: located on the right side of the cockpit interior, usually connecting the right end of the pipe beam to the right front longitudinal beam or the lower area of the A-pillar.
Common application scenarios
Passenger car interiors: most commonly found at the right side fixing point of the instrument panel pipe beam assembly, responsible for supporting the instrument panel structure on the passenger side.
Commercial vehicles/heavy trucks: in heavy trucks, it may also refer to the right support component of the top or rear pipe beam of the cab, used to strengthen the strength of the cab frame.
Non-universality: This component is a vehicle-specific part. The part numbers, installation holes, and load-bearing designs vary greatly among different models, and it cannot be used across different models. Notes for Attention
If you need to purchase or replace, you must provide the accurate model year and original factory part number (such as the class number O0020705 in Haizhou parts), because "right side" is defined relative to the direction of vehicle movement, and left and right components are usually asymmetrical.
The "right side pipe beam installation component" of the car is not a single universal standard part. Its specific function depends on the vehicle type (passenger car or commercial vehicle) and the installation position (dashboard, chassis or frame). Based on industry terminology and parts market data, the main functions are as follows: Core function
Structural support and fixation: As a rigid framework, it is used to install and fix the steering column, instrument panel assembly, air conditioning piping, or chassis suspension components, ensuring that each system maintains precise relative positions during driving.
Load transfer and dispersion: The vibration, shock or collision forces received on the right side are transferred to the main structure of the vehicle body to avoid stress concentration that could cause a single component to break.
Passive safety protection: In the event of a side or frontal collision, it assists in absorbing and dispersing energy, limiting the deformation of the passenger compartment and protecting key components such as the steering column from fatal intrusion.
Common application scenarios
Instrument panel beam assembly (common in passenger vehicles)
Located inside the cockpit, it mainly bears the steering wheel steering column, airbag module, and instrument assembly.
The focus of its function is on the anti-vibration stiffness and collision energy absorption, preventing the failure of the bracket during emergency braking or collision, which could cause component displacement and injury.
Chassis/fuselage beam assembly (common in commercial vehicles/ trucks)
Often seen in the chassis of heavy trucks (such as the "front/back right beam" of models like Foton and Sinotruk), it belongs to the secondary structure of the vehicle frame.
The focus of its function is on bearing heavy objects such as the engine, fuel tank or spare tire, enhancing the torsional stiffness on the right side of the frame, and preventing the frame from twisting due to long-term heavy loading. Notes for Attention
If this component deforms or the installation point cracks, it will cause abnormal noises during steering, loosening of the dashboard, incorrect wheel alignment, or abnormal noises from the chassis. Due to the safety structure involved, after damage, it is usually recommended to replace it rather than perform sheet metal repair, in order to restore the original strength and collision safety.
