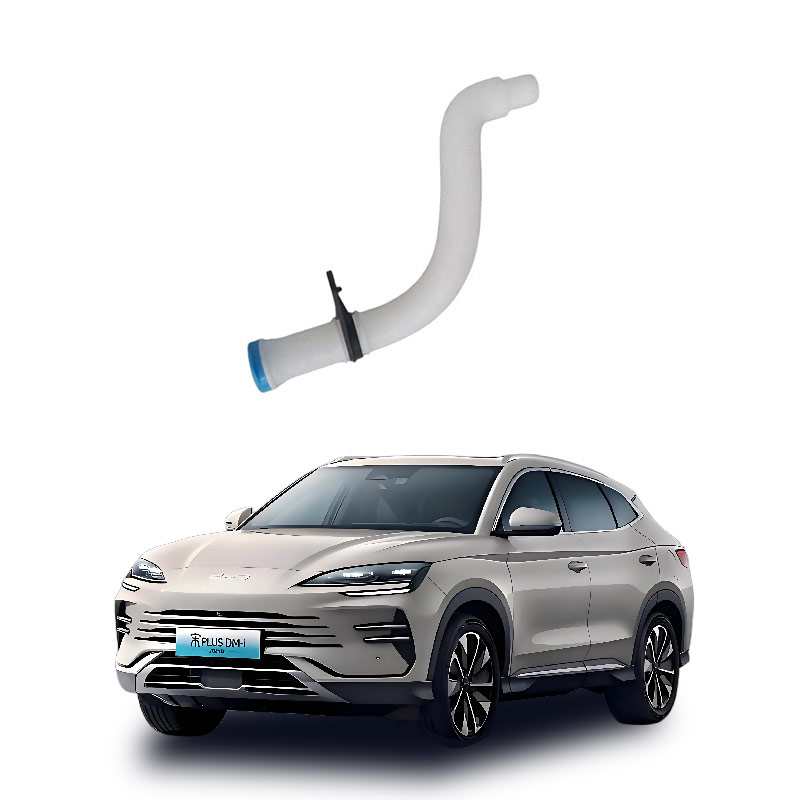

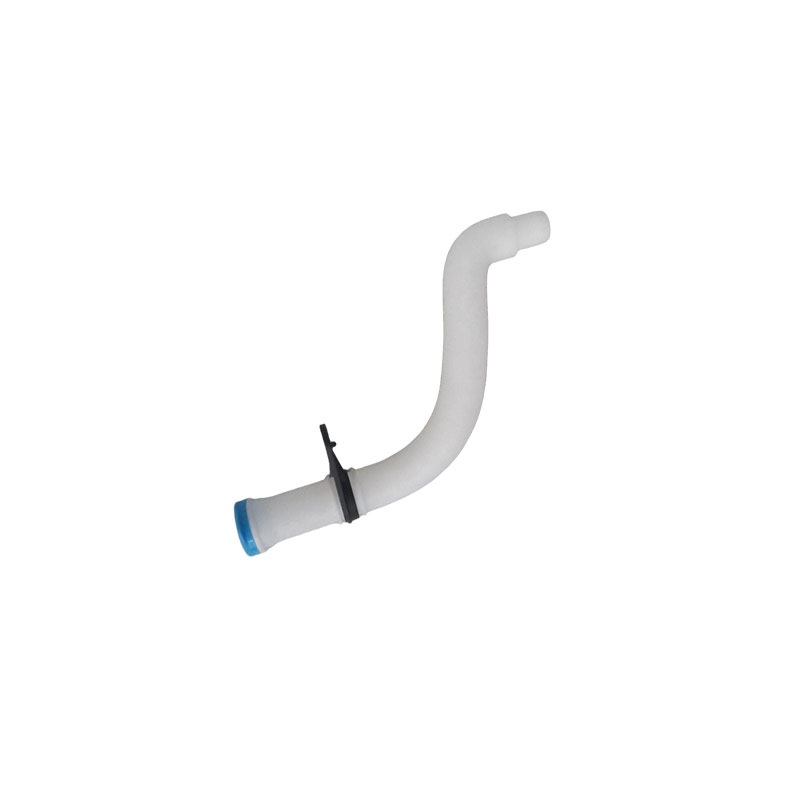

What is the car washing nozzle assembly?
The car wash nozzle assembly is a crucial transitional component in the windshield washing system, connecting the liquid storage tank body to the vehicle's filler port. It mainly performs functions such as liquid diversion, sealing and leak prevention, and structural fixation.
Core Components
Diversion Tube: The internal passage guides the washing liquid from the filler port into the storage tank or out of the tank (depending on the specific design, usually referring to the filling passage).
Nozzle Neck Sleeve: Located at one end of the diversion tube, it is used for rigid fixation with the vehicle's sheet metal or filler port flange to ensure stable installation.
Nozzle Neck Connection Unit: Located at the other end of the diversion tube, it is closely fitted with the tank body connection part through a coupling, clamping or threaded structure to achieve quick assembly and sealing. Main function
Sealing and Leak Prevention: Through the built-in sealing ring or special structural design, it prevents the washing liquid from spilling out during addition or when the vehicle is jolted.
Space Adaptation: Solves the problem of spatial misalignment between the installation position of the liquid storage tank and the filling ports on the engine hood/wing panel, optimizing the cabin layout.
Filter Protection: Some designs integrate a filtering mechanism at the neck to prevent impurities from entering the liquid storage tank, protecting the water pump and nozzle. This component is mostly made of engineering plastic and is a wear-prone part. If there are cracks or the sealing ring becomes old, it will cause the washing liquid to leak, and the entire part needs to be replaced.
The car washing nozzle assembly is a crucial transitional component that connects the liquid storage tank body and the vehicle's filling port. Its core function is to ensure the safe filling of the washing fluid and the sealing and guiding of the pipeline.
Its main functions include:
Guided filling: As a funnel-shaped channel, it guides the glass water to accurately enter the interior of the tank, preventing the liquid from splashing and contaminating other components in the engine compartment.
Sealing and leak prevention: Through an internal sealing ring or a snap-fit structure, it ensures a tight connection between the nozzle neck and the tank body, as well as between the nozzle neck and the vehicle mounting position, avoiding leakage caused by driving vibrations.
Structural support and fixation: In some designs, the nozzle neck sleeve is fixedly connected to the vehicle, performing the function of fixing the position of the tank body, reducing displacement or abnormal sounds caused by road bumps.
Filter protection: Some nozzle necks with integrated filtering mechanisms can intercept impurities, preventing large particles of contaminants from entering the storage tank and blocking the water pump or nozzle. In short, it is not merely a "water inlet", but rather a fundamental structural component that ensures the sealing, stability and cleanliness of the washing system.
The main faults of the car washing nozzle assembly include leakage at the filling port, inability of the windshield washer fluid to flow into the nozzle body or the breakage and detachment of the neck. The core reasons are mostly due to the aging of the sealing ring, loosening of the interface, or brittleness of the plastic parts.
Common Fault Phenomena and Causes
Excessive liquid leakage during filling: The O-ring at the connection between the nozzle neck and the nozzle body becomes hardened, deformed or lost, resulting in a failure of the seal; it could also be that the nozzle neck sleeve is loose from the fixing points on the vehicle body.
Backflow of windshield washer fluid or difficulty in filling: The internal guide pipe of the nozzle neck is clogged (with impurities, ice blockage) or the nozzle neck connection unit is deformed, hindering the smooth flow of the liquid into the reservoir.
Physical structure damage: Due to long-term stress or exposure to low temperatures, the plastic nozzle neck develops cracks or breaks, causing the assembly to lose its fixation or completely fail.
Troubleshooting and Repair Solutions
Check the sealing components: Remove the nozzle neck assembly and inspect whether the first and second sealing rings are intact. If aging, cracks, or loss are found, replace them with the same specification silicone sealing rings (do not use ordinary rubber, as it is prone to corrosion).
Tighten the connection structure: Confirm whether the nozzle neck sleeve is loose from the vehicle body fixing bolts, and check whether the clamps of the nozzle neck connection unit and the connection part of the nozzle body are in place. Reassemble to ensure there is no gap.
Clear the guide channel: If there is suspicion of internal blockage, remove the guide pipe and rinse it with warm water, or use a fine iron wire to gently clear it to avoid damaging the inner wall.
Overall replacement suggestion: If the nozzle neck body develops cracks or breaks, as the plastic part is difficult to repair and there is a risk of secondary leakage, it is recommended to directly replace the nozzle neck assembly or the entire washing nozzle assembly. Notes for Attention
Before winter maintenance, it is necessary to ensure that the antifreeze is not frozen. Forceful operation may cause the plastic parts to crack.
When disassembling or assembling, make sure to disconnect the vehicle power supply first to avoid accidental contact with the water spraying motor, which could cause a circuit short circuit.
If reconnection of the pipes is involved, it is recommended to use special clamps for fixation to prevent detachment due to vehicle vibration.
If there is still leakage after self-replacement, it may be accompanied by a failure of the pump seat seal at the bottom of the tank. It is recommended to go to a professional repair station for a pressure test.
